Daewoo Nubira II (1999-2003) hot in accy and on Wiring diagrams
This page contains all the electrical diagrams for the component. hot in accy and on, in which he is found in the car Daewoo Nubira II (1999-2003). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
hot in accy and on wiring diagram (1 of 2)
AUDIO REMOTE CONTROL SWITCH
AUDIO UNIT
BLK/WHT WIRE
BLU WIRE
BRN WIRE
CONTACT COIL
ENGINE COMPARTMENT FUSE AND RELAY BOX (LEFT SIDE OF ENGINE COMPT)
FUSE 1
FUSE 10
FUSE 9
GLASS AND ROOF ANTENNA
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ACCY AND ON
IGN
ILLUM
LEFT FRONT SPEAKER
LEFT REAR SPEAKER RIGHT REAR SPEAKER
LEFT TWEETER
LT BLU WIRE
ORG/ WIRE
PASSENGER COMPARTMENT FUSE BOX (BEHIND LEFT SIDE OF DASH)
RED WIRE
RIGHT FRONT SPEAKER
RIGHT TWEETER
WHT WIRE
YEL WIRE
Go to component -> Radio circuit -> HOT IN ACCY AND ON

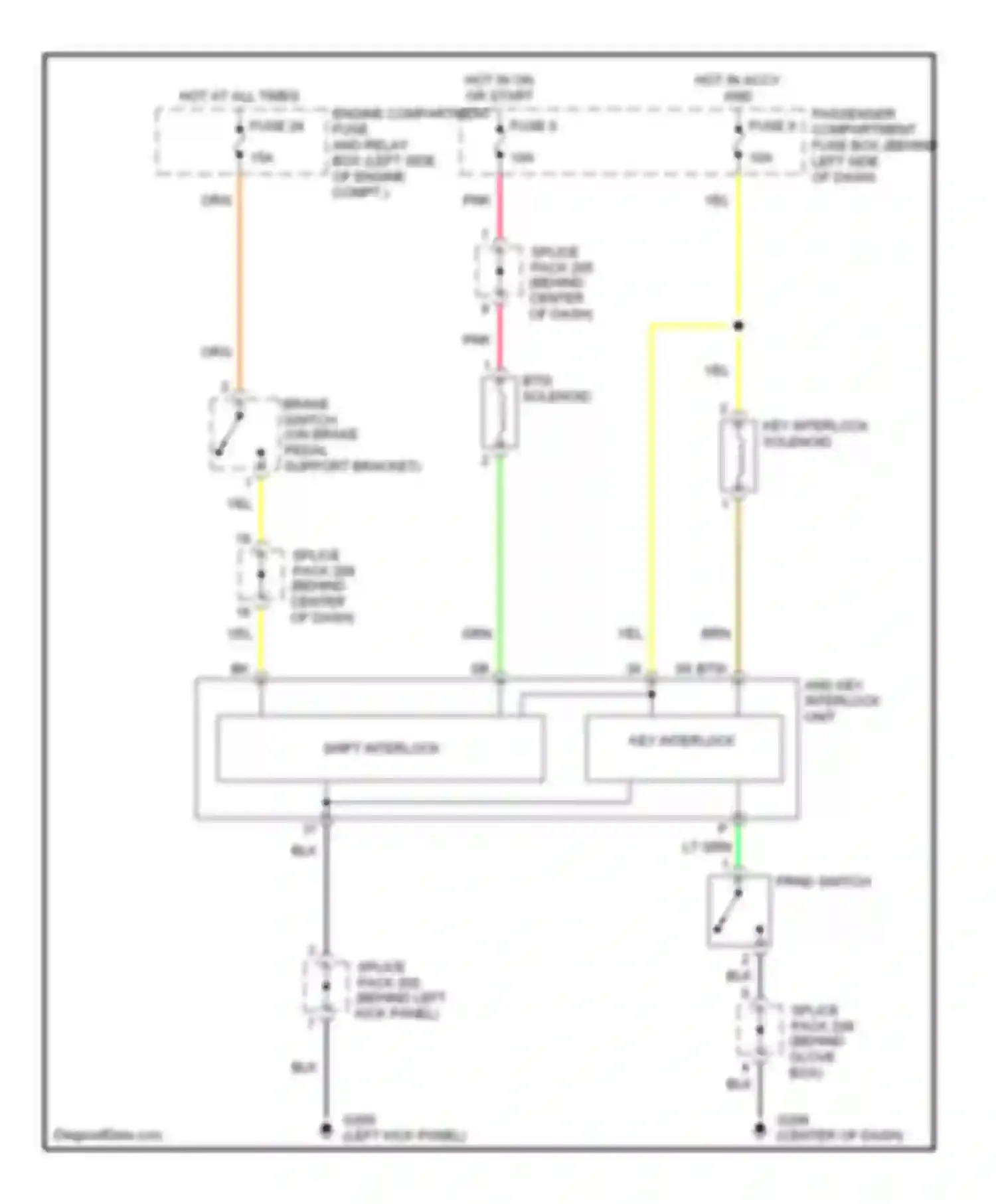

hot in accy and on wiring diagram (2 of 2)
BLK WIRE
BRAKE SWITCH
BRN WIRE
BTSI SOLENOID
ENGINE COMPARTMENT FUSE AND RELAY BOX (LEFT SIDE OF ENGINE COMPT)
FUSE 24
FUSE 5
FUSE 9
GRN WIRE
HOT AT ALL TIMES
HOT IN ACCY AND ON
HOT IN ON OR START
KEY INTERLOCK
KEY INTERLOCK SOLENOID
LT GRN WIRE
ORG/ WIRE
PASSENGER COMPARTMENT FUSE BOX (BEHIND LEFT SIDE OF DASH)
PNK WIRE
PRND SWITCH
SHIFT INTERLOCK
SK BTSI AND KEY INTERLOCK UNIT
SPLICE PACK 202
SPLICE PACK 205
SPLICE PACK 208
YEL WIRE
Go to component -> Shift interlock circuit -> HOT IN ACCY AND ON
