Daewoo Nubira II (1999-2003) electric outside rearview mirror switch Wiring diagram
This page shows the only wiring diagram for the component.electric outside rearview mirror switch, which is found in the car Daewoo Nubira II (1999-2003). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

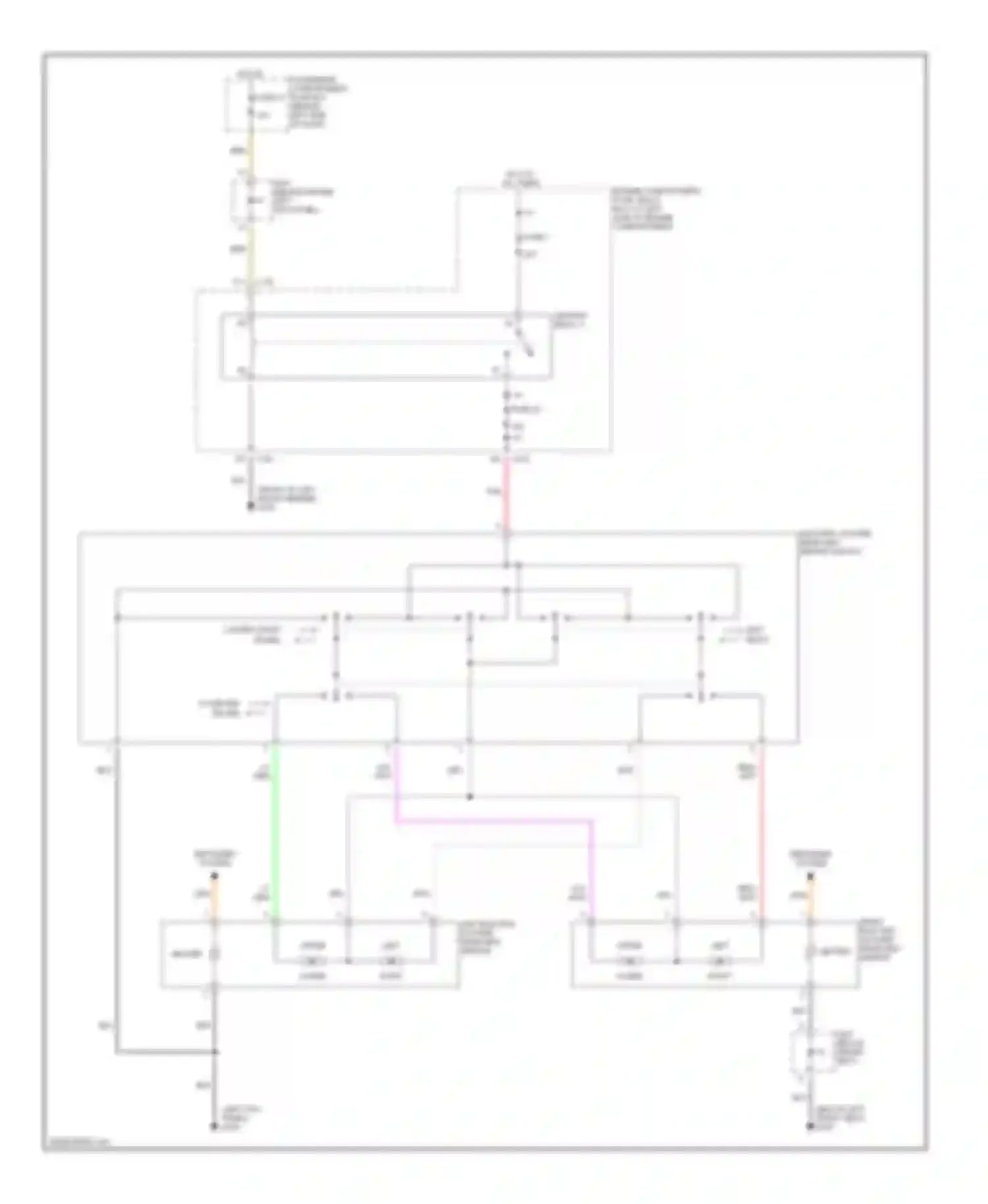

Wiring diagram electric outside rearview mirror switch (1 of 1)
BLK WIRE
BRN WIRE
CO-DRIVER DRIVER
DEFOGGER SYSTEM
ELECTRIC OUTSIDE REARVIEW MIRROR SWITCH
ENGINE COMPARTMENT FUSE, RELAY BOX (AT LEFT SIDE OF ENGINE COMPARTMENT)
FUSE 15
FUSE 32
FUSE 7
GRN WIRE
GRY WIRE
HEATER
HOT AT ALL TIMES
HOT IN ON
IGNITION RELAY 2
LEFT
LEFT ELECTRIC OUTSIDE REARVIEW MIRROR
LEFT RIGHT
LOWER
ORG/ WIRE
PASSENGER COMPARTMENT FUSE BOX (BEHIND LEFT SIDE OF DASH)
PNK WIRE
RED WIRE
RIGHT
RIGHT ELECTRIC OUTSIDE REARVIEW MIRROR
UPPER
UPPER HEATER
VIO WIRE
WHT WIRE
Go to component -> Power mirrors circuit -> ELECTRIC OUTSIDE REARVIEW MIRROR SWITCH
