Chrysler LHS II (1998-2001) sun sensor/ vtss set led Wiring diagram
This page shows the only wiring diagram for the component.sun sensor/ vtss set led, which is found in the car Chrysler LHS II (1998-2001). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

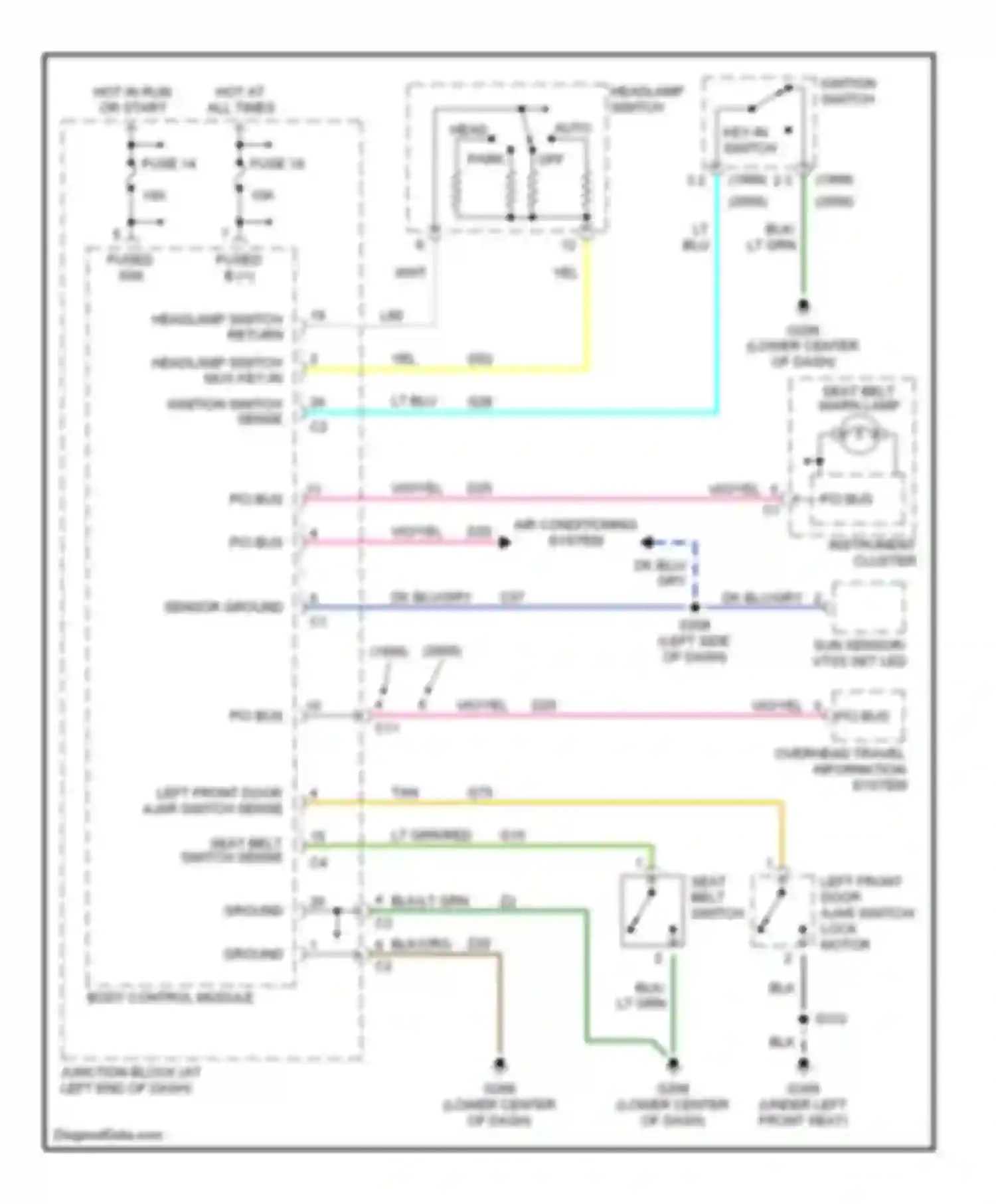

Wiring diagram sun sensor/ vtss set led (1 of 1)
AIR CONDITIONING SYSTEM
AUTO
BLK WIRE
BLK/LT GRN WIRE
BLK/ORG WIRE
BLU WIRE
BODY CONTROL MODULE
DK BLU WIRE
DK BLU/GRY WIRE
FUSE 14
FUSE 19
FUSED B (+)
FUSED IGN
GROUND
GRY WIRE
HEAD
HEADLAMP SWITCH
HEADLAMP SWITCH MUX KEY-IN IGNITION SWITCH SENSE
HEADLAMP SWITCH RETURN
HOT AT ALL TIMES
HOT IN RUN OR START
IGNTION SWITCH
INSTRUMENT CLUSTER
JUNCTION BLOCK (AT LEFT END OF DASH)
KEY-IN SWITCH
LEFT FRONT DOOR AJAR SWITCH SENSE
LEFT FRONT DOOR AJAR SWITCH/ LOCK MOTOR
LT BLU WIRE
LT GRN WIRE
LT GRN/RED WIRE
OVERHEAD TRAVEL INFORMATION SYSTEM
PARK OFF
PCI BUS
SEAT BELT SWITCH
SEAT BELT SWITCH SENSE
SEAT BELT WARN LAMP
SENSOR GROUND
SUN SENSOR/ VTSS SET LED
TAN WIRE
VIO/YEL WIRE
WHT WIRE
YEL WIRE
Go to component -> Warning system circuits -> SUN SENSOR/ VTSS SET LED
