Chrysler Crossfire I (2003-2007) wipe hi wiring diagram
This page shows the only wiring diagram for the component.wipe hi, which is found in the car Chrysler Crossfire I (2003-2007). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

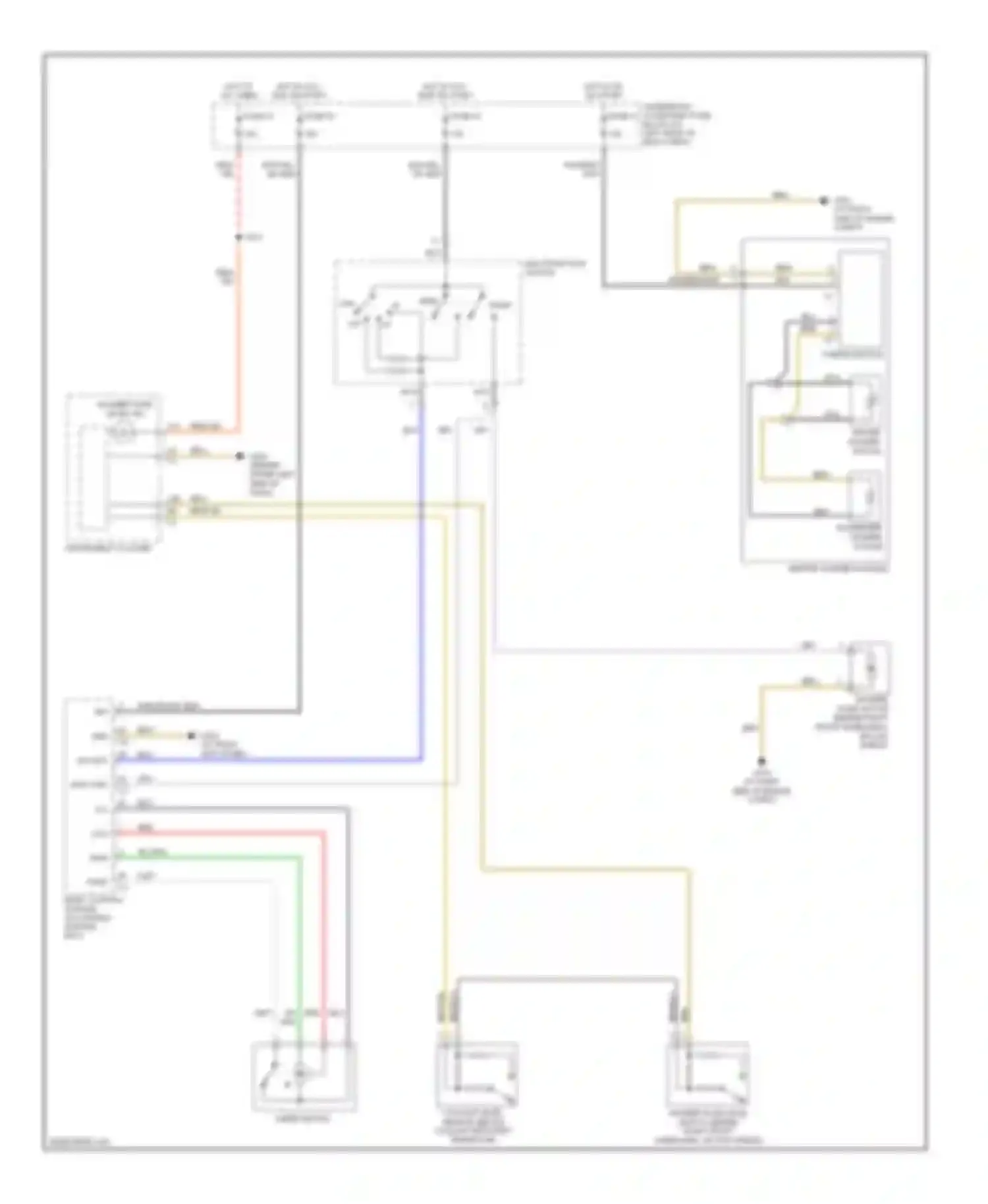

wipe hi wiring diagram (1 of 1)
BLK WIRE
BLK/YEL WIRE
BLU WIRE
BODY CONTROL MODULE (IN CONTROL MODULE BOX)
BRN WIRE
BRN/BLU WIRE
BRN/YEL WIRE
COOLANT LEVEL SENSOR (BELOW COOLANT RECOVERY RESERVOIR)
DK GRN WIRE
DRIVER WASHER NOZZLE
FUSE 12
FUSE 20
FUSE 32
FUSE 35
GRN WIRE
GRY WIRE
HEATED WASHER NOZZLES
HOT AT ALL TIMES
HOT IN ACC, RUN OR START
HOT IN ON OR START
IGN SW
INSTRUMENT CLUSTER
MTR CTRL
MULTIFUNCTION SWITCH
NCA WIRE
OFF
PARK
PASSENGER WASHER NOZZLE
PNK/RED WIRE
PNK/RED/WHT WIRE
PNK/YEL WIRE
PNK/YEL/DK GRN WIRE
RED WIRE
RED/YEL WIRE
SW MUX
THERMOSWITCH
UNDERHOOD ACCESSORY FUSE BLOCK (AT LEFT REAR OF ENG COMPT)
WASH
WASHER FLUID LEVEL IND
WASHER FLUID LEVEL SWITCH (BEHIND RIGHT FRONT
WASHER PUMP MOTOR
WHEELWELL SPLASH SHIELD)
WHT WIRE
WIPE HI
WIPER MOTOR
YEL WIRE
Go to component -> Wiper/washer circuit -> WIPE HI
