Chrysler Crossfire I (2003-2007) hot in run, acc or start Wiring diagrams
This page contains all the electrical diagrams for the component. hot in run, acc or start, in which he is found in the car Chrysler Crossfire I (2003-2007). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

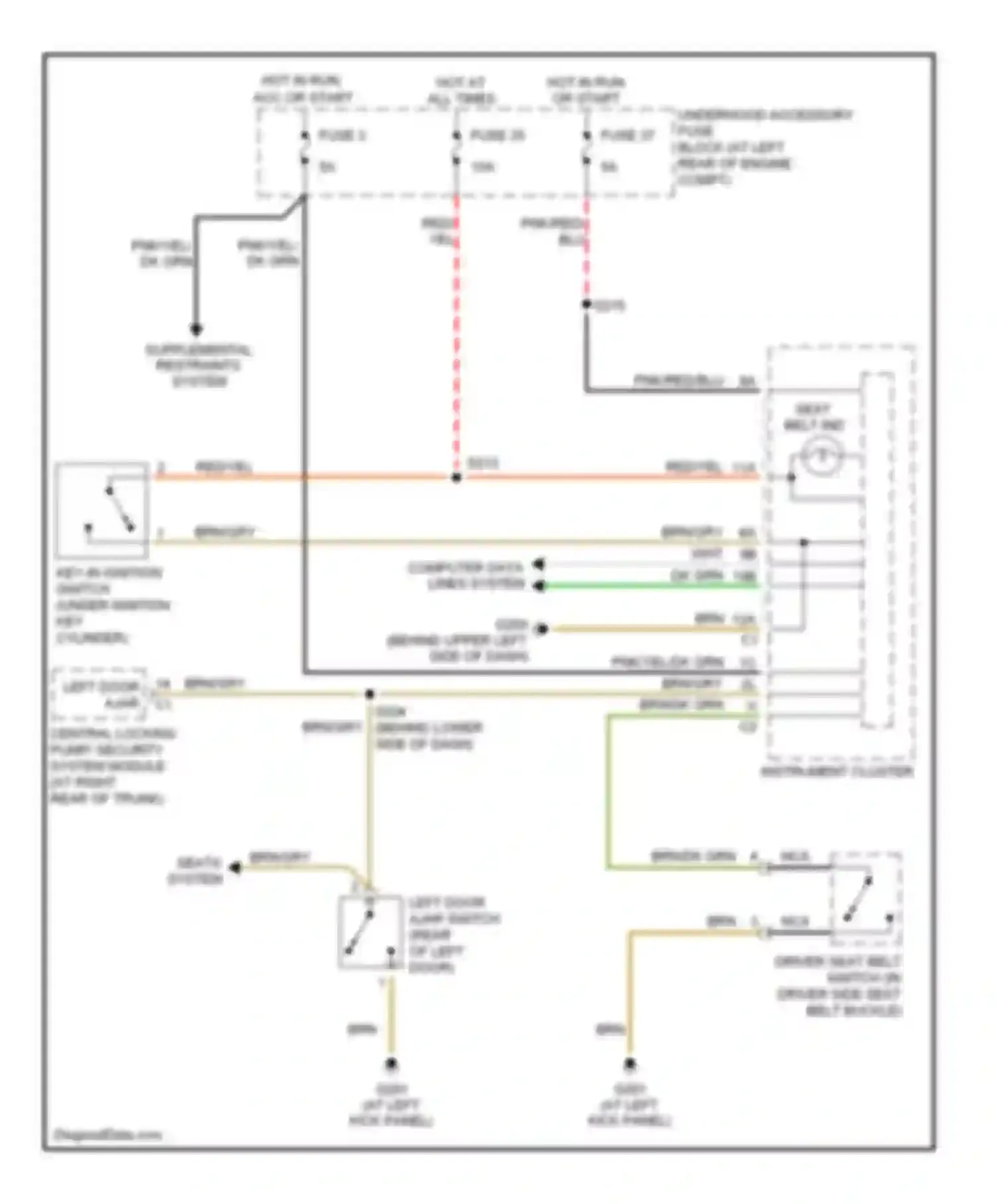

Wiring diagram hot in run, acc or start (1 of 2)
BLU WIRE
BRN WIRE
BRN/DK GRN WIRE
BRN/GRY WIRE
CENTRAL LOCKING PUMP/ SECURITY SYSTEM MODULE (AT RIGHT REAR OF TRUNK)
COMPUTER DATA LINES SYSTEM
DK GRN WIRE
DRIVER SEAT BELT SWITCH (IN DRIVER SIDE SEAT BELT BUCKLE)
FUSE 3
FUSE 35
FUSE 37
HOT AT ALL TIMES
HOT IN RUN OR START
HOT IN RUN, ACC OR START
INSTRUMENT CLUSTER
KEY IN IGNITION SWITCH (UNDER IGNITION KEY CYLINDER)
LEFT DOOR AJAR SW
LEFT DOOR AJAR SWITCH (REAR OF LEFT DOOR)
NCA WIRE
PNK/RED WIRE
PNK/RED/BLU WIRE
PNK/YEL WIRE
PNK/YEL/DK GRN WIRE
RED WIRE
RED/YEL WIRE
SEAT BELT IND
SEATS SYSTEM
SUPPLEMENTAL RESTRAINTS SYSTEM
UNDERHOOD ACCESSORY FUSE BLOCK (AT LEFT REAR OF ENGINE COMPT)
WHT WIRE
YEL WIRE
Go to component -> Chime circuit -> HOT IN RUN, ACC OR START
Wiring diagram hot in run, acc or start (2 of 2)
A/C HEATER CONTROL MODULE (BEHIND CENTER OF DASH)
BLK/BLU WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DATA LINK CONNECTOR (UNDER LEFT SIDE OF DASH)
DK GRN WIRE
FUSE 1
FUSE 35
FUSE 37
FUSE 9
FUSED B (+)
FUSED IGN SW OUTPUT LOW TIRE PRES WARNING IND GROUND
GRY WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOT IN RUN OR START
HOT IN RUN, ACC OR START
INSTRUMENT CLUSTER
PNK/RED WIRE
PNK/YEL WIRE
RED WIRE
RED/GRY WIRE
RED/YEL WIRE
SCI TRANSMIT
TIRE PRESSURE IND
TIRE PRESSURE MONITOR (AT TOP CENTER OF WINDSHIELD)
UNDERHOOD ACCESSORY FUSE BLOCK (AT LEFT REAR OF ENGINE COMPT)
WHT WIRE
YEL WIRE
Go to component -> Tire pressure monitoring circuit -> HOT IN RUN, ACC OR START
