Chevrolet Volt II (2015-2019) temp sig 7 Wiring diagrams
This page contains all the electrical diagrams for the component. temp sig 7, in which he is found in the car Chevrolet Volt II (2015-2019). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram temp sig 7 (1 of 2)
B+ VOLT
BATTERY ENERGY CONTROL MODULE
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BRN WIRE
BLU/GRY WIRE
BLU/RED WIRE
BLU/VIO WIRE
BLU/YEL WIRE
COMM CTRL
COMPUTER DATA LINES SYSTEM
COOLANT RESS PMP FUSE
DISPLAY
ELECTRIC PUMP FUSE
FEEDBACK SIG
GMLAN
GRN WIRE
GRN/VIO WIRE
HOT AT ALL TIMES
HYBRID/EV BATTERY CONTACTOR ASSEMBLY
HYBRID/EV BATTERY PACK
HYBRID/EV BATTERY PACK COOLANT TEMPERATURE SENSOR 1
HYBRID/EV ELECTRONICS COOLANT TEMPERATURE SENSOR
INSTRUMENT CLUSTER
LOGIC
LOGIC HYBRID/EV BATTERY PACK COOLANT PUMP
LOW REF 7
LOW SPD
MTR CTRL
RED/BLU WIRE
RED/VIO WIRE
SERIAL DATA
TEMP SIG 7
UNDERHOOD FUSE BLOCK
VIO/BRN WIRE
WHT/GRN WIRE
WHT/RED WIRE
WHT/YEL WIRE
YEL WIRE
YEL/GRY WIRE
Go to component -> Automatic a/c circuit (5 of 6) -> TEMP SIG 7

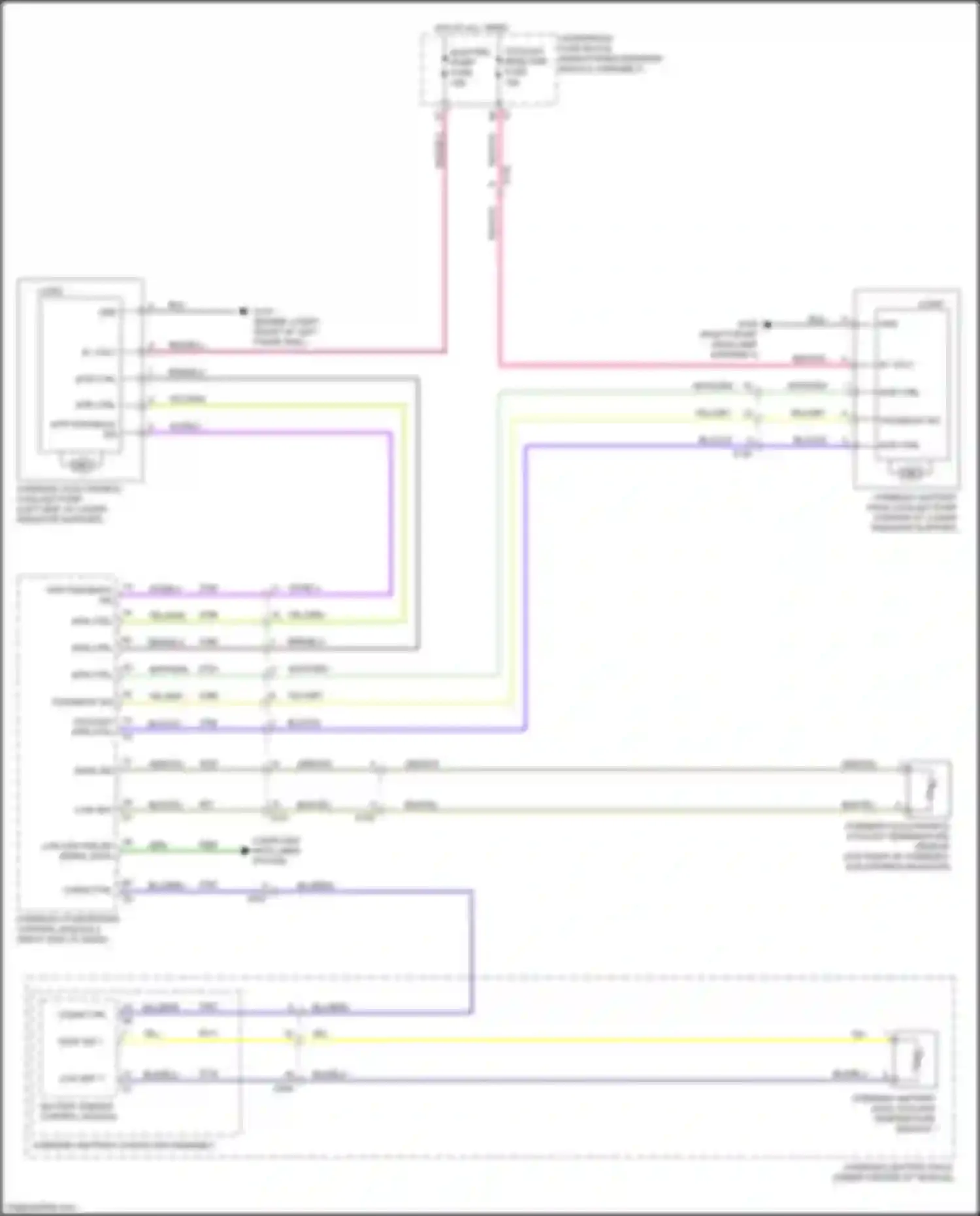

Wiring diagram temp sig 7 (2 of 2)
B+ VOLT
BATTERY ENERGY CONTROL MODULE
BLK WIRE
BLK/BLU WIRE
BLK/YEL WIRE
BLU/BRN WIRE
BLU/VIO WIRE
BRN/BLU WIRE
COMM CTRL
COMPUTER DATA LINES SYSTEM
COOLANT MTR CTRL
COOLANT RESS PMP FUSE
ELECTRIC PUMP FUSE
FEEDBACK SIG
GRN WIRE
GRN/VIO WIRE
HOT AT ALL TIMES
HYBRID/EV BATTERY CONTACTOR ASSEMBLY
HYBRID/EV BATTERY PACK (UNDER CENTER OF VEHICLE)
HYBRID/EV BATTERY PACK COOLANT PUMP
HYBRID/EV BATTERY PACK COOLANT TEMPERATURE SENSOR 1
HYBRID/EV ELECTRONICS COOLANT PUMP
HYBRID/EV ELECTRONICS COOLANT TEMPERATURE SENSOR
HYBRID/EV POWERTRAIN CONTROL MODULE 2
LOGIC
LOW REF
LOW REF 7
LOW SPD GMLAN SERIAL DATA
MTR CTRL
MTR FEEDBACK SIG
RED/BLU WIRE
RED/VIO WIRE
SENS SIG
TEMP SIG 7
UNDERHOOD FUSE BLOCK
VIO/BLU WIRE
WHT/GRN WIRE
YEL WIRE
YEL/GRN WIRE
YEL/GRY WIRE
Go to component -> Hybrid cooling fan circuit -> TEMP SIG 7
