Chevrolet Volt II (2015-2019) logic active grille air shutter actuator Wiring diagram
This page shows the only wiring diagram for the component.logic active grille air shutter actuator, which is found in the car Chevrolet Volt II (2015-2019). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

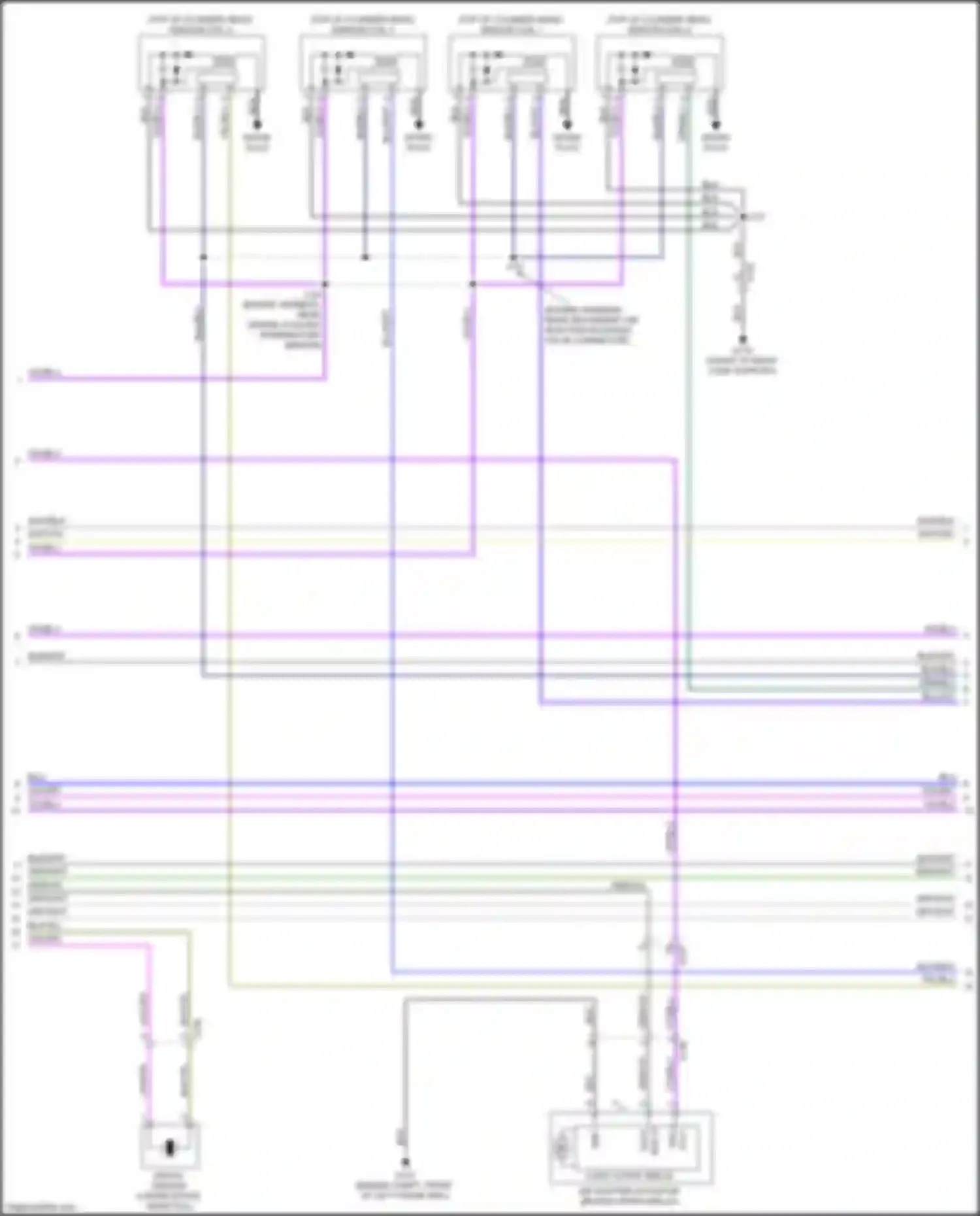

Wiring diagram logic active grille air shutter actuator (1 of 1)
Go to component -> Wiring diagram engine performance 1.5l vin 5, engine controls circuit (5 of 7) -> LOGIC ACTIVE GRILLE AIR SHUTTER ACTUATOR
