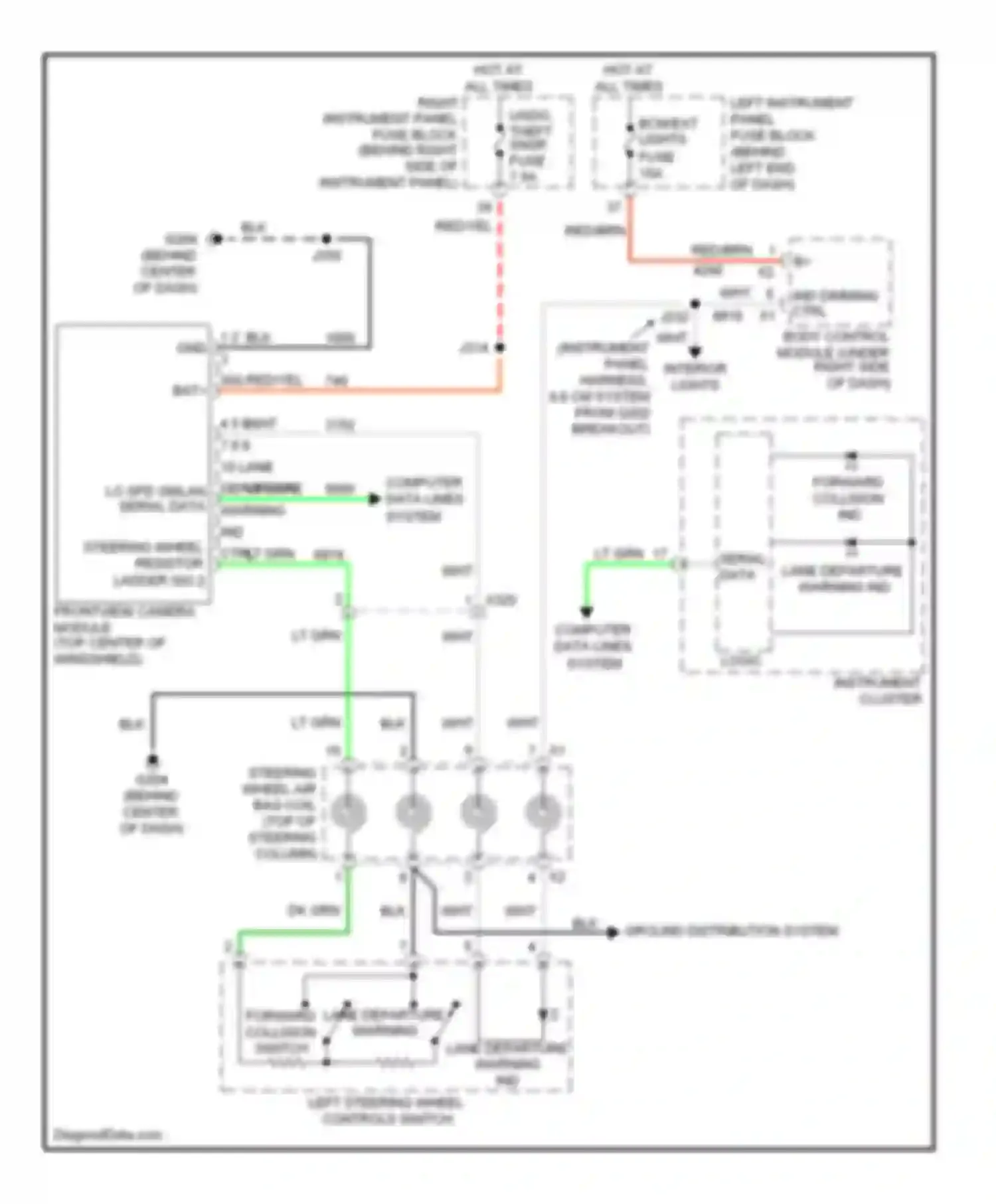

Chevrolet Volt I (2010-2015) Lane departure warning circuit

1 2 3 SIG GND 4 5 6 7 8 9 10 LANE DEPARTURE WARNING IND CTRL BAT+ BCM/EXT LIGHTS BLK WIRE BODY CONTROL MODULE (UNDER RIGHT SIDE OF DASH) BREAKOUT) COMPUTER DATA LINES LOGIC SYSTEM COMPUTER DATA LINES SYSTEM DK GRN WIRE FORWARD COLLISION IND FORWARD COLLISION SWITCH FRONTVIEW CAMERA MODULE (TOP CENTER OF WINDSHIELD) FUSE GROUND DISTRIBUTION SYSTEM HOT AT ALL TIMES IND DIMMING CTRL INSTRUMENT CLUSTER LANE DEPARTURE WARNING LANE DEPARTURE WARNING IND LEFT INSTRUMENT PANEL FUSE BLOCK (BEHIND LEFT END OF DASH) LEFT STEERING WHEEL CONTROLS SWITCH LO SPD GMLAN SERIAL DATA LT GRN WIRE RED/BRN WIRE RED/YEL WIRE SERIAL DATA STEERING WHEEL AIR BAG COIL (TOP OF STEERING COLUMN) STEERING WHEEL RESISTOR LADDER SIG 2 WHT WIRE
