Chevrolet Volt I (2010-2015) computer data lines logic system Wiring diagram
This page shows the only wiring diagram for the component.computer data lines logic system, which is found in the car Chevrolet Volt I (2010-2015). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

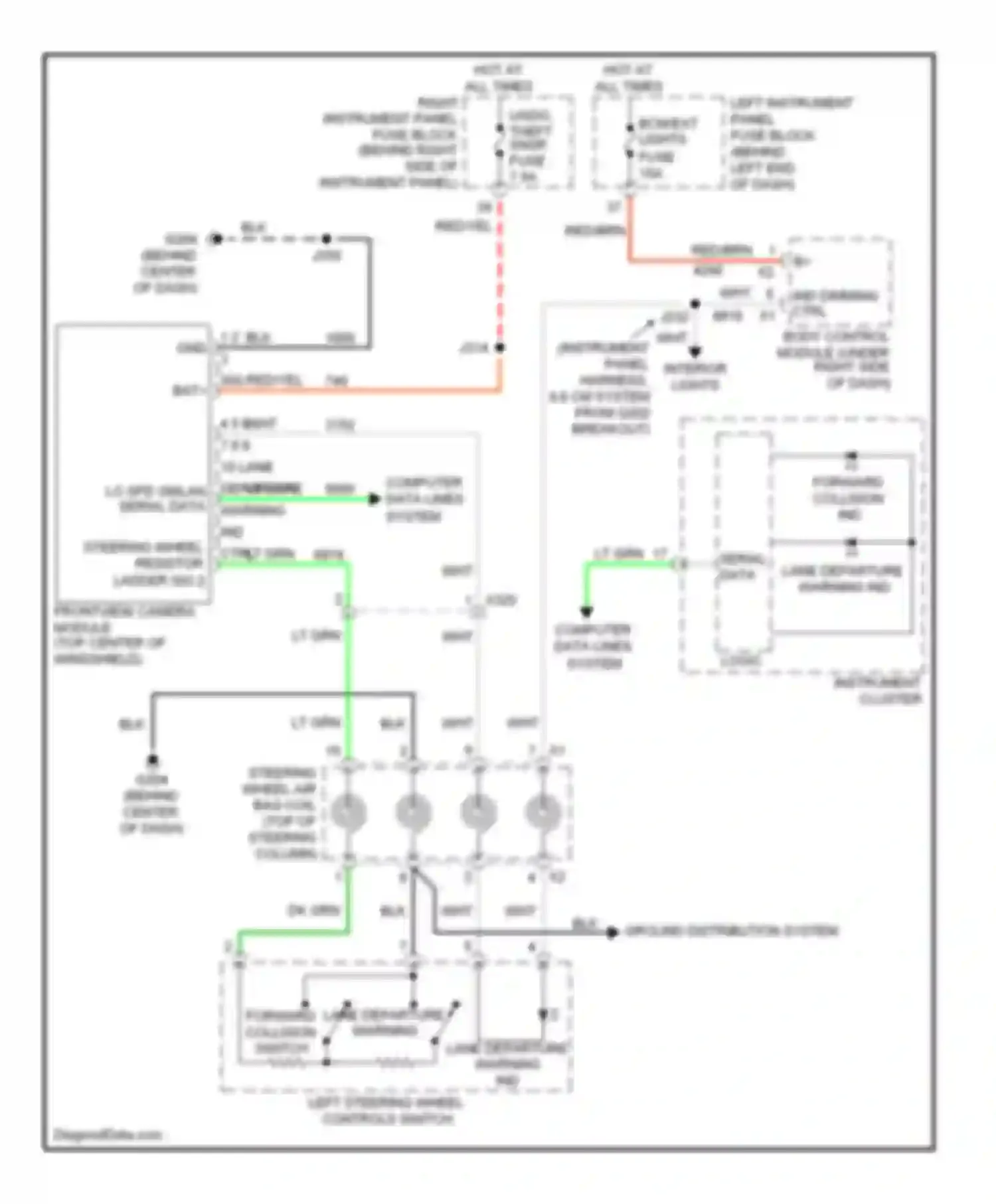

Wiring diagram computer data lines logic system (1 of 1)
1 2 3 SIG GND
4 5 6 7 8 9 10 LANE DEPARTURE WARNING IND CTRL
BAT+
BCM/EXT LIGHTS
BLK WIRE
BODY CONTROL MODULE (UNDER RIGHT SIDE OF DASH)
BREAKOUT)
COMPUTER DATA LINES LOGIC SYSTEM
COMPUTER DATA LINES SYSTEM
DK GRN WIRE
FORWARD COLLISION IND
FORWARD COLLISION SWITCH
FRONTVIEW CAMERA MODULE (TOP CENTER OF WINDSHIELD)
FUSE
GROUND DISTRIBUTION SYSTEM
HOT AT ALL TIMES
IND DIMMING CTRL
INSTRUMENT CLUSTER
LANE DEPARTURE WARNING
LANE DEPARTURE WARNING IND
LEFT INSTRUMENT PANEL FUSE BLOCK (BEHIND LEFT END OF DASH)
LEFT STEERING WHEEL CONTROLS SWITCH
LO SPD GMLAN SERIAL DATA
LT GRN WIRE
RED/BRN WIRE
RED/YEL WIRE
SERIAL DATA
STEERING WHEEL AIR BAG COIL (TOP OF STEERING COLUMN)
STEERING WHEEL RESISTOR LADDER SIG 2
WHT WIRE
Go to component -> Lane departure warning circuit -> COMPUTER DATA LINES LOGIC SYSTEM
