Rear wiper/washer circuit for Chevrolet Venture I (1996-2005)

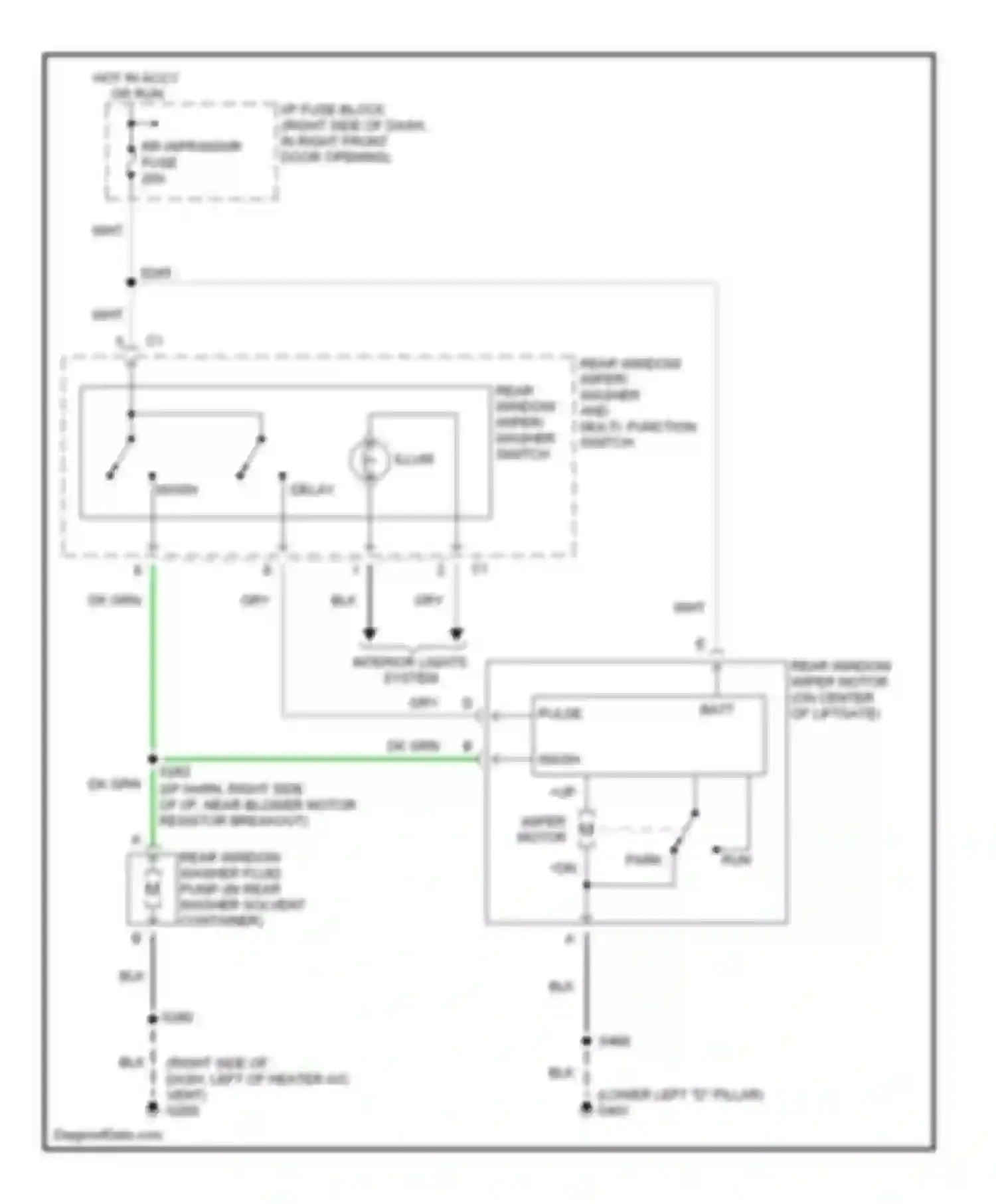

Rear wiper/washer circuit
BLK WIRE
DELAY
DK GRN WIRE
DN (+)
GRY WIRE
HOT IN ACCY OR RUN
I/P FUSE BLOCK (RIGHT SIDE OF DASH, IN RIGHT FRONT DOOR OPENING)
ILLUM
PARK
PULSE
REAR WINDOW WASHER FLUID PUMP (IN REAR WASHER SOLVENT CONTAINER)
REAR WINDOW WIPER MOTOR (ON CENTER OF LIFTGATE)
REAR WINDOW WIPER/ WASHER AND MULTI- FUNCTION SWITCH
REAR WINDOW WIPER/ WASHER SWITCH
RR WPR/WSHR FUSE
RUN WIRE
UP (+)
WASH
WHT WIRE
WIPER MOTOR
