Chevrolet Traverse II (2017-2021) horn relay control Wiring diagram
This page shows the only wiring diagram for the component.horn relay control, which is found in the car Chevrolet Traverse II (2017-2021). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

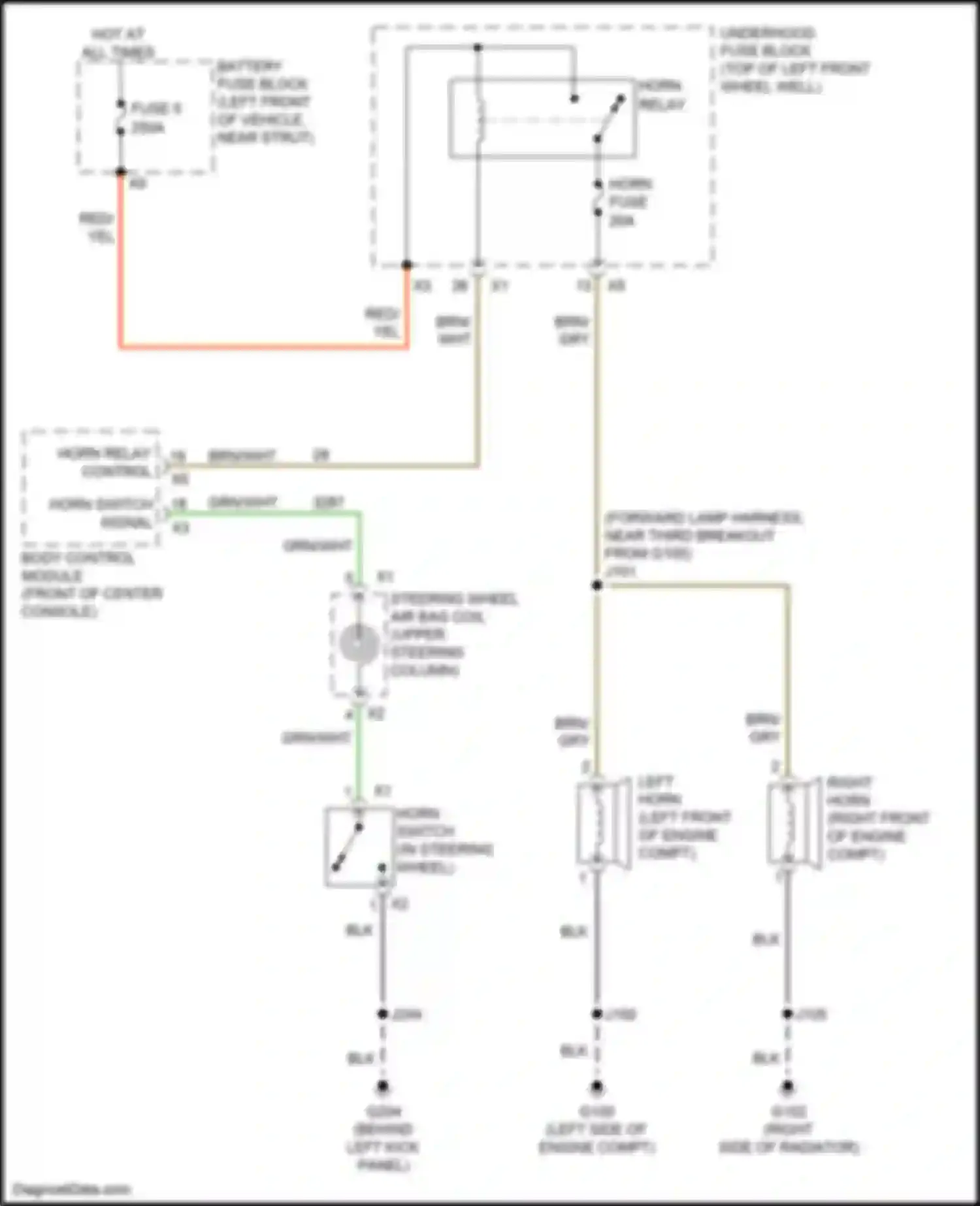

Wiring diagram horn relay control (1 of 1)
BATTERY FUSE BLOCK
BLK WIRE
BODY CONTROL MODULE
BRN WIRE
BRN/WHT WIRE
FUSE 5
GRN/WHT WIRE
GRY WIRE
HORN FUSE
HORN RELAY
HORN RELAY CONTROL
HORN SWITCH
HORN SWITCH SIGNAL
HOT AT ALL TIMES
LEFT HORN
RED WIRE
RIGHT HORN
RIGHT SIDE OF RADIATOR)
STEERING WHEEL AIR BAG COIL
UNDERHOOD FUSE BLOCK
WHT WIRE
YEL WIRE
Go to component -> Horn circuit -> HORN RELAY CONTROL
