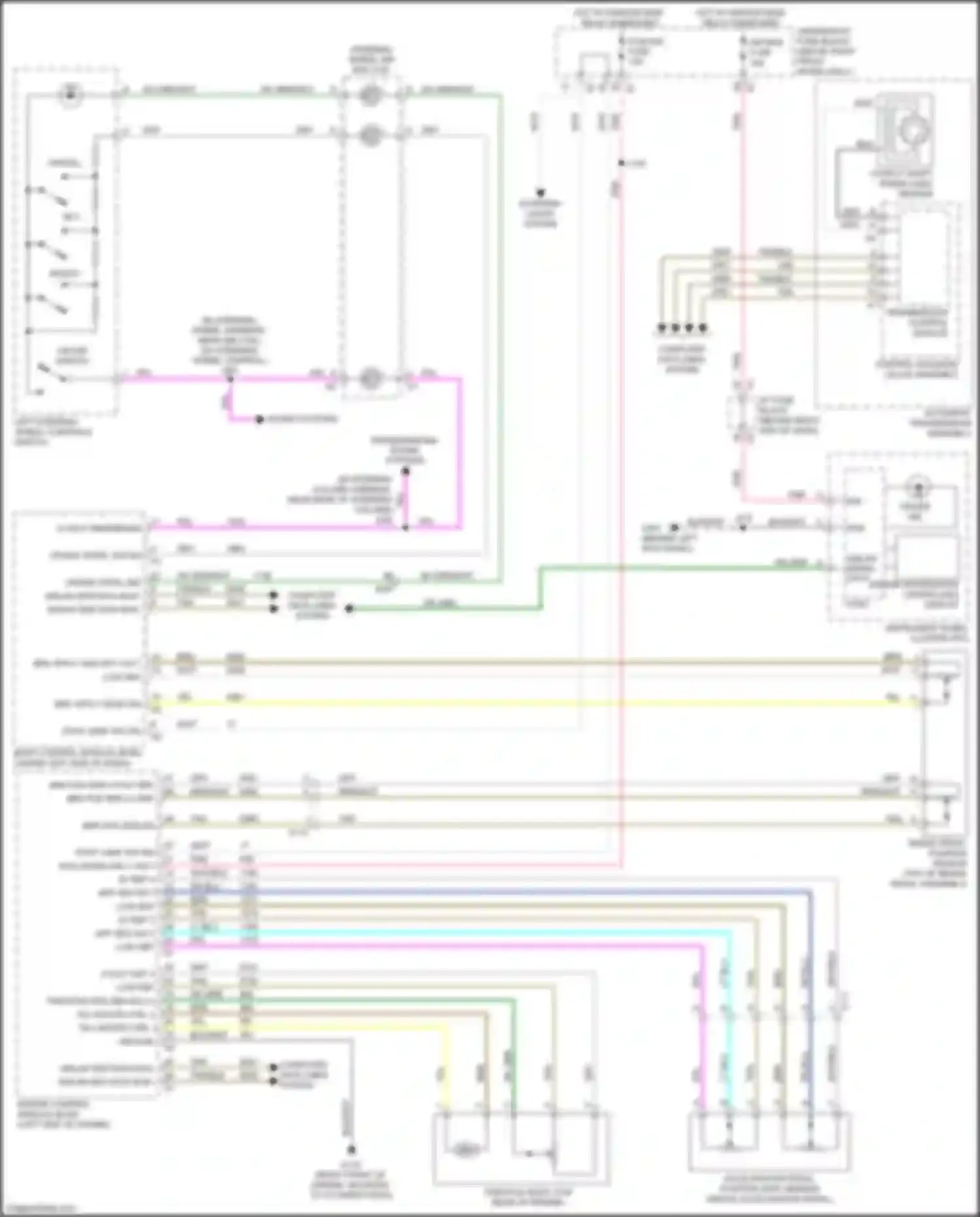

Chevrolet Traverse I facelift (2012-2017) brk pos sen 5 volt ref Wiring diagram

12 VOLT REFERENCE 5 VOLT REF 4 ACCELERATOR PEDAL POSITION (APP) SENSOR AIR BAG FUSE APP SEN SIG 1 APP SEN SIG 2 AUTOMATIC TRANSMISSION ASSEMBLY BLK WIRE BLK/WHT WIRE BODY CONTROL MODULE (BCM) (UNDER LEFT SIDE OF DASH) BRAKE PEDAL POSITION SENSOR BRK APPLY SEN SPY VOLT BRK APPLY SENS SIG BRK POS SEN 5 VOLT REF BRK POS SEN LO REF BRK POS SEN SIG BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM CONTROL SOLENOID VALVE ASSEMBLY CRUISE CNTRL IND CRUISE CNTRL SW SIG CRUISE IND CRUISE SWITCH DK BLU WIRE DK GRN WIRE DK GRN/WHT WIRE DRIVER INFORMATION CENTER (DIC) DISPLAY ENGINE CONTROL MODULE (ECM) GMLAN SER DATA BUS- GMLAN SERIAL DATA GROUND GRY WIRE HOT W/ IGNITION MAIN RELAY ENERGIZED I/P FUSE BLOCK IGN INSTRUMENT PANEL CLUSTER (IPC) LEFT STEERING WHEEL CONTROLS SWITCH LOGIC LOW REF LT BLU WIRE OUTPUT SHAFT SPEED (OSS) SENSOR PCM IGN FUSE PNK WIRE PPL RESET+ RUN/ CRANK IGN 1 VOLT SET- SOUND SYSTEMS STEERING WHEEL AIR BAG COIL STOP LAMP SW SIG TAC MOTOR CTRL 1 TAC MOTOR CTRL 2 TAN WIRE TAN/BLK WIRE THROTTLE BODY (TOP REAR OF ENGINE) THROTTLE POS SEN SIG (1) TRANSMISSION CONTROL MODULE TRANSMISSIONS, SOUND SYSTEMS UNDERHOOD FUSE BLOCK WHT WIRE WHT/BLK WIRE YEL WIRE
