Chevrolet Tracker II (1998-2004) int lo off hi hi off Wiring diagram
This page shows the only wiring diagram for the component.int lo off hi hi off, which is found in the car Chevrolet Tracker II (1998-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

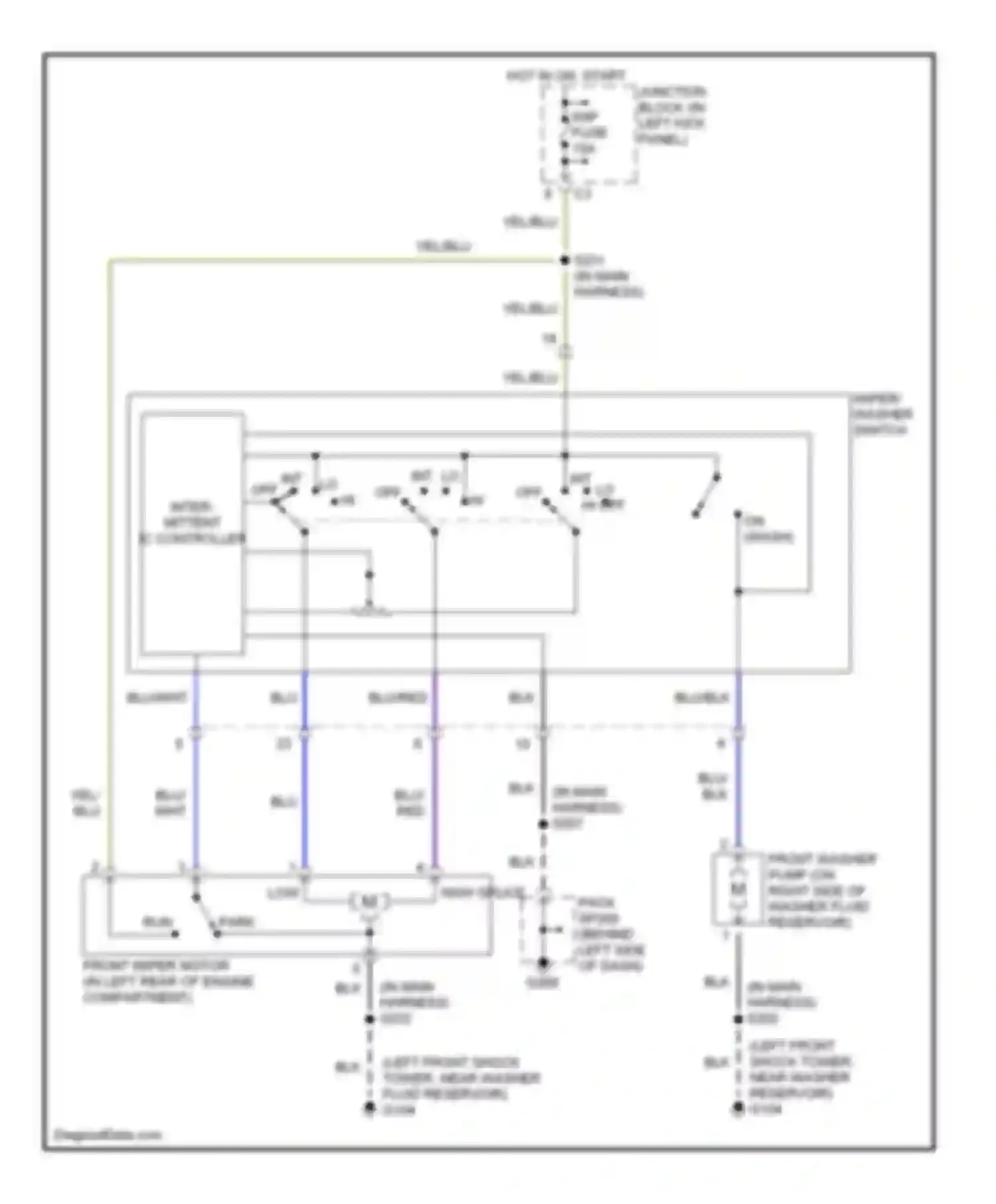

Wiring diagram int lo off hi hi off (1 of 1)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
FRONT WASHER PUMP (ON RIGHT SIDE OF WASHER FLUID RESERVOIR)
FRONT WIPER MOTOR (IN LEFT REAR OF ENGINE COMPARTMENT)
HIGH SPLICE PACK
HOT IN ON, START
INT LO OFF
INT LO OFF HI HI OFF
INTER- MITTENT IC CONTROLLER
JUNCTION BLOCK (IN LEFT KICK PANEL)
LO INT OFF HI
ON (WASH)
PARK
RED WIRE
RUN WIRE
WHT WIRE
WIP FUSE
WIPER/ WASHER SWITCH
YEL WIRE
YEL/BLU WIRE
Go to component -> Front wiper/washer circuit -> INT LO OFF HI HI OFF
