Chevrolet Tracker II (1998-2004) driver's door unlock ctrl unlock ctrl batt ign dlc gnd batt lock ctrl wiring diagram
This page shows the only wiring diagram for the component.driver's door unlock ctrl unlock ctrl batt ign dlc gnd batt lock ctrl, which is found in the car Chevrolet Tracker II (1998-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

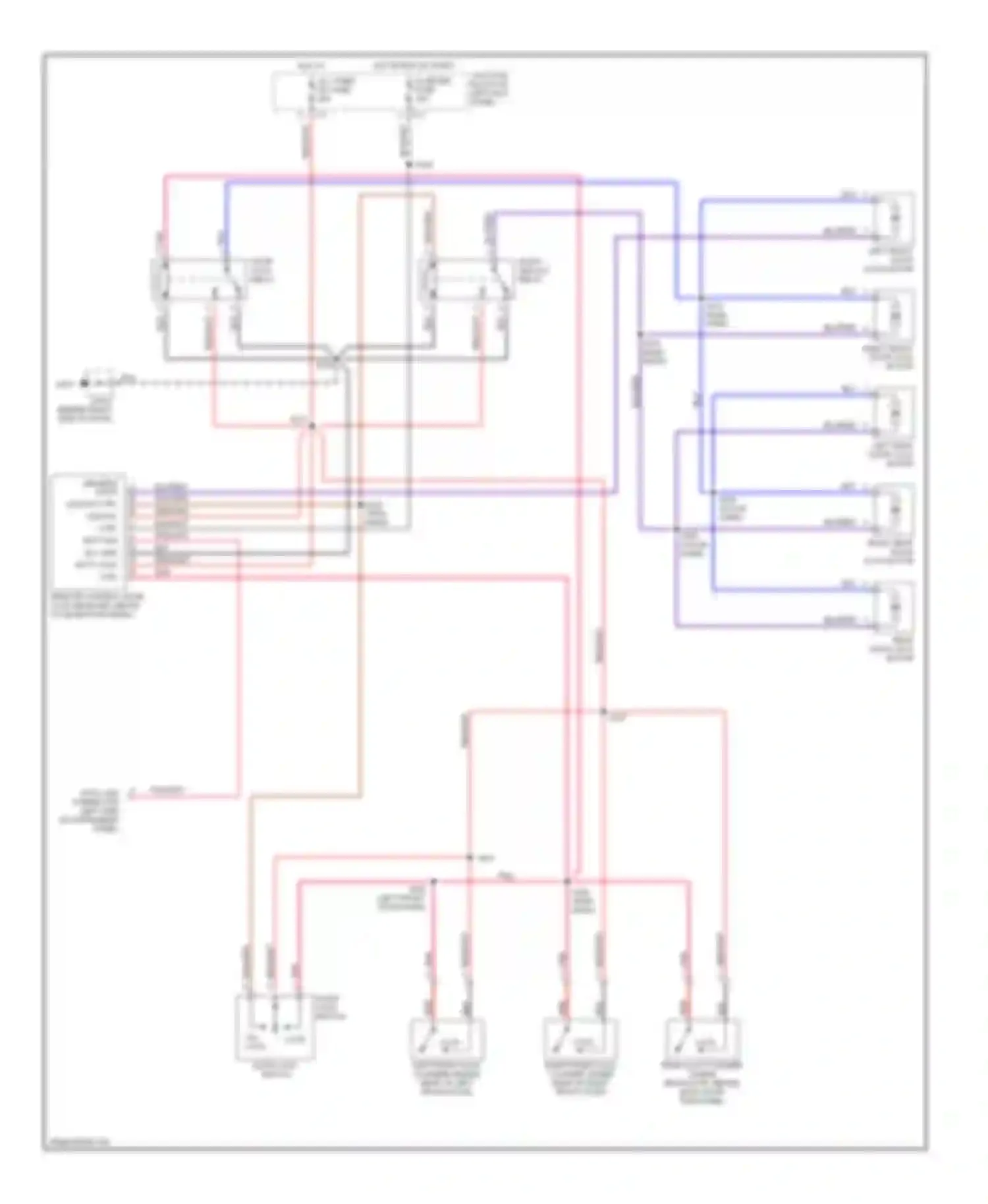

driver's door unlock ctrl unlock ctrl batt ign dlc gnd batt lock ctrl wiring diagram (1 of 1)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/RED WIRE
DATA LINK CONNECTOR (LEFT SIDE OF INSTRUMENT PANEL)
DOOR LOCK RELAY
DOOR LOCK SWITCH
DOOR UNLOCK RELAY
DRIVER'S DOOR UNLOCK CTRL UNLOCK CTRL BATT IGN DLC GND BATT LOCK CTRL
HOT AT ALL TIMES D/L FUSE
HOT IN RUN OR START
IG METER FUSE
JUNCTION BLOCK (IN LEFT KICK PANEL)
LEFT FRONT DOOR LOCK MOTOR
LEFT FRONT LOCK CYLINDER (INSIDE REAR OF LEFT FRONT DOOR)
LEFT REAR DOOR LOCK MOTOR
LOCK
PNK WIRE
PNK/GRN WIRE
PNK/WHT WIRE
REAR DOOR LOCK MOTOR
REAR LOCK CYLINDER (INSIDE REAR DOOR, BEHIND BACK DOOR TRIM PANEL)
RED WIRE
RED/WHT WIRE
REMOTE CONTROL DOOR LOCK RECEIVER (ABOVE ACCELERATOR PEDAL)
RIGHT FRONT DOOR LOCK MOTOR
RIGHT FRONT LOCK CYLINDER (INSIDE REAR OF RIGHT FRONT DOOR)
RIGHT REAR DOOR LOCK MOTOR
UN LOCK
Go to component -> Power door lock circuit -> DRIVER'S DOOR UNLOCK CTRL UNLOCK CTRL BATT IGN DLC GND BATT LOCK CTRL
