Chevrolet Tahoe V (2021-2024) w/o front compartment console Wiring diagram
This page shows the only wiring diagram for the component.w/o front compartment console, which is found in the car Chevrolet Tahoe V (2021-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

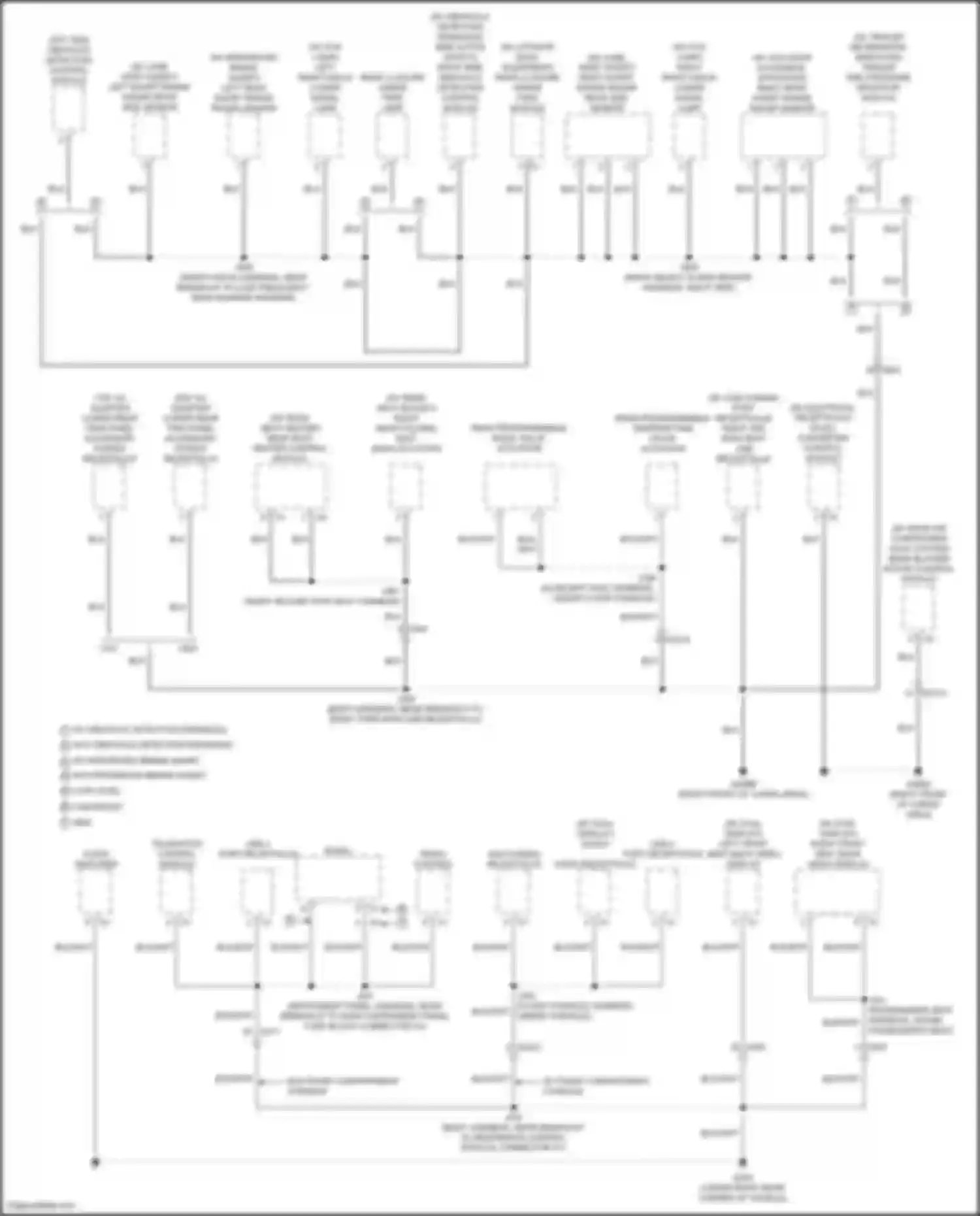

Wiring diagram w/o front compartment console (1 of 1)
AUDIO AMPLIFIER
AUDIO/ VIDEO RECEPTACLE
BLK WIRE
BLK/WHT WIRE
CHEVROLET
DC/AC CONVERTER CONTROL MODULE
GMC
LEFT FRONT SEAT BACK VIDEO DISPLAY
LEFT REAR FASCIA LOWER SIGNAL LAMP
LEFT REAR SHORT RANGE RADAR SENSOR
LEFT SHORT RANGE RADAR REAR SIDE SENSOR
LEFT SIDE OBSTACLE DETECTION CONTROL MODULE
LOW LEVEL
MULTI-MEDIA RECEPTACLE
RADIO
RADIO CONTROL
REAR BLOWER MOTOR CONTROL MODULE
REAR CLOSURE HANDS FREE LAMP
REAR CLOSURE HANDS FREE MODULE
REAR PROGRAMMABLE MODE VALVE ACTUATOR
REAR PROGRAMMABLE TEMPERATURE VALVE ACTUATOR
REAR SEAT HEATER CONTROL MODULE
RIGHT FRONT SEAT BACK VIDEO DISPLAY
RIGHT REAR FASCIA LOWER SIGNAL LAMP
RIGHT REAR FOLDING SEAT BACK ACTUATOR
RIGHT REAR SHORT RANGE RADAR SENSOR
RIGHT SHORT RANGE RADAR REAR SIDE SENSOR
RIGHT SIDE OBSTACLE DETECTION CONTROL MODULE
TELEMATICS CONTROL MODULE
TRAILER TIRE PRESSURE INDICATOR MODULE
USB 2 PORT RECEPTACLE
W/ DUAL DISPLAY
W/ FOG LAMP
W/ INTEGRATED BRAKE ASSIST
W/ LANE KEEP ASSIST
W/ OBSTACLE DETECTION ENHANCED SIDE ACTIVE SAFETY
W/ TRAILER INFORMATION INDICATOR
W/O FRONT COMPARTMENT CONSOLE
W/O INTEGRATED BRAKE ASSIST
W/O OBSTACLE DETECTION ENHANCED
WHT WIRE
Go to component -> Ground distribution circuit (10 of 11) -> W/O FRONT COMPARTMENT CONSOLE
