Chevrolet Suburban X (2000-2006) a/c ref pre sens sig Wiring diagrams

This page contains all the electrical diagrams for the component. a/c ref pre sens sig, in which he is found in the car Chevrolet Suburban X (2000-2006). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

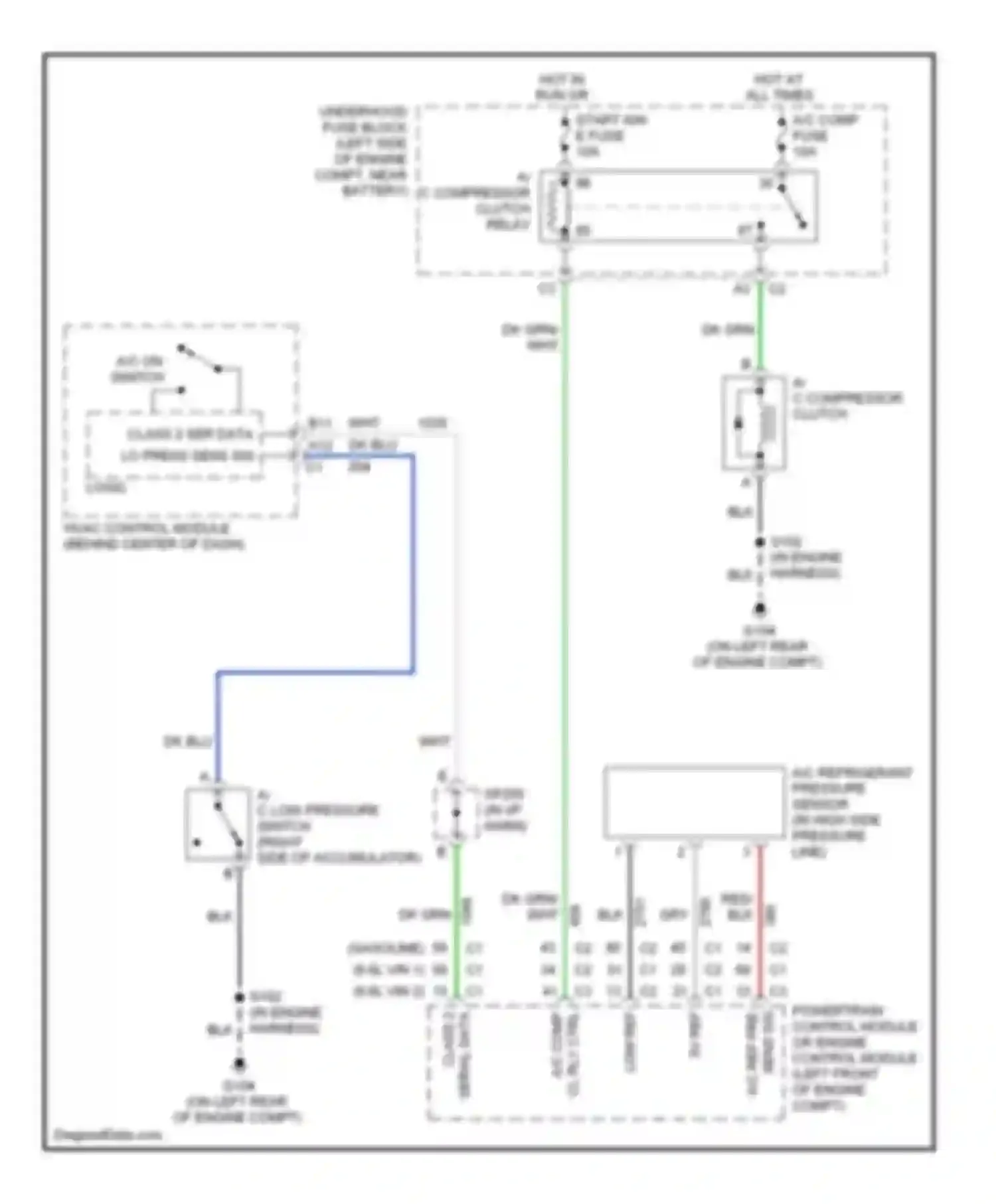

Wiring diagram a/c ref pre sens sig (1 of 3)

Wiring diagram a/c ref pre sens sig for Chevrolet Suburban X (2000-2006)

Get access

A/C COMP CL RLY CTRL A/C COMPRESSOR CLUTCH A/C COMPRESSOR CLUTCH RELAY A/C LOW PRESSURE SWITCH (RIGHT SIDE OF ACCUMULATOR) A/C ON A/C ON SWITCH A/C RECIRC A/C REF PRE SENS SIG A/C REFRIGERANT PRESSURE SENSOR (IN HIGH SIDE PRESSURE LINE) AMBIENT AIR TEMPERATURE SENSOR (IN RIGHT FRONT BUMPER FILLER ASSEMBLY AUTO BLK WIRE BLK/WHT WIRE BLOWER FUSE BLOWER MOTOR (RIGHT SIDE OF DASH) BLOWER MOTOR (UNDER RIGHT SIDE OF DASH) BLOWER MOTOR CONTROL PROCESSOR (BEHIND RIGHT SIDE OF DASH) BLOWER MOTOR CONTROL SWITCH BLOWER MOTOR RELAY BLOWER MOTOR RESISTOR ASSEMBLY (ON HVAC MODULE, NEAR BLOWER MOTOR) BRN WIRE BRN/WHT WIRE CLASS 2 SER DATA CLASS 2 SER DATA LO PRESS SENS SIG CLASS 2 SERIAL DATA DK BLU WIRE DK GRN WIRE DK GRN/WHT WIRE FAN DN FAN UP FRT DEF GROUND GROUND TEMP SEN ASS CTRL BLOWER SPEED CTRL GRY WIRE GRY/BLK WIRE HOT AT ALL TIMES HOT AT ALL TIMES A/C COMP FUSE HOT IN HOT IN RUN OR START IGN E FUSE HTR A/C FUSE HVAC 1 FUSE HVAC CONTROL MODULE (BEHIND CENTER OF DASH) HVAC/ ECAS FUSE I/P RELAY BLOCK (LEFT SIDE OF DASH) INSIDE AIR TEMPERATURE SENSOR ASSEMBLY (IN HEADLINER ABOVE DRIVER) INST LAMP DIM CTRL GROUND LEFT I/P FUSE BLOCK (LOWER LEFT SIDE OF DASH) LEFT TEMP CONTROL LO PRESS SENS SIG RT TEMP DOOR CTRL LT TEMP DOOR CTRL LOGIC LOW REF LOWER LEFT AIR TEMPERATURE SENSOR (LEFT END OF HVAC MODULE) LOWER RIGHT AIR TEMPERATURE SENSOR (BOTTOM OF HVAC MODULE) LT BLU WIRE LT BLU/BLK WIRE LT GRN WIRE LT GRN/BLK WIRE MODE MODE CONTROL MODE DOOR CTRL MODE DOOR CTRL IGN 3 LOW REF B(+) OFF OFF BLOW MT CTRL LO PRESS SENS SIG RT TEMP DOOR CTRL LT TEMP DOOR CTRL ORG/ WIRE POWERTRAIN CONTROL MODULE OR ENGINE CONTROL MODULE (LEFT FRONT OF ENGINE COMPT) PPL PPL/WHT WIRE RECIR RECIR DOOR CTRL RT TEMP DOOR CTRL LT TEMP DOOR CTRL RECIRC SWITCH RED WIRE RED/BLK WIRE RIGHT I/P FUSE BLOCK (LOWER RIGHT SIDE OF DASH) RIGHT TEMP CONTROL RUN WIRE SPEED CTRL B(+) GROUND TAN WIRE UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT, NEAR BATTERY) UPPER LEFT AIR TEMPERATURE SENSOR (BELOW DASH TRIM PANEL) UPPER RIGHT AIR TEMPERATURE SENSOR (BELOW DASH TRIM PANEL) WHT WIRE WHT/BLK WIRE YEL WIRE

Go to component: Air conditioning -> Automatic a/c circuit, front a/c (1 of 2) -> A/C REF PRE SENS SIG
