Chevrolet Suburban K2500 (1992-1999) sensor low sensor high sensor high 830 872 Wiring diagrams

This page contains all the electrical diagrams for the component. sensor low sensor high sensor high 830 872, in which he is found in the car Chevrolet Suburban K2500 (1992-1999). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

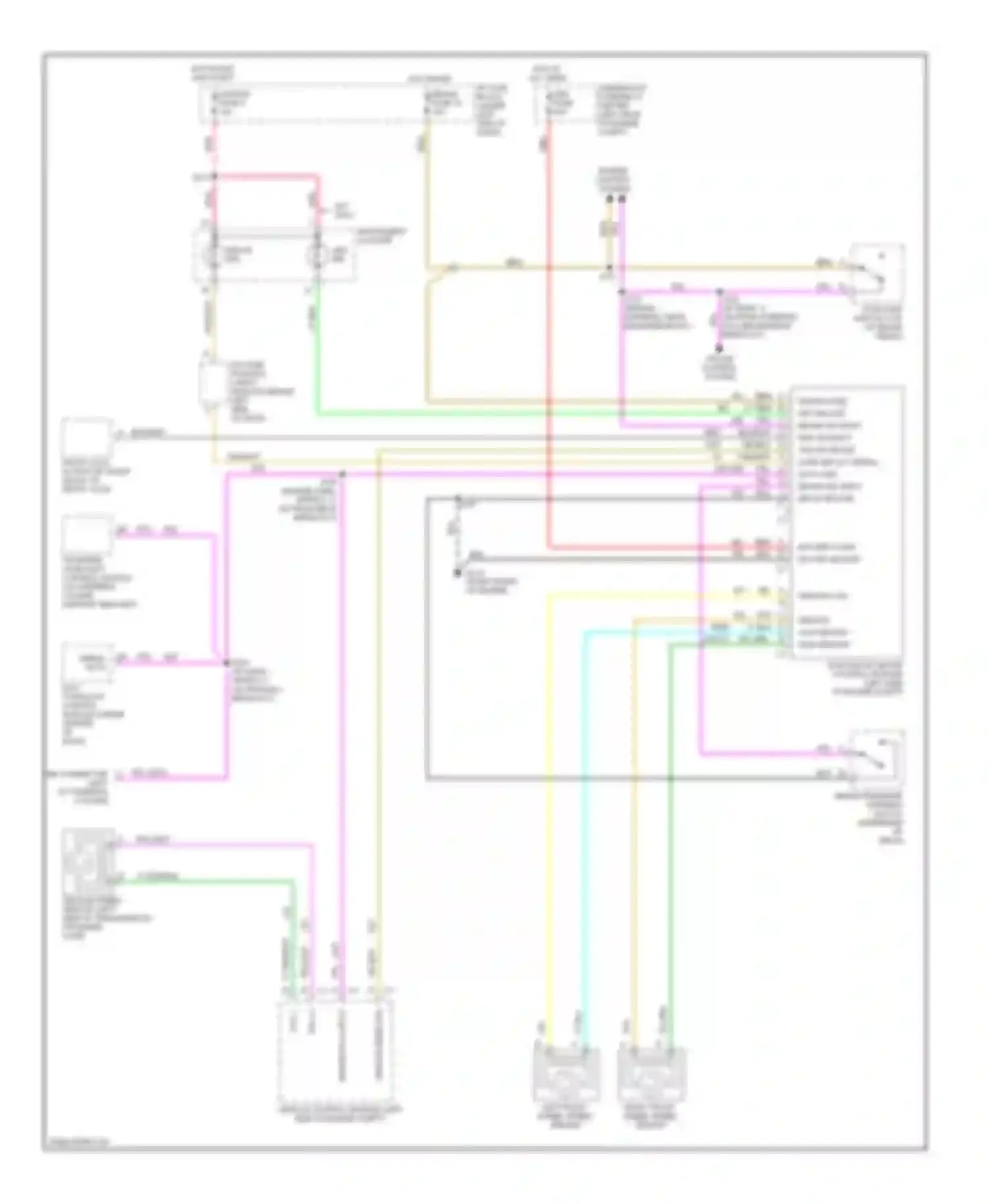

Wiring diagram sensor low sensor high sensor high 830 872 (1 of 3)

Wiring diagram sensor low sensor high sensor high 830 872 for Chevrolet Suburban K2500 (1992-1999) (1 of 3)

Get access

ABS FUSE ABS IND. BATTERY PUMP MOTOR GROUND BLK WIRE BLK/WHT WIRE BRAKE FUSE 18 BRAKE IND BRAKE PRESSURE WARNING SWITCH (UNDERSIDE OF EBCM) BRAKE SW OUTPUT BRN WIRE CRUISE CONTROL SYSTEM DAYTIME RUNNING LAMPS MODULE (BEHIND LEFT SIDE OF DASH) DK GRN WIRE ELECTRONIC BRAKE CONTROL MODULE (LEFT SIDE OF ENGINE COMPT) ENGINE CONTROL SYSTEM EVO/ PASSLOCK CONTROL MODULE (UNDER CENTER OF DASH) FRONT AXLE ACTUATOR (RIGHT FRONT OF FRONT AXLE) GAUGES FUSE 4 HOT AT ALL TIMES HOT IN RUN HOT IN RUN AND START I/P FUSE BLOCK (UNDER LEFT SIDE OF DASH) IGNITION ABS IND GROUND BRAKE SW INPUT INSTRUMENT CLUSTER LEFT FRONT WHEEL SPEED SENSOR LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE M/T ONLY PNK WIRE PPL PPL DATA LINK CONNECTOR (LEFT OF STEERING COLUMN) PPL PPL 1807 680 PPL SERIAL DATA PPL/WHT WIRE RED WIRE RIGHT FRONT WHEEL SPEED SENSOR SENSOR LOW SENSOR LOW SENSOR HIGH SENSOR HIGH 830 872 STOPLAMP SWITCH (TOP OF BRAKE PEDAL) TAN WIRE TAN/WHT WIRE TRANSFER CASE SHIFT CONTROL MODULE (ON STEERING COLUMN SUPPORT BRACKET) UNDERHOOD FUSE/RELAY CENTER (LEFT REAR OF ENGINE COMPT) VEHICLE CONTROL MODULE (LEFT SIDE OF ENGINE COMPT) VEHICLE SPEED SENSOR (LEFT SIDE OF TRANSMISSION/ TRANSFER CASE) VEHICLE SPEED SIG VSS VSS SIG BRAKE LAMP IND OUT SERIAL DATA LINE BRAKE IND INPUT EBCM GROUND YEL WIRE YEL/BLK WIRE

Go to component -> 5.7l (vin r), anti-lock brake circuits -> SENSOR LOW SENSOR HIGH SENSOR HIGH 830 872

Wiring diagram sensor low sensor high sensor high 830 872 (2 of 3)

Wiring diagram sensor low sensor high sensor high 830 872 for Chevrolet Suburban K2500 (1992-1999) (2 of 3)

Get access

2 12 PPL DATA LINK CONNECTOR (LEFT OF STEERING COLUMN) ABS FUSE ABS IND. BATTERY PUMP MOTOR GROUND BLK WIRE BLK/WHT WIRE BRAKE FUSE 18 BRAKE IND BRAKE PRESSURE WARNING SWITCH (UNDERSIDE OF EBCM) BRN WIRE CRUISE CONTROL SYSTEM DAYTIME RUNNING LAMPS MODULE (BEHIND LEFT SIDE OF DASH) DIODE 1 DK GRN WIRE ELECTRONIC BRAKE CONTROL MODULE (LEFT SIDE OF ENGINE COMPT) ENGINE CONTROL SYSTEM EVO/ PASSLOCK CONTROL MODULE (UNDER CENTER OF DASH) FRONT AXLE ACTUATOR (RIGHT FRONT OF FRONT AXLE) GAUGES FUSE 4 HOT AT ALL TIMES HOT IN RUN HOT IN RUN AND START I/P FUSE BLOCK (UNDER LEFT SIDE OF DASH) IGNITION ABS IND GROUND BRAKE SW INPUT INSTRUMENT CLUSTER LEFT FRONT WHEEL SPEED SENSOR LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE M/T ONLY PNK WIRE POWERTRAIN CONTROL MODULE (BEHIND RIGHT SIDE SIDE OF DASH, NEAR BLOWER MOTOR) PPL PPL PPL 1807 680 PPL SERIAL DATA PPL/WHT WIRE RED WIRE RIGHT FRONT WHEEL SPEED SENSOR SENSOR LOW SENSOR LOW SENSOR HIGH SENSOR HIGH 830 872 STOPLAMP SWITCH (TOP OF BRAKE PEDAL) TAN WIRE TAN/WHT WIRE TRANSFER CASE SHIFT CONTROL MODULE (ON STEERING COLUMN SUPPORT BRACKET) UNDERHOOD FUSE/RELAY CENTER (LEFT REAR OF ENGINE COMPT) VEHICLE SPEED SENSOR (LEFT SIDE OF TRANSMISSION/ TRANSFER CASE) VEHICLE SPEED SENSOR BUFFER (BEHIND RIGHT SIDE OF DASH) VSS SIG DIAGNOSTIC SIGNAL SERIAL DATA BRAKE IND INPUT EBCM GROUND YEL WIRE YEL/BLK WIRE

Go to component -> 6.5l (vin f), anti-lock brake circuits -> SENSOR LOW SENSOR HIGH SENSOR HIGH 830 872
