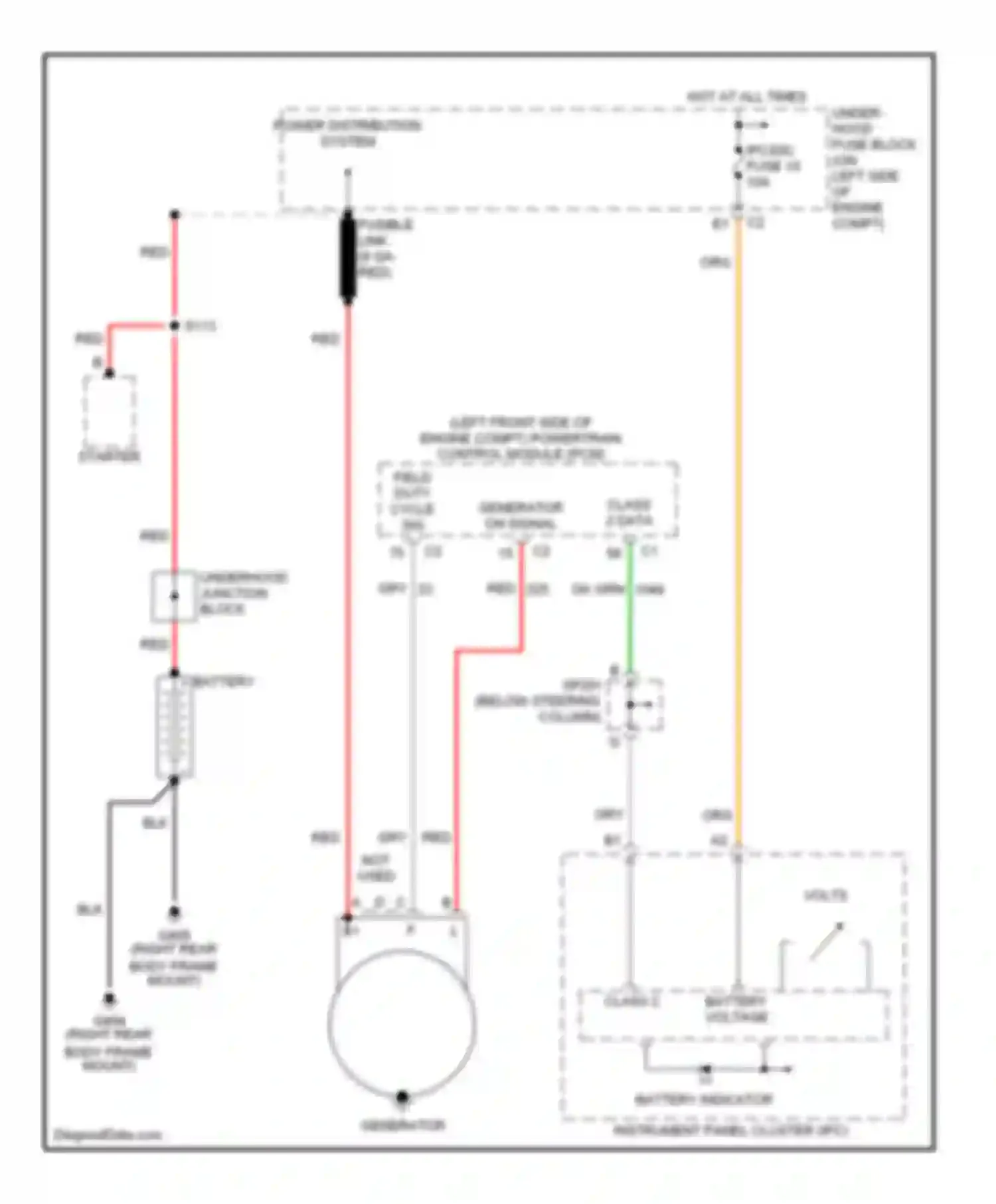

Charging circuit for Chevrolet SSR I (2003-2006)

BATTERY BATTERY INDICATOR BLK WIRE CLASS 2 BATTERY VOLTAGE CLASS 2 DATA DK GRN WIRE FIELD DUTY CYCLE SIG FUSIBLE LINK (8 GA- GENERATOR GENERATOR ON SIGNAL GRY WIRE HOT AT ALL TIMES INSTRUMENT PANEL CLUSTER (IPC) IPC/DIC FUSE 10 NOT USED ORG/ WIRE POWER DISTRIBUTION SYSTEM RED WIRE STARTER UNDER- HOOD FUSE BLOCK (ON LEFT SIDE OF ENGINE COMPT) UNDERHOOD JUNCTION BLOCK VOLTS
