Chevrolet Spark M400 (2015-2024) ign gnd Wiring diagram
This page shows the only wiring diagram for the component.ign gnd, which is found in the car Chevrolet Spark M400 (2015-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

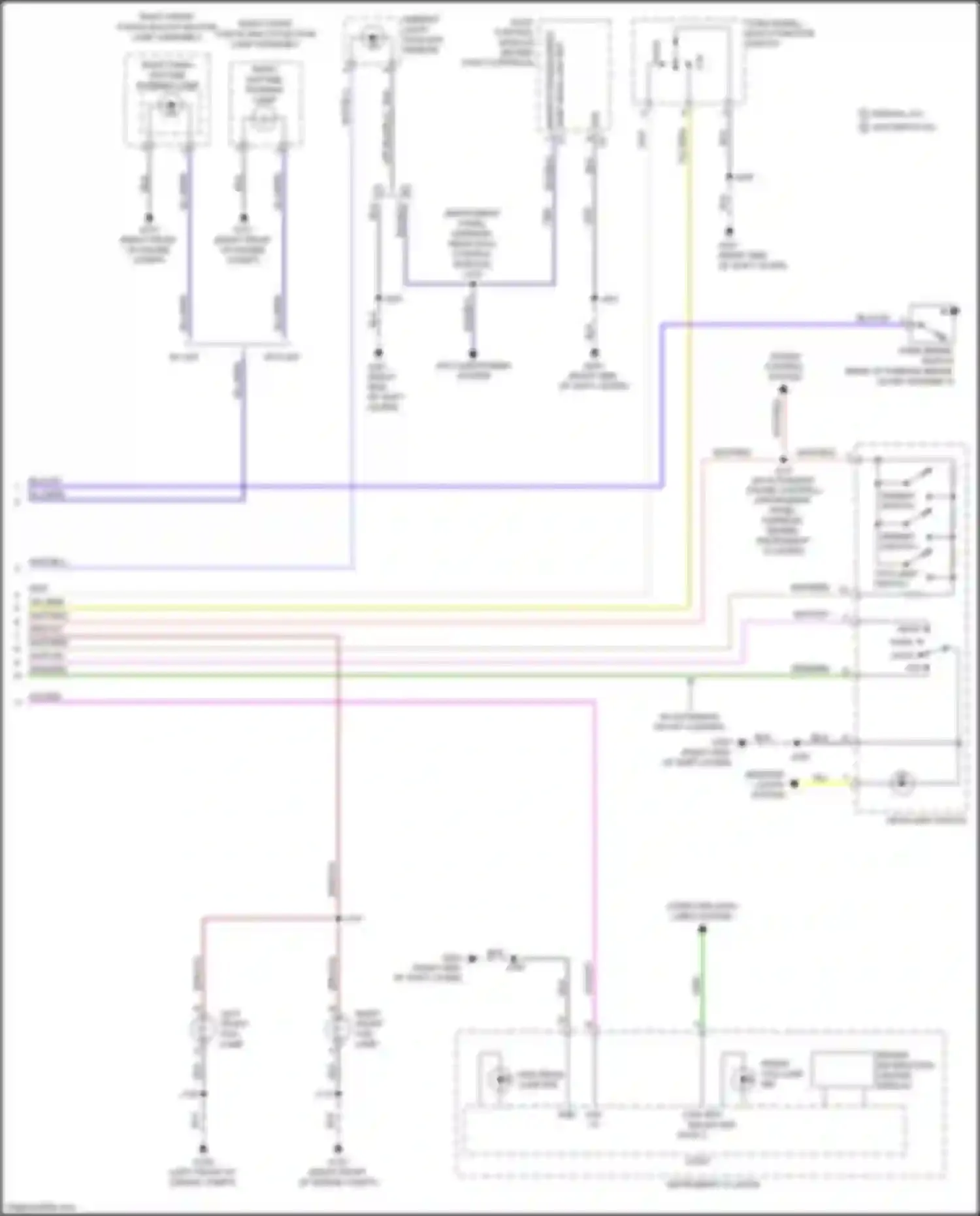

Wiring diagram ign gnd (1 of 1)
AIR CONDITIONING SYSTEM
AMBIENT LIGHT/ SUNLOAD SENSOR
AUTO
BLK WIRE
BLK/BLU WIRE
BLU/BRN WIRE
BLU/VIO WIRE
BRN/VIO WIRE
COMPUTER DATA LINES SYSTEM
CRUISE CONTROL SYSTEM
DIMMER SWITCH
DRIVER INFORMATION CENTER DISPLAY
FOG LAMP SWITCH
FRONT FOG LAMP IND
FTP
GRN WIRE
GRN/BRN WIRE
HEAD
HEADLAMP SWITCH
HIGH BEAM LAMP IND
HUMIDITY/WINDSCREEN
HVAC CONTROL MODULE
IGN GND
INSTRUMENT CLUSTER
LEFT FRONT FOG LAMP
LOGIC
LOW SPD GMLAN SER DATA 2
MANUAL A/C AUTOMATIC A/C
OFF
PARK
PARK BRAKE SWITCH
RIGHT DAYTIME RUNNING LAMP
RIGHT FRONT FASCIA MULTI-FUNCTION LAMP ASSEMBLY
RIGHT FRONT FOG LAMP
RIGHT PARK DAYTIME RUNNING LAMP
TEMP SENS LOW REF
TURN SIGNAL/ MULTI-FUNCTION SWITCH
VIO/GRY WIRE
W/ AUTOMATIC ON-OFF CONTROL
W/ LED
W/O LED
WHT WIRE
WHT/BLU WIRE
WHT/BRN WIRE
WHT/RED WIRE
WHT/VIO WIRE
YEL WIRE
YEL/BRN WIRE
Go to component -> Headlights circuit (3 of 3) -> IGN GND
