Courtesy lamps circuit for Chevrolet Spark M300 facelift (2016-2024)

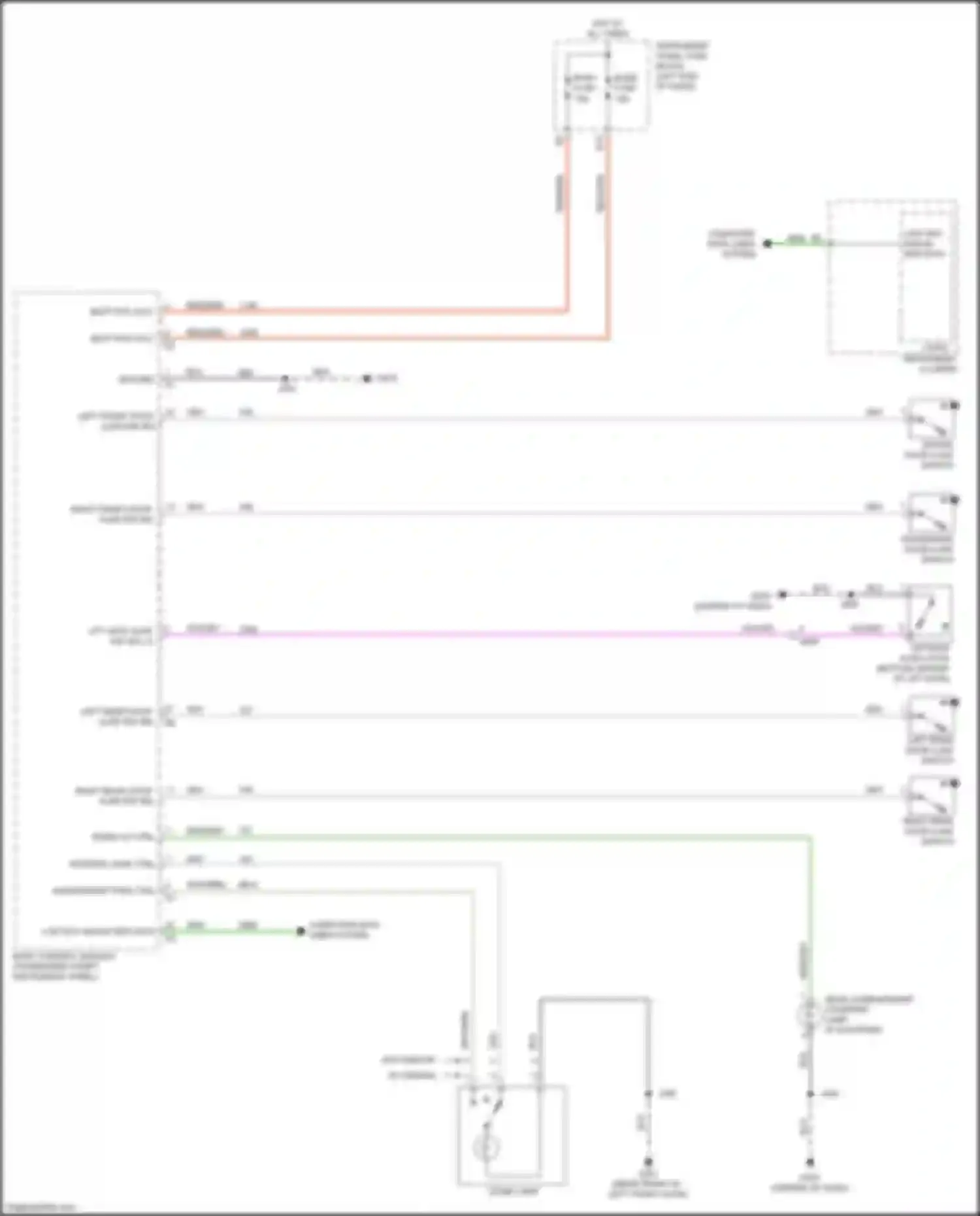

Courtesy lamps circuit
BATT POS VOLT
BLK WIRE
BODY CONTROL MODULE
COMPUTER DATA LINES SYSTEM
DOME LAMP
DRIVER DOOR AJAR SWITCH
GRN WIRE
GRN/GRY WIRE
GROUND
GRY WIRE
HOT AT ALL TIMES
INADVERTENT PWR CTRL
INSTRUMENT CLUSTER
INSTRUMENT PANEL FUSE BLOCK
INTERIOR LAMP CTRL
LEFT FRONT DOOR AJAR SW SIG
LEFT REAR DOOR AJAR SW SIG
LEFT REAR DOOR AJAR SWITCH
LIFT GATE AJAR SW SIG 1
LIFTGATE AJAR LATCH
LOGIC
LOW SPD GMLAN SER DATA
PASSENGER DOOR AJAR SWITCH
REAR COMPARTMENT COURTESY LAMP
RED/BRN WIRE
RED/GRN WIRE
RIGHT FRONT DOOR AJAR SW SIG
RIGHT REAR DOOR AJAR SW SIG
RIGHT REAR DOOR AJAR SWITCH
TRUNK LP CTRL
VIO/GRY WIRE
W/O ONSTAR W/ ONSTAR
WHT/BRN WIRE
