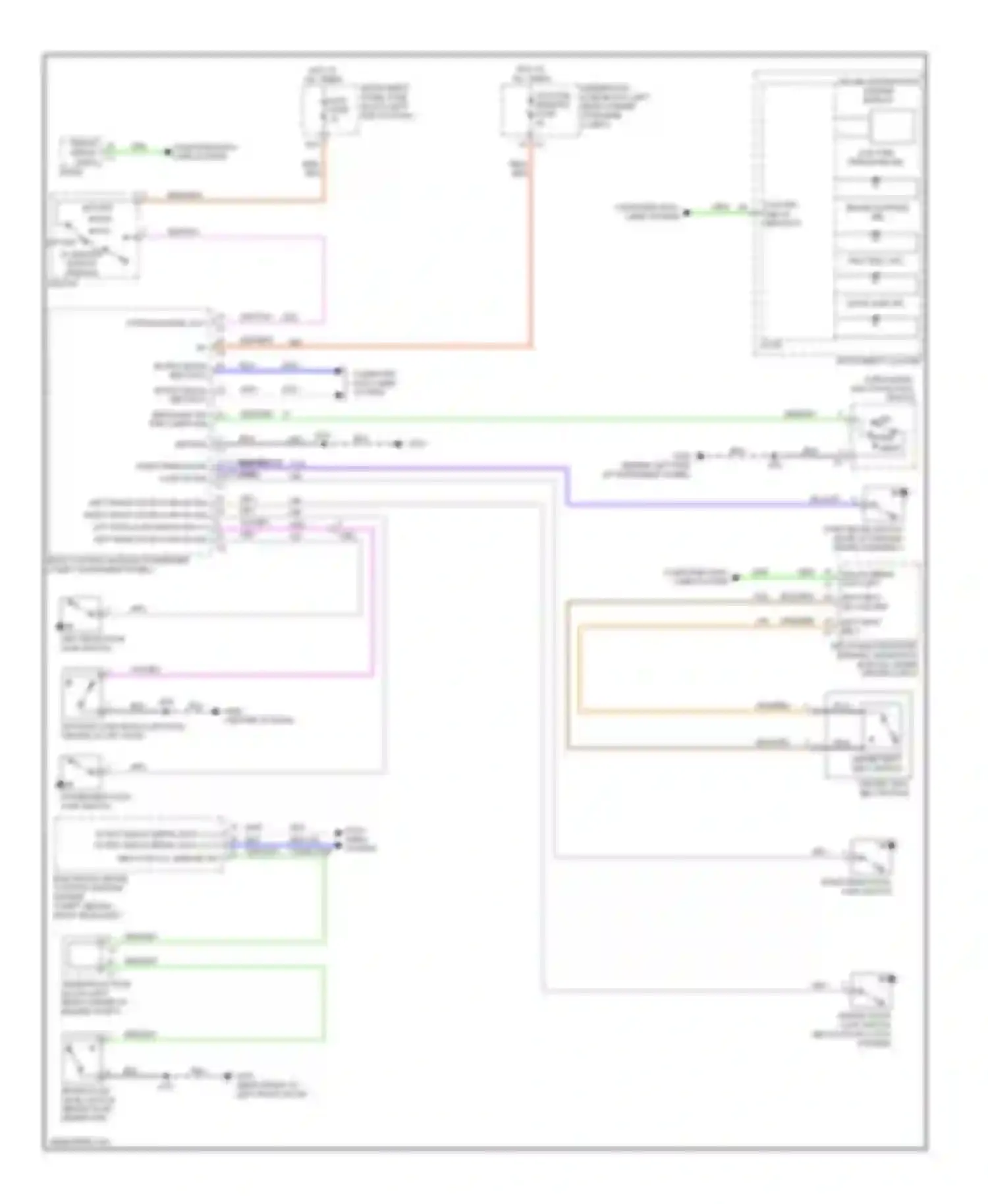

Chevrolet Spark M300 (2009-2016) off key in ignition switch ignition switch Wiring diagram

15 11 PARK BRAKE SWITCH SIG RIGHT REAR DOOR AJAR SW SIG 2501 2500 333 COMPUTER DATA LINES SYSTEM BLK WIRE BLK/ORG WIRE BLU WIRE BLU/VIO WIRE BODY CONTROL MODULE (PASSENGER COMPT INSTRUMENT PANEL) BRAKE FLUID LEVEL SWITCH (BRAKE FLUID RESERVOIR) BRAKE WARNING IND BRN WIRE COMPUTER DATA LINES SYSTEM DLIS FUSE DOOR AJAR IND DRIVER DOOR AJAR SWITCH (BELOW DOOR LATCH STRIKER) DRIVER INFORMATION CENTER DISPLAY DRIVER SEAT BELT BUCKLE DRIVER SEAT BELT SWITCH ELECTRONIC BRAKE CONTROL MODULE (ENGINE COMPT, BEHIND RIGHT HEADLAMP) GMLAN SERIAL DATA GMLAN SERIAL DATA LEFT SEAT BELT SW LOW REF GRN WIRE GRN/GRY WIRE GROUND GRY WIRE HEADLAMP SW PRK LAMPS SIG HI SPD GMLAN SER DATA - HOT AT ALL TIMES INFLATABLE RESTRAINT SENSING, DIAGNOSTIC MODULE (UNDER DRIVER'S SEAT) INSTRUMENT CLUSTER INSTRUMENT PANEL FUSE BLOCK (LEFT END OF DASH) LEFT REAR DOOR AJAR SWITCH LEFT SEAT BELT SW LIFTGATE AJAR SWITCH (BOTTOM CENTER OF LIFT GATE) LOGIC LOW SPD GMLAN LOW TIRE PRESSURE IND NCA WIRE OFF OFF KEY IN IGNITION SWITCH IGNITION SWITCH OFF/RUN/CRANK VOLT ORG/BRN WIRE PARK BRAKE SWITCH (BASE OF PARKING BRAKE ASSEMBLY) PARK HEAD PASSENGER DOOR AJAR SWITCH RADIO RED WIRE RED/BRN WIRE RED/GRN WIRE RIGHT REAR DOOR AJAR SWITCH RUN WIRE SEAT BELT IND SER DATA TURN SIGNAL/ MULTI-FUNCTION SWITCH UNDERHOOD FUSE BLOCK (LEFT REAR CORNER OF ENGINE COMPT) VIO/GRY WIRE VOLTAGE SENSING FUSE WHT WIRE WHT/VIO WIRE
