Chevrolet Sonic I (2011-2016) rap rly coil ctrl Wiring diagram
This page shows the only wiring diagram for the component.rap rly coil ctrl, which is found in the car Chevrolet Sonic I (2011-2016). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

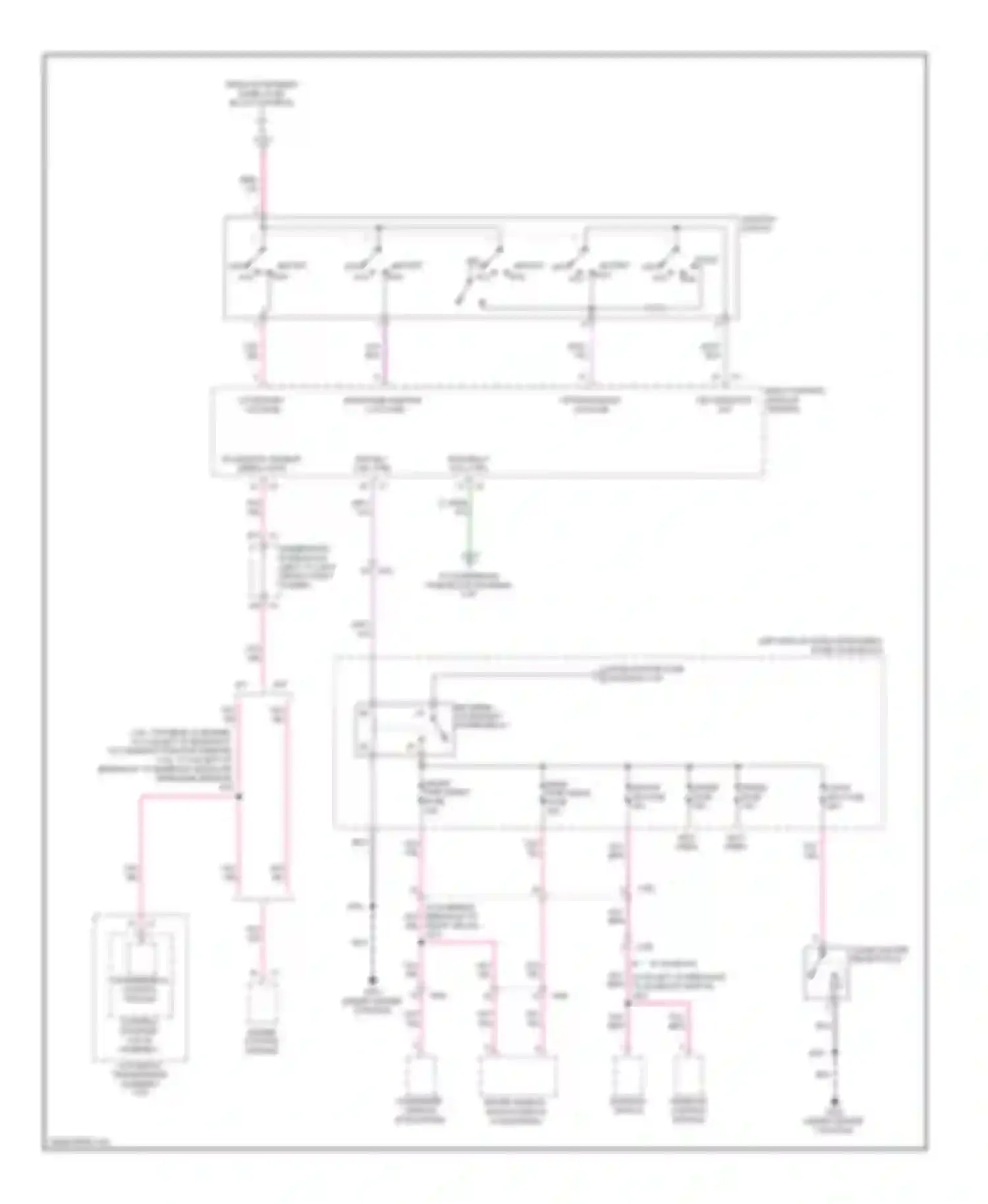

Wiring diagram rap rly coil ctrl (1 of 1)
A/T M/T
ACCESSORY VOLTAGE
ACCESSORY WAKEUP SERIAL DATA
AUTOMATIC TRANSMISSION ASSEMBLY (A/T)
BLK WIRE
BODY CONTROL MODULE IGNITION KEY RESISTOR SIG
BRN WIRE
CIGAR APO FUSE
CIGAR LIGHTER RECEPTACLE
CONTROL SOLENOID VALVE ASSEMBLY
ENGINE CONTROL MODULE
FROM INSTRUMENT PANEL FUSE BLOCK (DIAGRAM 3 OF 4)
FROM ONSTAR FUSE (DIAGRAM 3 OF 4)
FRONT PWR WNDW
FUSE
GRY WIRE
IGNITION SWITCH
LT GRN WIRE
OFF
OFF/RUN/CRANK VOLTAGE
PASSENGER DRIVER WINDOW WINDOW SWITCH SWITCH (IF EQUIPPED) (IF EQUIPPED)
POWER RELAY
RAP RLY COIL CTRL
REAR PWR WNDW
RED WIRE
RETAINED ACCESSORY
RUN RELAY COIL CTRL
RUN WIRE
RUN/CRANK IGNITION 1 VOLTAGE
S/ROOF SW FUSE
SPARE FUSE SPARE FUSE
SUNROOF CONTROL MODULE
SUNROOF SWITCH
TO UNDERHOOD FUSE BLOCK (DIAGRAM 2 OF 4)
TRANSMISSION CONTROL MODULE
UNDERHOOD FUSE BLOCK (NEXT TO LEFT FRONT STRUT TOWER)
VIO WIRE
W/ SUNROOF
WHT WIRE
YEL WIRE
Go to component -> Power distribution circuit (4 of 4) -> RAP RLY COIL CTRL
