Chevrolet Silverado T1XX (2019-2022) park brake sw monitor sig 1 Wiring diagram
This page shows the only wiring diagram for the component.park brake sw monitor sig 1, which is found in the car Chevrolet Silverado T1XX (2019-2022). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

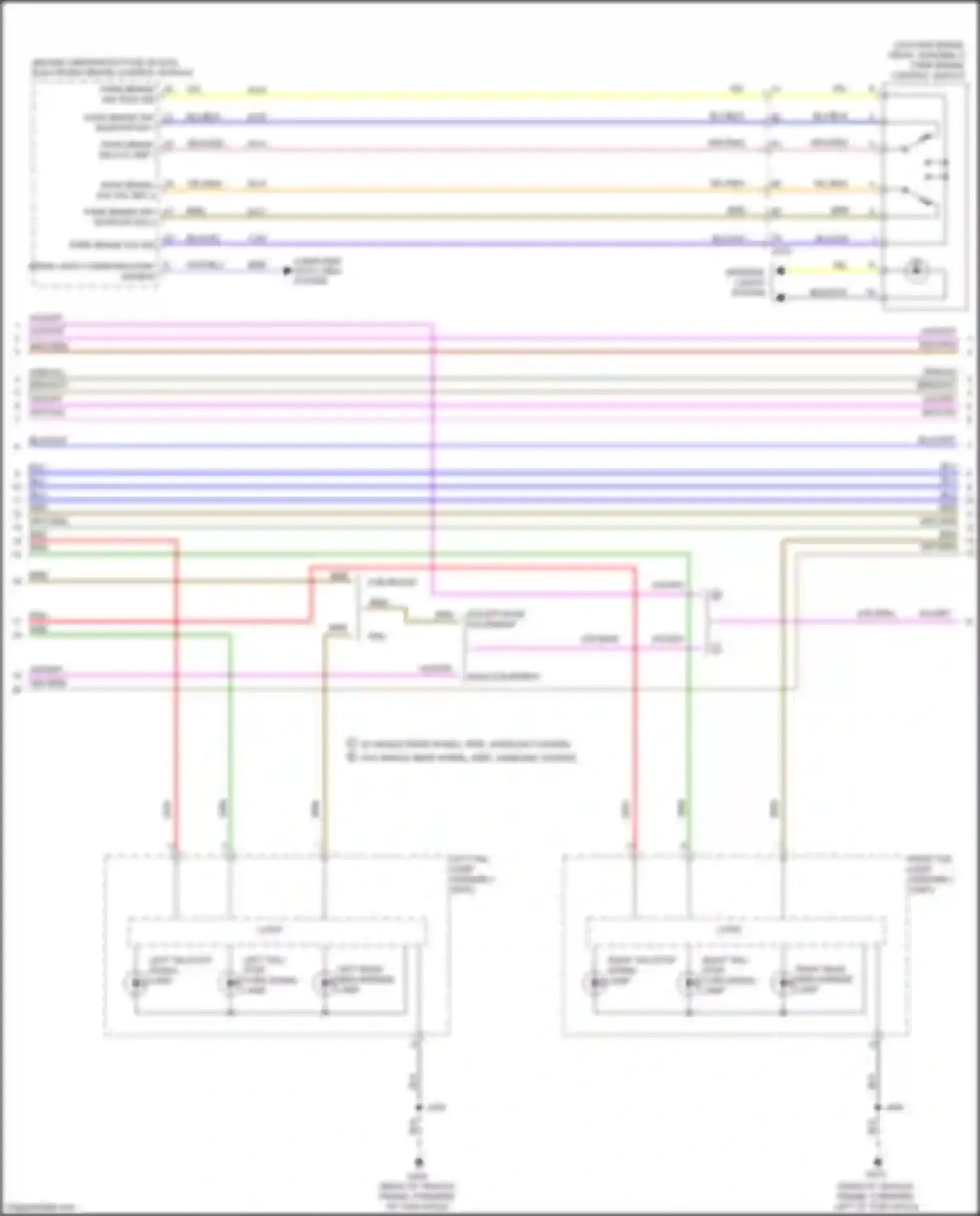

Wiring diagram park brake sw monitor sig 1 (1 of 1)
BASE EQUIPMENT
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/BLK WIRE
BLU/VIO WIRE
BLU/WHT WIRE
BRN WIRE
BRN/WHT WIRE
CHEVROLET
COMPUTER DATA LINES SYSTEM
EXCEPT BASE EQUIPMENT
GMC
GRN WIRE
GRN/VIO WIRE
GRY/BRN WIRE
GRY/GRN WIRE
GRY/RED WIRE
LEFT REAR SIDE MARKER LAMP
LEFT TAIL LAMP ASSEMBLY
LEFT TAIL/STOP SIGNAL LAMP
LEFT TAIL/STOP, TURN SIGNAL LAMP
LOGIC
PARK BRAKE CONTROL SWITCH
PARK BRAKE SW MONITOR SIG 1
PARK BRAKE SW MONITOR SIG 2
PARK BRAKE SW SIG
PARK BRAKE SW TEST SIG
PARK BRAKE SW VOL REF 1
PARK BRAKE SW VOL REF 2
RED WIRE
RED/GRN WIRE
RIGHT REAR SIDE MARKER LAMP
RIGHT TAIL LAMP ASSEMBLY
RIGHT TAIL/STOP SIGNAL LAMP
RIGHT TAIL/STOP, TURN SIGNAL LAMP
SERIAL DATA COMMUNICATION ENABLE
VIO/GRY WIRE
VIO/WHT WIRE
W/ SINGLE REAR WHEEL, RIDE, HANDLING CHASSIS
W/O SINGLE REAR WHEEL, RIDE, HANDLING CHASSIS
WHT/BLU WIRE
WHT/VIO WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Exterior lamps circuit (5 of 8) -> PARK BRAKE SW MONITOR SIG 1
