Chevrolet Silverado T1XX (2019-2022) custom, trail boss lt, ltz, rst, trail boss custom package Wiring diagrams
This page contains all the electrical diagrams for the component. custom, trail boss lt, ltz, rst, trail boss custom package, in which he is found in the car Chevrolet Silverado T1XX (2019-2022). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

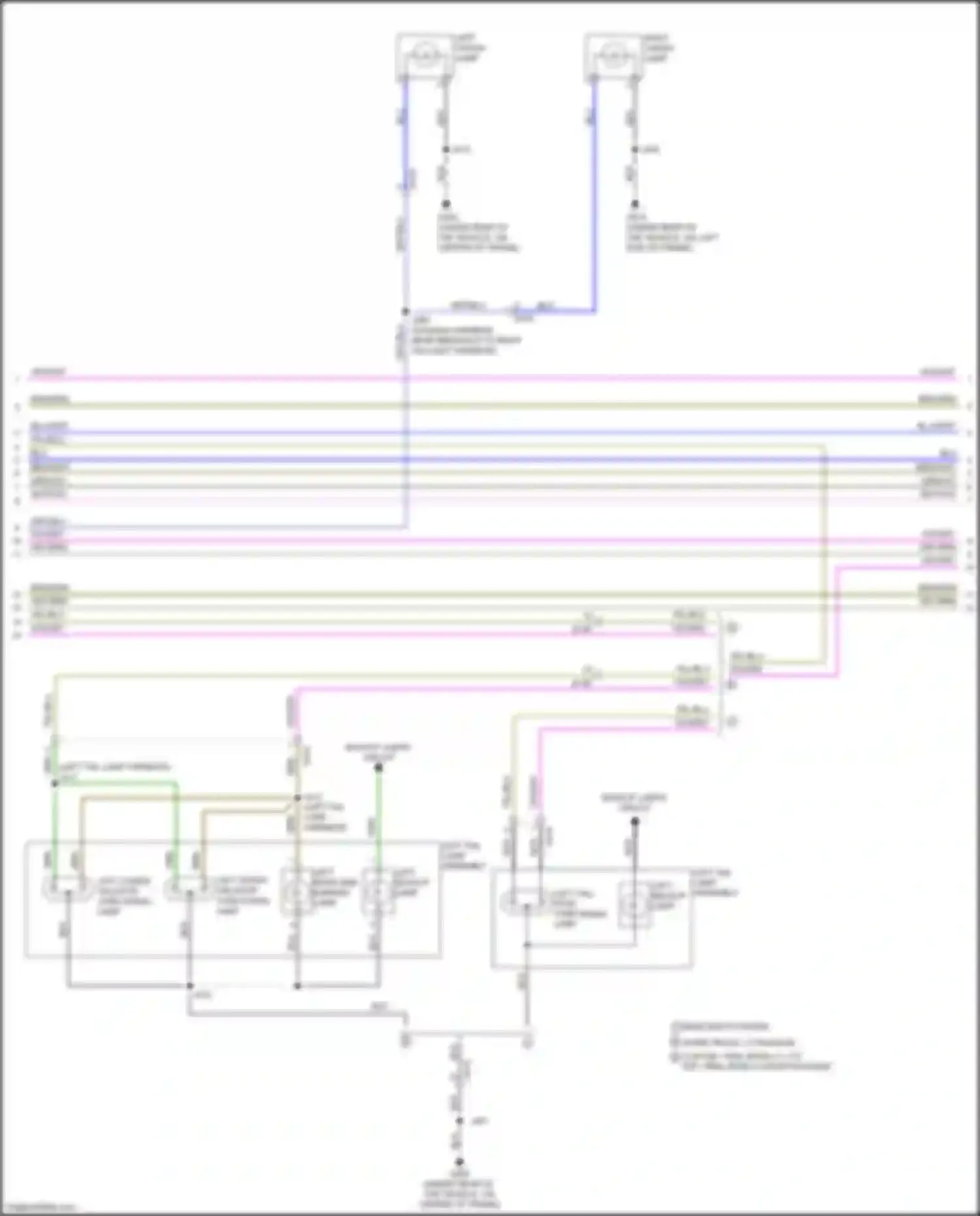

Wiring diagram custom, trail boss lt, ltz, rst, trail boss custom package (1 of 2)
Go to component -> Exterior lamps circuit, except high country package (4 of 7) -> CUSTOM, TRAIL BOSS LT, LTZ, RST, TRAIL BOSS CUSTOM PACKAGE

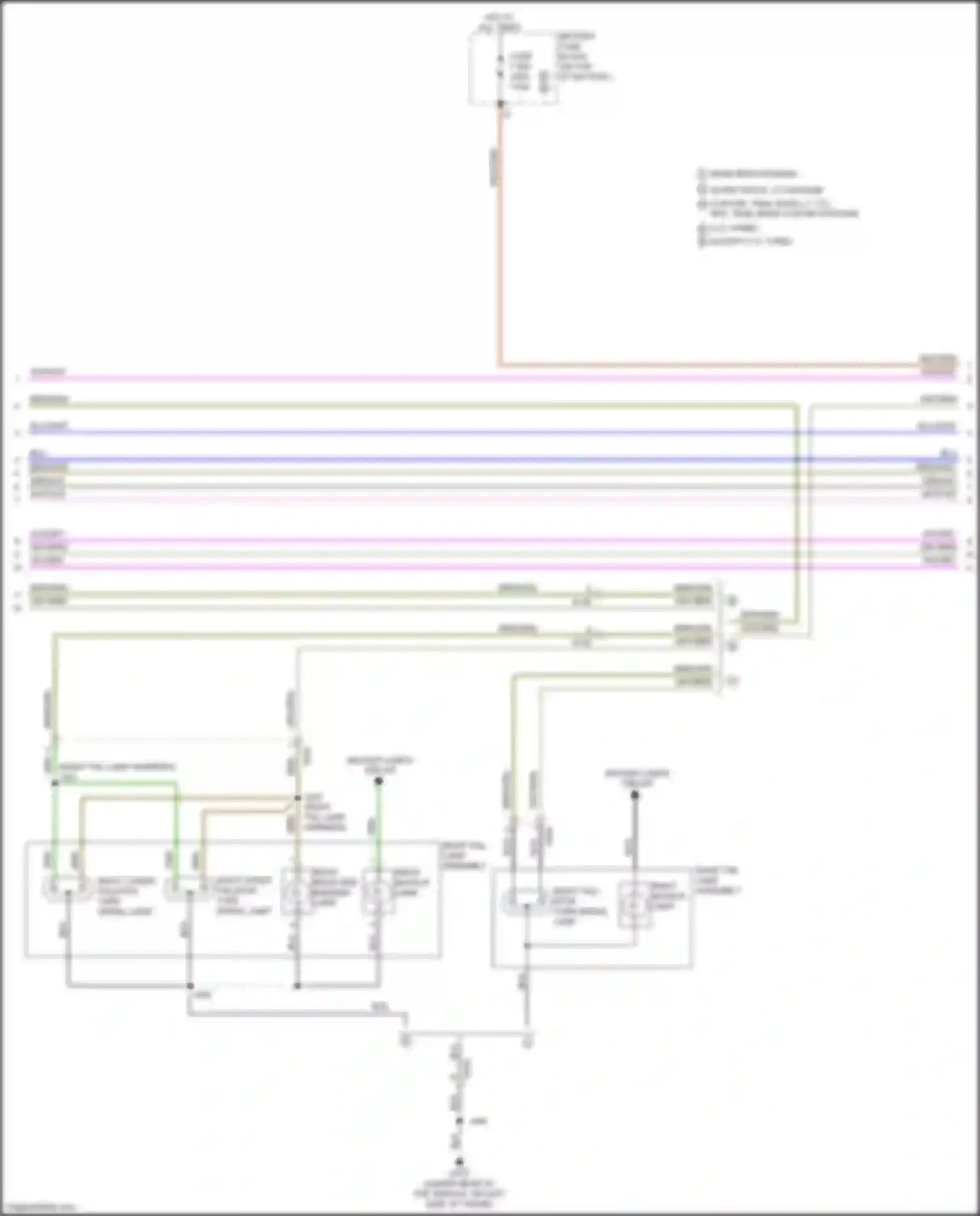

Wiring diagram custom, trail boss lt, ltz, rst, trail boss custom package (2 of 2)
Go to component -> Exterior lamps circuit, except high country package (5 of 7) -> CUSTOM, TRAIL BOSS LT, LTZ, RST, TRAIL BOSS CUSTOM PACKAGE
