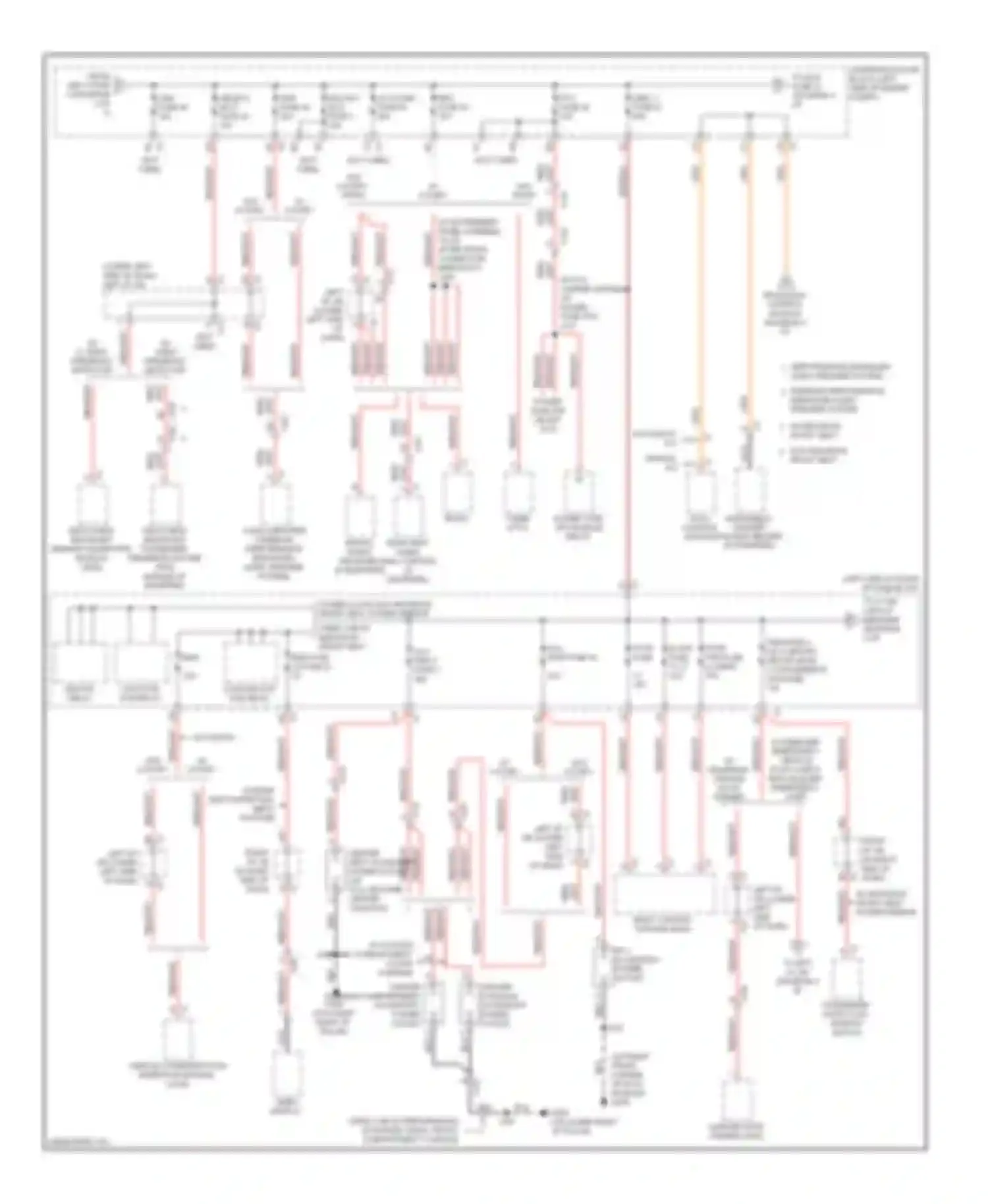

Chevrolet Silverado GMT K2XX (2013-2015) aux pwr 2 fuse 2 Wiring diagram

2 OF 5) AIR BAG BATT FUSE 42 ALC/COMP FUSE 54 AMP FUSE 38 AUDIO AMPLIFIER (PREMIUM PERFORMANCE ENHANCED AUDIO SPEAKER SYSTEM) AUTOMATIC A/C AUX PWR 2 FUSE 2 AUX PWR FUSE 16 BLK WIRE BODY CONTROL MODULE (BCM) CENTER CONSOLE ACCESSORY POWER OUTLET CENTER CONSOLE COMPARTMENT ACCESSORY POWER OUTLET CENTER SEAT ACCESSORY POWER OUTLET (W/ FULL FEATURE CENTER CONSOLE) CHIME POWER TAKE OFF MODULE (PTO) RELAY CREW CAB W/ INDIVIDUAL FRONT SEAT CREW CAB W/ PERFORMANCE EXHANCED AUDIO, FRONT COMPARTMENT CONSOLE DIGITAL RADIO RECEIVER (IF EQUIPPED) ESC/ALC EXH FUSE 1 FROM ABS-2 FUSE 8 (DIAGRAM 2 OF 5) FROM BODY CONTROL MODULE (DIAGRAM 4 OF 5) GARAGE DOOR OPENER (GDO) HVAC CONTROL MODULE I/P 2 ACCESSORY POWER OUTLET INFLATABLE RESTRAINT PASSENGER PRESENCE SYSTEM (PPS) MODULE (IF EQUIPPED) INFLATABLE RESTRAINT SENSING, DIAGNOSTIC MODULE (SDM) INFO RSE FUSE 19 FUSE 22 LBEC 2 FUSE 67 LEFT I/P J/B (LOWER LEFT SIDE OF DASH) LGM FUSE 66 LOCK PCB UNLOCK PCB RELAY RELAY LOCK/UNLOCK PCB RELAY MANUAL A/C NCA WIRE ORG/ WIRE PASSENGER DOOR LOCK/ WINDOW SWITCH PDM FUSE 9 (W/ COMFORT, DECOR LEVEL 3 CONVENIENCE PACKAGE) PERFORMANCE ENHANCED AUDIO SPEAKER SYSTEM POWER LOCKS W/O INDIVIDUAL FRONT SEAT, POWER MIRROR POWER TAKE OFF (BLUNT CUT) PREMIUM PERFORMANCE ENHANCED AUDIO SPEAKER SYSTEM PTO FUSE 44 RADIO RDO FUSE 39 REAR SEAT AUDIO (RSA) CONTROL (IF EQUIPPED) RED WIRE RED/ WHT WIRE RED/BLK WIRE RED/WHT WIRE RIGHT I/P J/B (IN RIGHT END OF DASH) STOP IS LPS FUSE 17 LT STOP TRN FUSE 6 LAMPS FUSE TO DLIS FUSE 32 (DIAGRAM 4 OF 5) TO LEFT I/P J/B (DIAGRAM 2 OF 5) TO LT DR CIRCUIT BREAKER (DIAGRAM UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT) VEHICLE COMMUNICATION INTERFACE MODULE (VCIM) VIDEO DISPLAY W/ CHILD PRESENCE DETECTOR W/ CUSTOM FRONT COMPARTMENT FLOOR CONSOLE W/ INDIVIDUAL FRONT SEAT W/ INDIVIDUAL FRONT SEAT, POWER MIRROR W/ LUXURY W/ ONSTAR W/ REAR SEAT ENTERTAIN- MENT PACKAGE W/O CHILD PRESENCE DETECTOR W/O INDIVIDUAL FRONT SEAT W/O LUXURY W/O LUXURY, RADIO W/O RADIO W/O W/ LUXURY LUXURY WHT RED/ WIRE WHT WIRE WINDSHIELD WASHER SOLVENT HEATER (IF EQUIPPED)
