Chevrolet Silverado 3500 HD (2007-2012) front courtesy/ reading lamps Wiring diagram
This page shows the only wiring diagram for the component.front courtesy/ reading lamps, which is found in the car Chevrolet Silverado 3500 HD (2007-2012). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

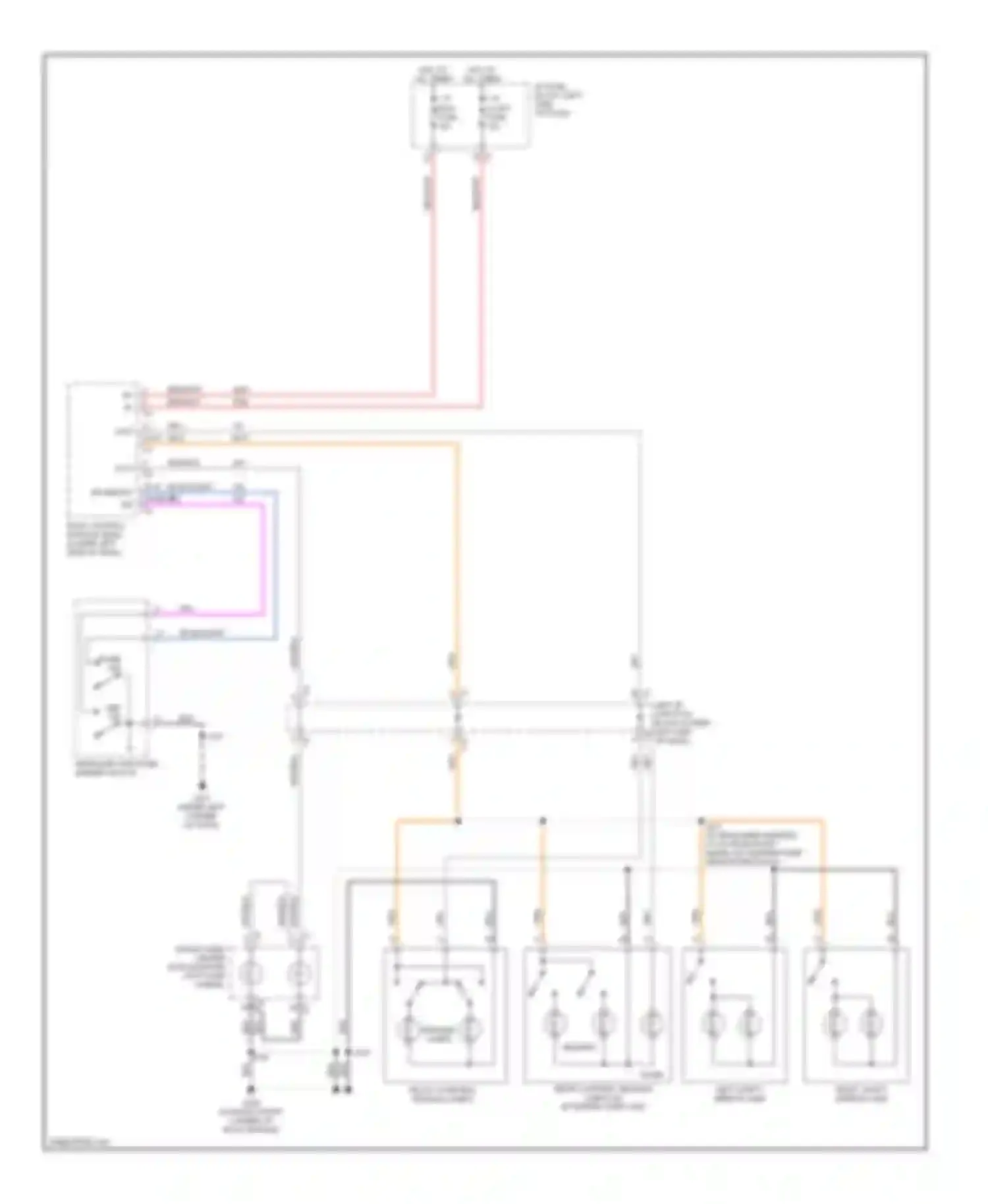

Wiring diagram front courtesy/ reading lamps (1 of 1)
18 25 DOME LP SW DEFEAT SW PPL
3 2 B+ B+
5 1 VOLT VOLT
BCM FUSE
BLK WIRE
BODY CONTROL MODULE (BCM) (LOWER LEFT SIDE OF DASH)
CARGO LAMP/ CENTER HIGH MOUNTED STOP LAMP (CHMSL)
DEF SW
DK BLU/WHT WIRE
DOME
DOME SW
FRONT COURTESY/ READING LAMPS
GRY WIRE
HEADLAMP AND PANEL DIMMER SWITCH
HOT AT ALL TIMES
I/P FUSE BLOCK (LEFT SIDE OF DASH,
IS LPS FUSE
LEFT I/P JUNCTION BLOCK (LOWER LEFT SIDE OF DASH)
LEFT VANITY MIRROR LAMP
ORG/ WIRE
PPL
READING
READING LAMPS
REAR COURTESY READING LAMPS (W/ EXTENDED CREW CAB)
RED/WHT WIRE
RIGHT VANITY MIRROR LAMP
VOLT
WHT/BLK WIRE
Go to component -> Courtesy lamps circuit -> FRONT COURTESY/ READING LAMPS
