Chevrolet RV Cutaway G30 (1985-1994) trans- mission range indicator lamp Wiring diagram
This page shows the only wiring diagram for the component.trans- mission range indicator lamp, which is found in the car Chevrolet RV Cutaway G30 (1985-1994). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

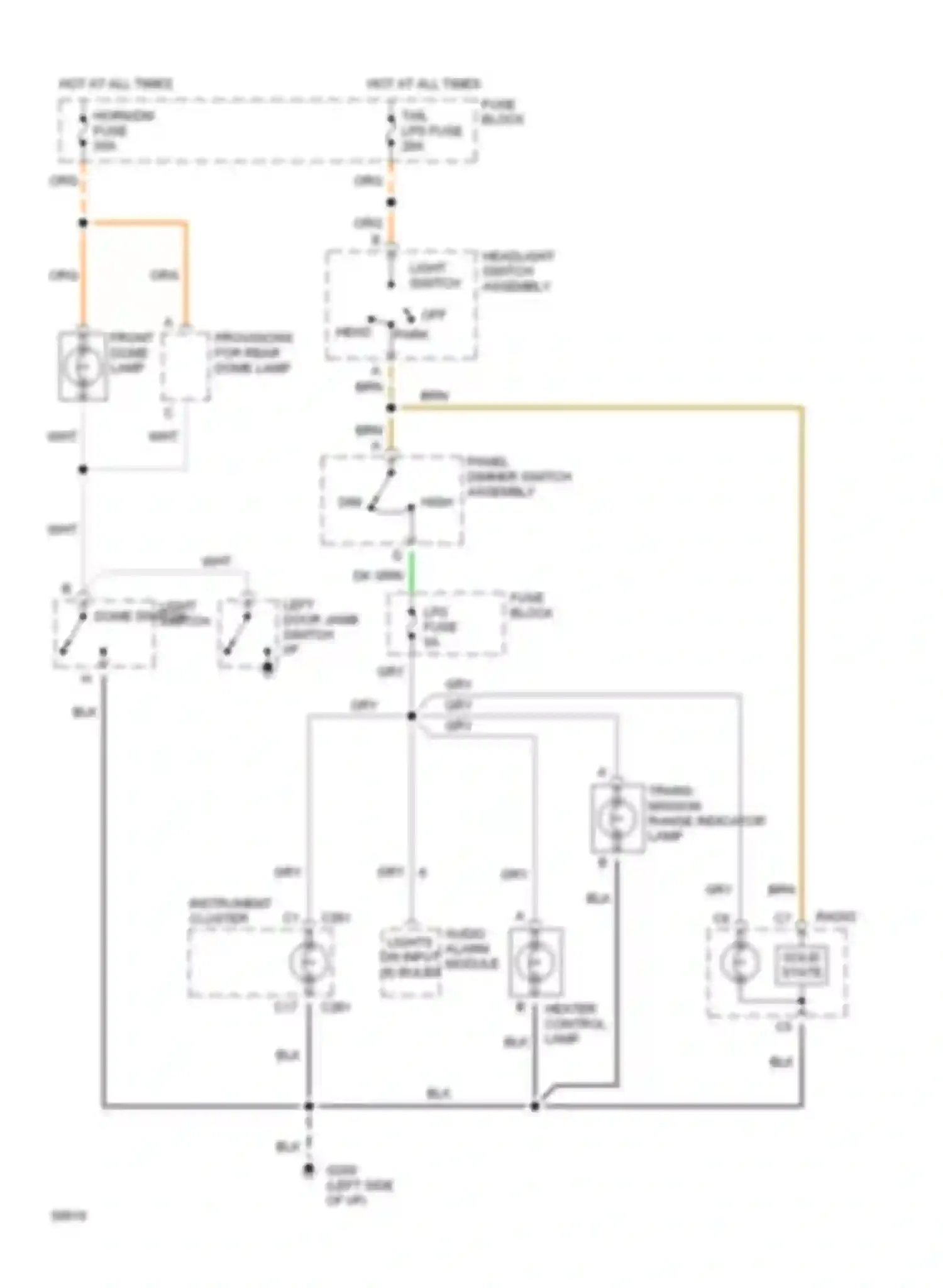

Wiring diagram trans- mission range indicator lamp (1 of 1)
AUDIO ALARM MODULE LIGHTS ON INPUT (6) BULBS
BLK WIRE
BRN WIRE
DK GRN WIRE
FRONT DOME LAMP
FUSE BLOCK
FUSE BLOCK LEFT DOOR JAMB SWITCH I/P LPS FUSE
GRY WIRE
HEADLIGHT SWITCH ASSEMBLY
HEATER CONTROL LAMP
HIGH DIM
HORN/DM FUSE
HOT AT ALL TIMES
INSTRUMENT CLUSTER
LIGHT SWITCH
LIGHT SWITCH DOME SWITCH
OFF HEAD PARK
ORG/ WIRE
PANEL DIMMER SWITCH (ASSEMBLY)
PROVISIONS FOR REAR DOME LAMP
RADIO
SOLID STATE
TAIL LPS FUSE
TRANS- MISSION RANGE INDICATOR LAMP
WHT WIRE
Go to component -> Interior light circuit, cutaway chassis -> TRANS- MISSION RANGE INDICATOR LAMP
