Chevrolet Prizm I (1997-2002) rear defogger indicator Wiring diagram
This page shows the only wiring diagram for the component.rear defogger indicator, which is found in the car Chevrolet Prizm I (1997-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

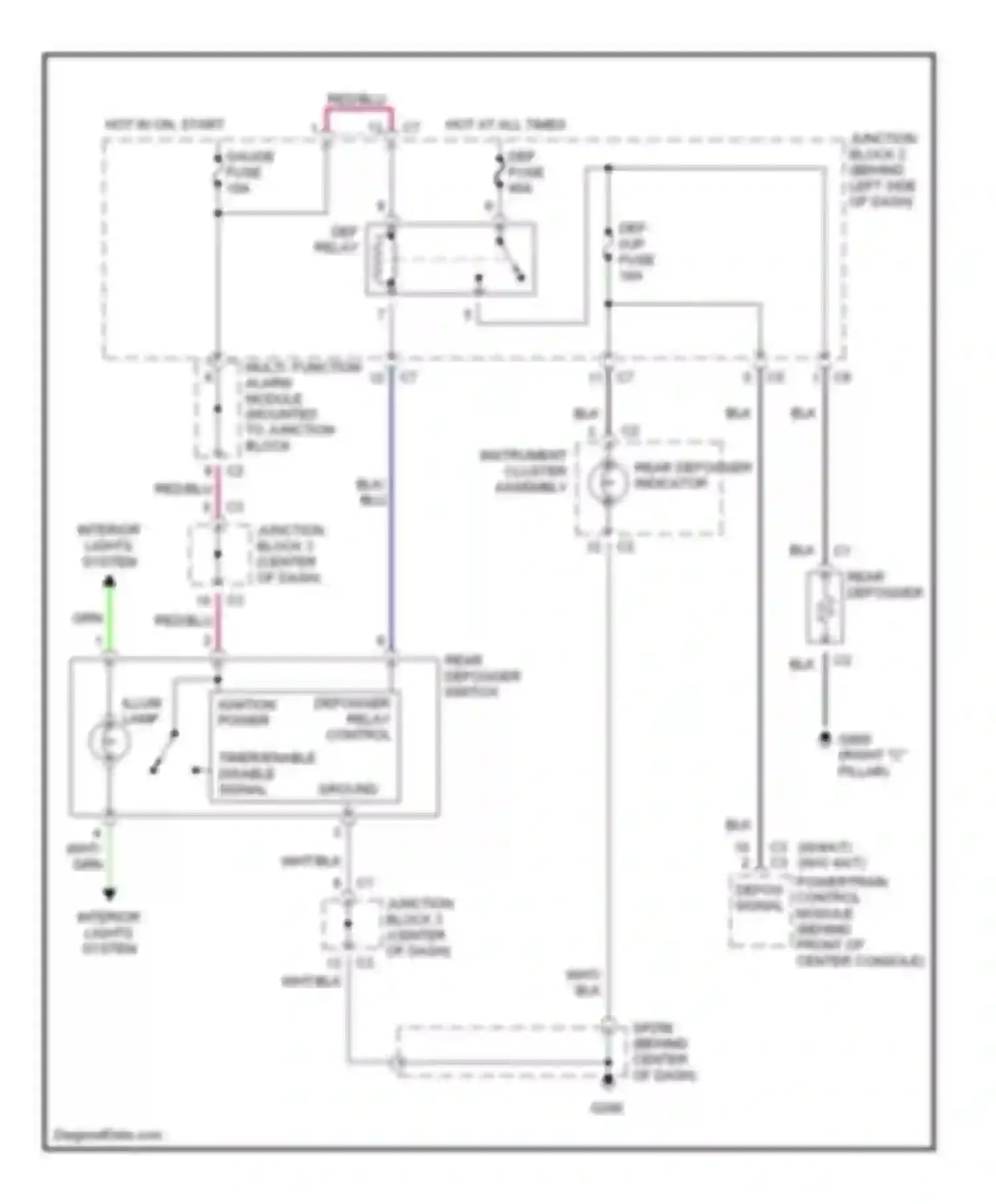

Wiring diagram rear defogger indicator (1 of 1)
BLK WIRE
BLU WIRE
DEF FUSE
DEF RELAY
DEF- I/UP FUSE
DEFOGGER RELAY CONTROL
GAUGE FUSE
GRN WIRE
GROUND
HOT AT ALL TIMES
HOT IN ON, START
IGNITION POWER
ILLUM LAMP
INSTRUMENT CLUSTER ASSEMBLY
JUNCTION BLOCK 2 (BEHIND LEFT SIDE OF DASH)
JUNCTION BLOCK 3 (CENTER OF DASH)
MULTI- FUNCTION ALARM MODULE (MOUNTED TO JUNCTION BLOCK 2)
POWERTRAIN CONTROL MODULE (BEHIND FRONT OF CENTER CONSOLE) DEFOG SIGNAL
REAR DEFOGGER
REAR DEFOGGER INDICATOR
REAR DEFOGGER SWITCH
RED/BLU WIRE
TIMER/ENABLE DISABLE SIGNAL
WHT WIRE
WHT/BLK WIRE
Go to component -> Defogger circuit -> REAR DEFOGGER INDICATOR
