Lumbar circuit, with bucket seat for Chevrolet Pickup C1500 (1988-1999)

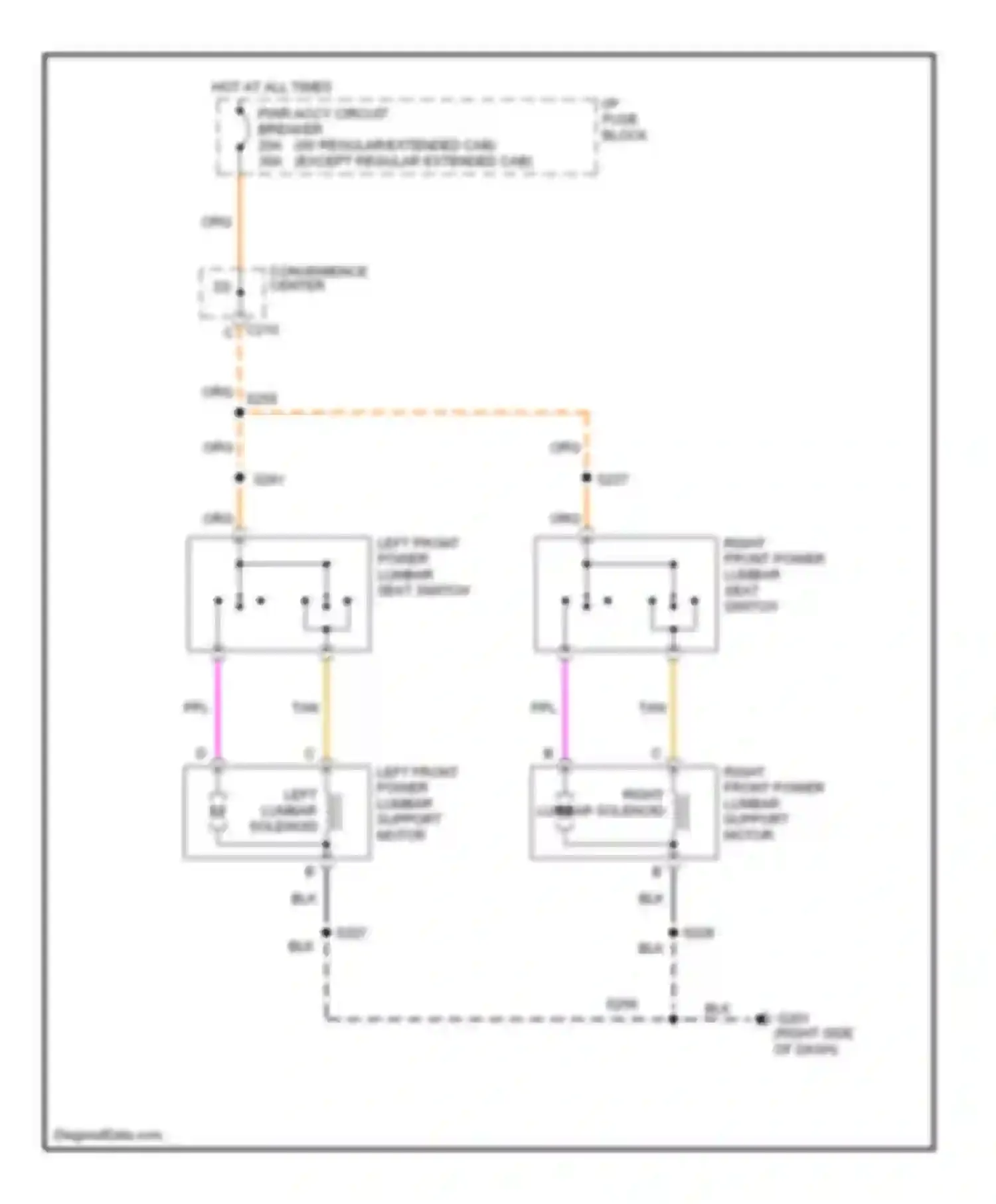

Lumbar circuit, with bucket seat
BLK WIRE
CONVENIENCE CENTER
HOT AT ALL TIMES
I/P FUSE BLOCK
LEFT FRONT POWER LUMBAR SEAT SWITCH
LEFT FRONT POWER LUMBAR SUPPORT MOTOR
LEFT LUMBAR SOLENOID
ORG/ WIRE
PPL
PWR-ACCY CIRCUIT BREAKER
RIGHT FRONT POWER LUMBAR SEAT SWITCH
RIGHT FRONT POWER LUMBAR SUPPORT MOTOR
RIGHT LUMBAR SOLENOID
TAN WIRE
