Chevrolet Malibu VIII facelift (2013-2016) hybrid/ev powertrain control module Wiring diagrams

This page contains all the electrical diagrams for the component. hybrid/ev powertrain control module, in which he is found in the car Chevrolet Malibu VIII facelift (2013-2016). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

Wiring diagram hybrid/ev powertrain control module (1 of 9)

Go to component -> 2.4l vin r, transmission circuit (1 of 2) -> HYBRID/EV POWERTRAIN CONTROL MODULE

Wiring diagram hybrid/ev powertrain control module (2 of 9)

ACC WAKEUP SERIAL DATA AUTOMATIC TRANSMISSION ASSEMBLY BATT POS VOLT BLK WIRE BLK/BRN WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BRAKE PEDAL POSITION SENSOR BRK POS SNSR SIG COMPUTER DATA LINES SYSTEM CONTROL SOLENOID CONTROL SOLENOID VALVE ASSEMBLY ENGINE CONTROL MODULE (ECM) (LEFT SIDE OF ENGINE COMPT) ENGINE CONTROL MODULE (ECM) (TOP OF TRANSMISSION) EXCEPT HYBRID GRN WIRE GRY WIRE HI SPD GMLAN SER DATA - HIGH SPEED GMLAN SERIAL DATA (+) HOT AT ALL TIMES HYBRID/EV BATTERY PACK (BEHIND REAR SEATS IN LUGGAGE COMPT) HYBRID/EV POWERTRAIN CONTROL MODULE IGN ISS HIGH ISS LOW LOW RANGE REF SW SIG P LOW REF OSS HIGH OSS LOW PARK/ NEUTRAL SIG PC 1 SOL PC 2 SOL PC 3 SOL PC 4 SOL PC 5 SOL PRESSURE CONTROL SOLENOID VALVE 1 PRESSURE CONTROL SOLENOID VALVE 2 PRESSURE CONTROL SOLENOID VALVE 3 PRESSURE CONTROL SOLENOID VALVE 4 PRESSURE CONTROL SOLENOID VALVE 5 RED WIRE RED/GRN WIRE RUN/CRANK IGN 1 VOLT SHIFT SOLENOID VALVE 1 SIG GND SNSR 5 VOLT REF SNSR LOW REF SS 1 STARTER/GENERATOR CONTROL MODULE TCC SOL TCM BATT FUSE TFP 1 TFP 3 TFP 4 TFP 5 TFT TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID VALVE TRANSMISSION CONTROL MODULE TRANSMISSION FLUID PRESSURE SWITCH TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION INPUT SHAFT SPEED SENSOR TRANSMISSION INTERNAL MODE SWITCH TRANSMISSION OUTPUT SHAFT SPEED SENSOR TRNS TRNS RANGE SW SIG A TRNS RANGE SW SIG B TRNS RANGE SW SIG C TRNS RANGE SW SIG P TRNS TRNS RANGE RANGE SW SW SIG C SIG B UNDERHOOD FUSE BLOCK UNDERHOOD FUSE BLOCK (LEFT SIDE OF BATTERY) VALVE ASSEMBLY ISS ISS HIGH LOW VIO/BLK WIRE VIO/YEL WIRE WHT WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/LT GRN WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE

Go to component -> 2.5l vin l, transmission circuit (1 of 2) -> HYBRID/EV POWERTRAIN CONTROL MODULE

Wiring diagram hybrid/ev powertrain control module (3 of 9)

1 3 5 HI SPD GMLAN SERIAL DATA - HI SPD GMLAN SERIAL DATA + 2.0L 2.5L 2.4L 36 37 HI SPD GMLAN SERIAL DATA + HI SPD GMLAN SERIAL DATA - 7493 7494 COMPUTER DATA LINES SYSTEM ABS IND. BATT POS VOLT BLK WHT/GRN WIRE BLK WIRE BLK/BRN WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/VIO WIRE BLU/YEL WIRE BODY CONTROL MODULE (BEHIND LEFT END OF DASH) BODY CONTROL MODULE (BEHIND LEFT SIDE OF DASH) BRAKE BOOSTER VACUUM SENSOR (W/ STOP/START SYSTEM) (ON BRAKE BOOSTER) BRAKE IND BRAKE PEDAL POSITION SENSOR BRAKE PEDAL POSITION SENSOR (TOP OF BRAKE PEDAL ASSEMBLY) BRK APPLY SENS LOW REF BRK APPLY SENS SIG BRK APPLY SENS SPLY VOLT BRK POSITION SENS SIG BRK VACUUM SENS SIG BRN WIRE COMBINED VEH INERTIAL SENS SPLY VOLT COMPUTER DATA LINES SYSTEM CRUISE/ETC/TCC BRK SIG DRIVER INFORMATION CENTER DISPLAY ENGINE CONTROL MODULE (ECM) (LEFT SIDE OF ENGINE COMPT) ENGINE CONTROL MODULE (ECM) (TOP OF TRANSMISSION) FUSE 21 GRN WIRE GRN/BRN WIRE GROUND GROUND DISTRIBUTION SYSTEM HI SPD GMLAN SERIAL DATA HOT AT ALL TIMES HYBRID/EV BATTERY PACK (BEHIND REAR SEATS IN LUGGAGE COMPT) HYBRID/EV POWERTRAIN CONTROL MODULE INSTRUMENT CLUSTER INSTRUMENT PANEL FUSE BLOCK (LEFT SIDE OF DASH) INSTRUMENT PANEL MULTI- FUNCTION SWITCH LOGIC LOW REF LOW REF BRK POSITION SENS SIG LOW REF BRK VACUUM SENS SIG CRUISE/ETC/TCC BRK SIG MULTI-AXIS ACCELERATION SENSOR (BELOW FLOOR CONSOLE) PARK BRAKE SW SIG PARK BRAKE SWITCH PARK BRAKE SWITCH (MOUNTED TO SHIFT LEVER BEZEL) RED/GRY WIRE RED/WHT WIRE STARTER/GENERATOR CONTROL MODULE TCS IND TCS OFF IND TRACTION CONTROL SWITCH TRACTION CTRL SW SIG VDC IND WHT WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/LT GRN WIRE WHT/RED WIRE YEL WIRE YEL/RED WIRE YEL/VIO WIRE

Go to component -> Anti-lock brakes circuit (2 of 2) -> HYBRID/EV POWERTRAIN CONTROL MODULE

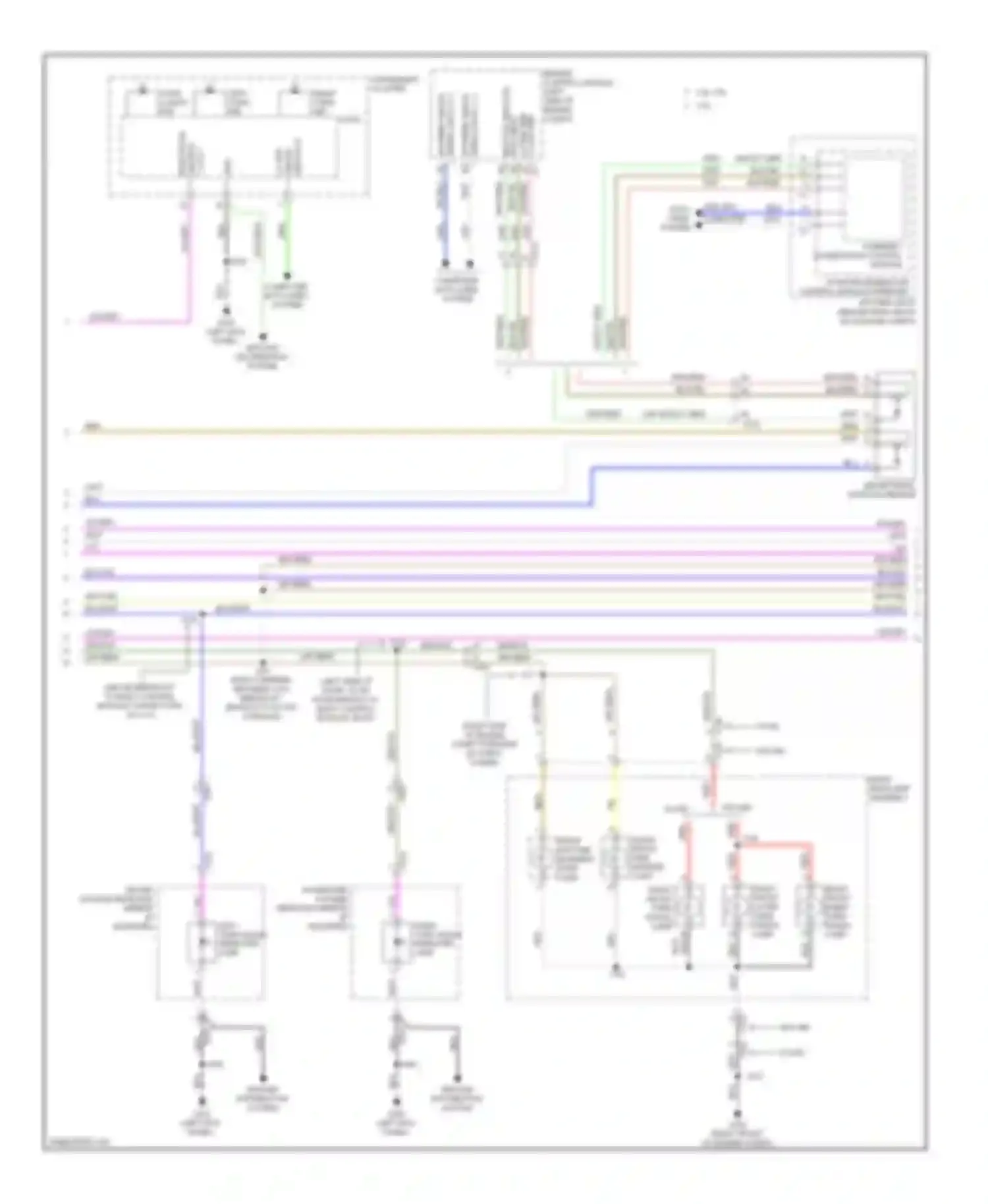

Wiring diagram hybrid/ev powertrain control module (4 of 9)

2.0L 2.5L 2.0L 2.5L, 2.4L 2.0L, 2.4L 2.5L 34 53 39 40 ACC PEDAL POS SIG (2) ACC PEDAL POS LO REF (2) 5 VOLT REF 5 VOLT REFERENCE 2 5-VOLT REF 1 5-VOLT REFERENCE ACC PEDAL POS LO REF (1) ACC PEDAL POS LO REF (2) ACC PEDAL POS SIG 2 ACC PEDAL POSITION SIG (1) ACCELERATOR PEDAL POSITION SENSOR (APP) ACCELERATOR PEDAL POSITION SENSOR (APP) (ABOVE ACCELERATOR PEDAL) AUTOMATIC TRANSMISSION ASSEMBLY BATT RCV FUSE BATTERY POSITIVE VOLT BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BODY CONTROL MODULE (BCM) (BEHIND LEFT END OF DASH) BODY CONTROL MODULE (BCM) (BEHIND LEFT SIDE OF DASH) BRAKE PEDAL POSITION SENSOR BRK APPLY SENS LO REF BRK APPLY SENS SIG BRK APPLY SENS SPLY VOLT BRK POSITION SENS LO REF BRK POSITION SENS SIG BRN WIRE BRN/GRN WIRE BRN/RED WIRE BRN/WHT WIRE CENTER DISPLAY COMPUTER DATA LINES SYSTEM CONTROL SOLENOID VALVE ASSEMBLY CRUISE CONTROL SW SIG CRUISE INDICATOR CRUISE SWITCH CRUISE/ETC/TCC BRK SIG DRIVER INFORMATION DRIVER INFORMATION CENTER DISPLAY ECM BATT FUSE ENGINE CONTROL MODULE (ECM) ENGINE CONTROL MODULE (ECM) (LEFT SIDE OF ENGINE COMPT) GRN WIRE GRN/WHT WIRE GRY WIRE HEADLIGHTS, INTERIOR LIGHTS SYSTEMS HI SIG HI SIG LO SIG SER DATA (-) SER DATA (+) HI SIG LO SIG HI SPD GMLAN SER DATA (+) 1 HI SPEED GMLAN SERIAL DATA (-) 1 HI SPEED GMLAN SERIAL DATA (-) 1 HOT AT ALL TIMES HYBRID EXCEPT HYBRID HYBRID/EV POWERTRAIN CONTROL MODULE IN LUGGAGE COMPT) INSTRUMENT CLUSTER INSTRUMENT PANEL FUSE BLOCK LEFT STEERING WHEEL CONTROL SWITCH LIGHTING CTRL SW REF LO SIG LO SPEED GMLAN SERIAL DATA LOGIC RED/BRN WIRE RED/WHT WIRE RED/YEL WIRE RES+ RIGHT STEERING WHEEL CONTROL SWITCH SENSOR SER DATA SET- SIGNAL GROUND STARTER/GENERATOR CONTROL MODULE HYBRID/EV BATTERY PACK (BEHIND REAR SEATS STEERING WHEEL AIR BAG COIL THROTTLE ACT CTRL CLOSE THROTTLE ACT CTRL OPEN THROTTLE BODY (2.4L: LEFT SIDE OF ENGINE) (2.0L, 2.5L: RIGHT SIDE OF ENGINE) THROTTLE BODY (RIGHT REAR OF ENGINE) THROTTLE POST SENS LO REF THROTTLE POST SENS SIG (1) TOP OF TRANSMISSION) TRANSMISSION CONTROL MODULE (TCM) TRANSMISSION INPUT SHAFT SPEED TRANSMISSION INPUT SHAFT SPEED SENSOR TRANSMISSION OUTPUT SHAFT SPEED SENSOR UNDERHOOD FUSE BLOCK UNDERHOOD FUSE BLOCK (LEFT SIDE OF BATTERY) WHT WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/LT GRN WIRE WHT/RED WIRE YEL WIRE YEL/WHT WIRE

Go to component -> Cruise control circuit -> HYBRID/EV POWERTRAIN CONTROL MODULE

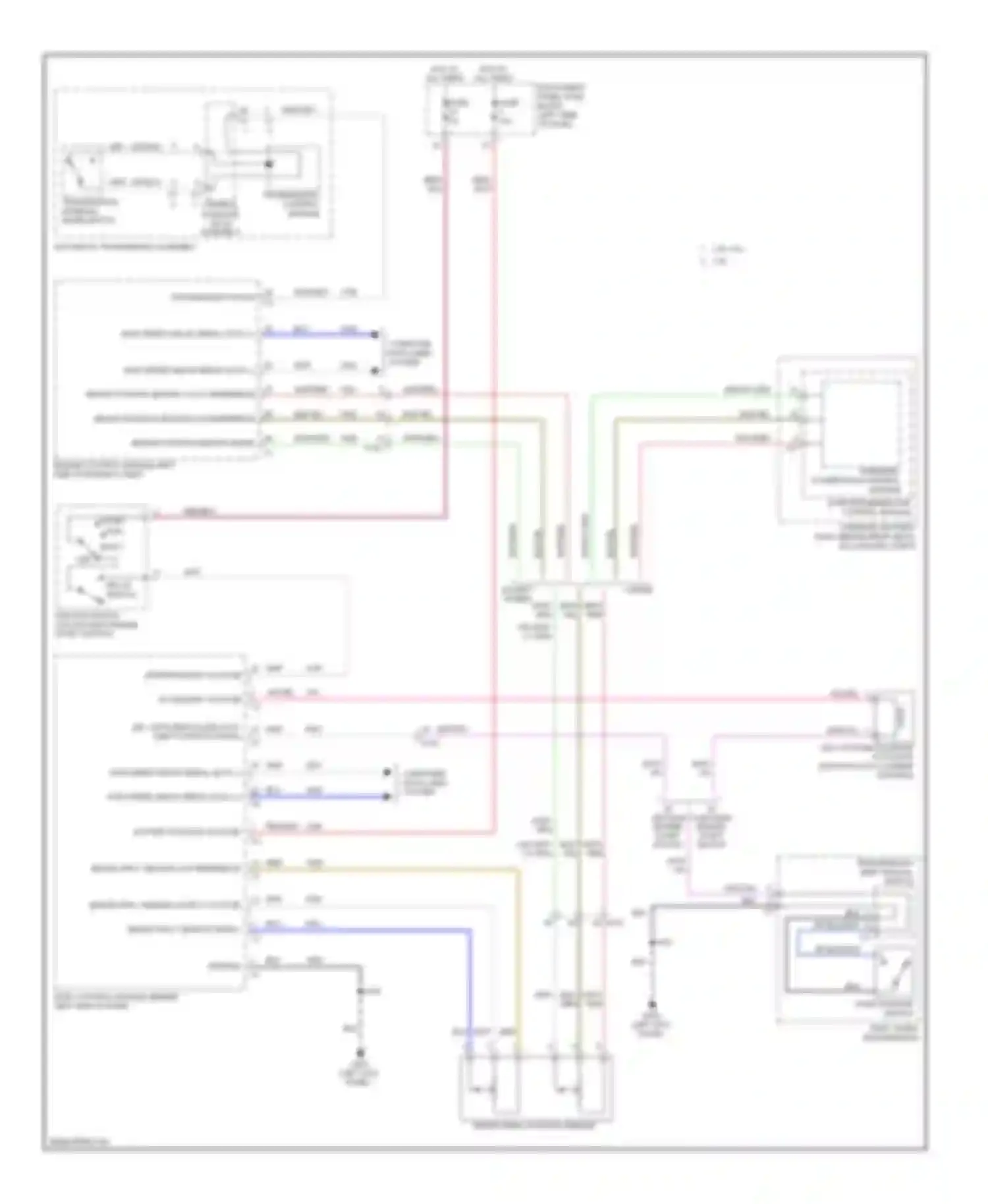

Wiring diagram hybrid/ev powertrain control module (6 of 9)

2.0L 2.5L 2.0L 2.5L, 2.4L ACCESSORY VOLTAGE AUTOMATIC TRANSMISSION ASSEMBLY BATTERY POSITIVE VOLT BATTERY POSITIVE VOLTAGE BLK WIRE BLK/YEL WIRE BLU WIRE BODY CONTROL MODULE (BEHIND LEFT END OF DASH) BODY CONTROL MODULE (BEHIND LEFT SIDE OF DASH) BRAKE APPLY SENSOR LOW REFERENCE BRAKE APPLY SENSOR SIGNAL BRAKE APPLY SENSOR SUPPLY VOLTAGE BRAKE PEDAL POSITION SENSOR BRAKE PEDAL POSITION SENSOR (TOP OF BRAKE PEDAL ASSEMBLY) BRAKE POSITION SENSOR 5 VOLT REFERENCE BRAKE POSITION SENSOR LOW REFERENCE BRAKE POSITION SENSOR SIGNAL BRN WIRE COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONTROL SOLENOID VALVE ASSEMBLY DK BLU/WHT WIRE ENGINE CONTROL MODULE (LEFT SIDE OF ENGINE COMPT) ENGINE CONTROL MODULE (TOP OF TRANSMISSION) EXCEPT HYBRID FUSE FUSE 22 FUSE 24 FUSE 8 GRN WIRE GROUND GRY WIRE HIGH SPEED GMLAN SERIAL DATA (+) HOT AT ALL TIMES HYBRID/EV BATTERY PACK (BEHIND REAR SEATS IN LUGGAGE COMPT) HYBRID/EV POWERTRAIN CONTROL MODULE IGNITION SWITCH IGNITION SWITCH (W/O KEYLESS ENGINE START SWITCH) INSTRUMENT PANEL FUSE BLOCK INSTRUMENT PANEL FUSE BLOCK (LEFT SIDE OF DASH) KEY CAPTURE SOLENOID ACTUATOR KEY CAPTURE SOLENOID ACTUATOR (IGNITION LOCK CYLINDER HOUSING) KEY CAPTURE/COLUMN LOCK SHIFT POSITION SIGNAL KEY-IN SWITCH LT GRN WIRE OFF OFF/RUN/CRANK VOLTAGE PARK POSITION SWITCH RED WIRE RED/BLU WIRE RED/BRN WIRE RED/WHT WIRE RUN WIRE SHIFT LEVER TRANSMISSION STARTER/GENERATOR CONTROL MODULE SWITCH SYSTEM TRANSMISSION CONTROL MODULE TRANSMISSION INTERNAL MODE SWITCH TRANSMISSION P/N SIG TRANSMISSION SHIFT LEVER TRANSMISSION SHIFT MANUAL SWITCH VIO WIRE VIO/YEL WIRE W/ KEYLESS ENGINE W/ KEYLESS ENGINE START SWITCH W/O KEYLESS ENGINE W/O KEYLESS ENGINE START SWITCH WHT WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/LT GRN WIRE WHT/RED WIRE WHT/VIO WIRE YEL WIRE

Go to component -> Ignition lock solenoid circuit -> HYBRID/EV POWERTRAIN CONTROL MODULE

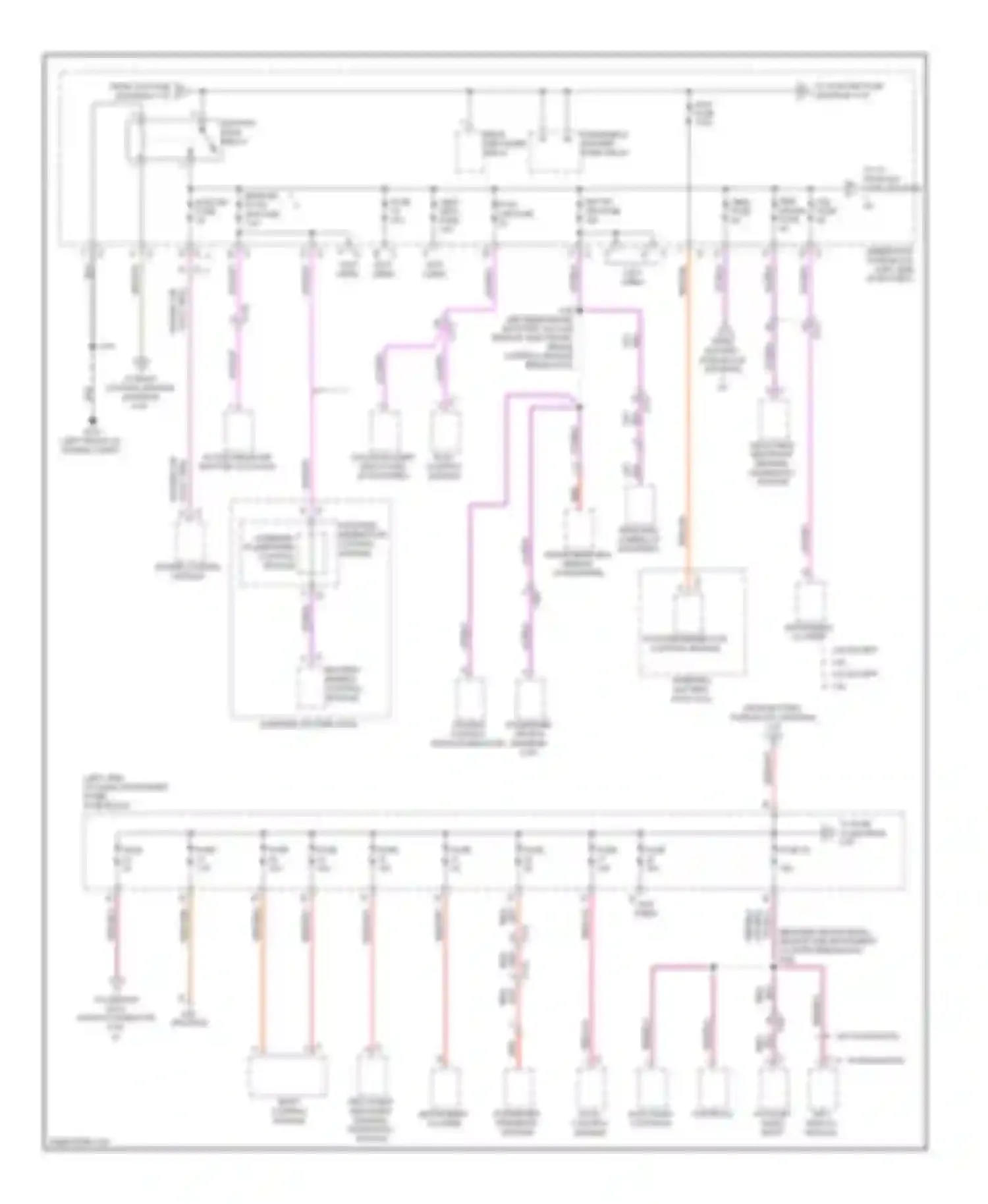

Wiring diagram hybrid/ev powertrain control module (7 of 9)

2.0L 2.5L ACTIVE GRILLE AIR SHUTTER ACTUATOR APM FUSE AUXILIARY AUDIO INPUT AUXILIARY INFO AUDIO DISPLAY INPUT MODULE BATTERY ENERGY CONTROL MODULE BDY RC IGN FUSE BLK WIRE BLK/ VIO WIRE BLU WIRE BODY CONTROL MODULE BPIM IGN PT RC IGN FUSE COLLISION ALERT INDICATORS COLLISION ALERT INDICATORS (IF EQUIPPED) DATA LINK CONNECTOR DBIM FUSE DK BLU WIRE ECM IGN FUSE ENGINE CONTROL MODULE FROM BATTERY FUSE BLOCK (DIAGRAM 1 OF 6) FROM BODY CONTROL MODULE (DIAGRAM 6 OF 6) FROM CPS FUSE (DIAGRAM 1 OF 6) FUSE FUSE 14 FUSE 15 FUSE 17 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 26 FUSE 73 FUSE FUSE GRN/VIO WIRE HVAC CONTROL MODULE HVAC CONTROLS HVAC RADIO CONTROLS CONTROLS HYBRID/EV BATTERY PACK HYBRID/EV BATTERY PACK (2.4L) HYBRID/EV POWERTRAIN CONTROL MODULE IGNITION MAIN RELAY INFLATABLE RESTRAINT SENSING, DIAGNOSTIC MODULE INFO DISPLAY MODULE INSIDE REAR VIEW MIRROR INSIDE REARVIEW MIRROR (IF EQUIPPED) INSTRUMENT CLUSTER INSTRUMENT CLUSTER 2.4L EXCEPT 2.4L 2.5L EXCEPT 2.5L INSTRUMENT PANEL FUSE BLOCK IP RC IGN FUSE MIL IGN FUSE PASSENGER AIR BAG DISABLED INDICATOR PASSENGER CHASSIS CONTROL AIR BAG DISABLED MODULE INDICATOR (2.4L) PASSENGER INSTRUMENT PRESENCE CLUSTER MODULE PASSENGER PRESENCE MODULE PT RC IGN FUSE RADIO CONTROLS REAR DEFOGGER RELAY REAR VIEW CAMERA REARVIEW CAMERA (IF EQUIPPED) RED WIRE RED/ WHT WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE SDM IGN FUSE SDM IGN MIL IGN FUSE STARTER/ GENERATOR CONTROL MODULE STARTER/GENERATOR CONTROL MODULE TO BATTERY FUSE BLOCK (DIAGRAM 1 OF 6) TO BODY CONTROL MODULE (DIAGRAM 6 OF 6) TO FUSE 16 (DIAGRAM 4 OF 6) TO IGNITION DATA LINK SWITCH CONNECTOR (DIAGRAM 6 OF 6) TO IGNITION SWITCH (DIAGRAM 6 OF 6) TO STARTER FUSE (DIAGRAM 3 OF 6) TO TC FSC IGN FUSE (DIAGRAM 3 OF 6) TO TC FSCM IGN FUSE (DIAGRAM 3 OF 6) UNDERHOOD FUSE BLOCK UNDERHOOD FUSE BLOCK (LEFT SIDE OF BATTERY) VENT SEAT FUSE VIO WIRE VIO/BLK WIRE VIO/GRN (OR VIO/LT GRN) WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/WHT WIRE W/ NAVIGATION W/ REAR VIEW CAMERA W/O NAVIGATION WHT RED/ WIRE WHT WIRE WINDSHIELD WASHER PUMP RELAY

Go to component -> Power distribution circuit (2 of 6) -> HYBRID/EV POWERTRAIN CONTROL MODULE

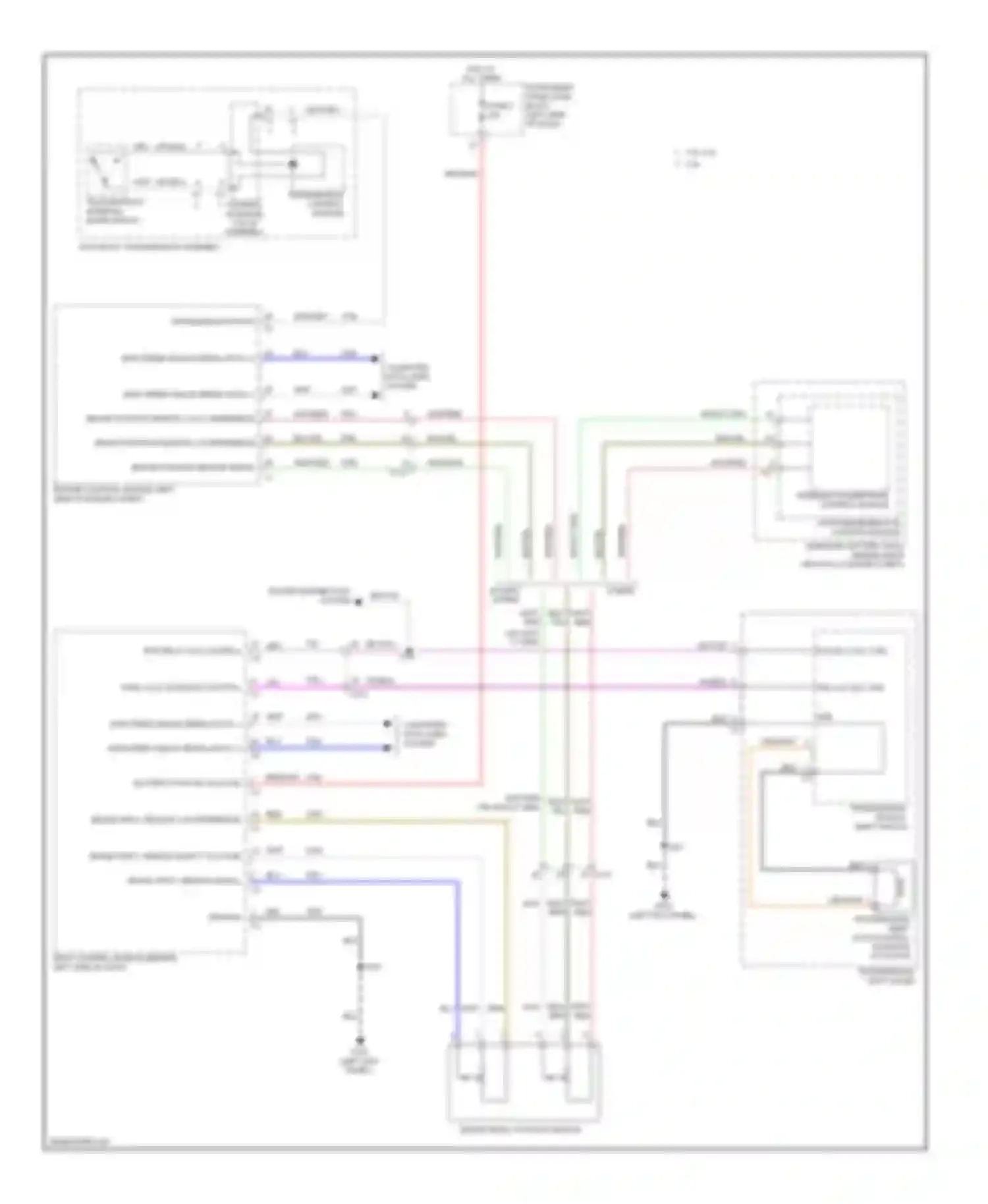

Wiring diagram hybrid/ev powertrain control module (8 of 9)

Go to component -> Shift interlock circuit -> HYBRID/EV POWERTRAIN CONTROL MODULE
