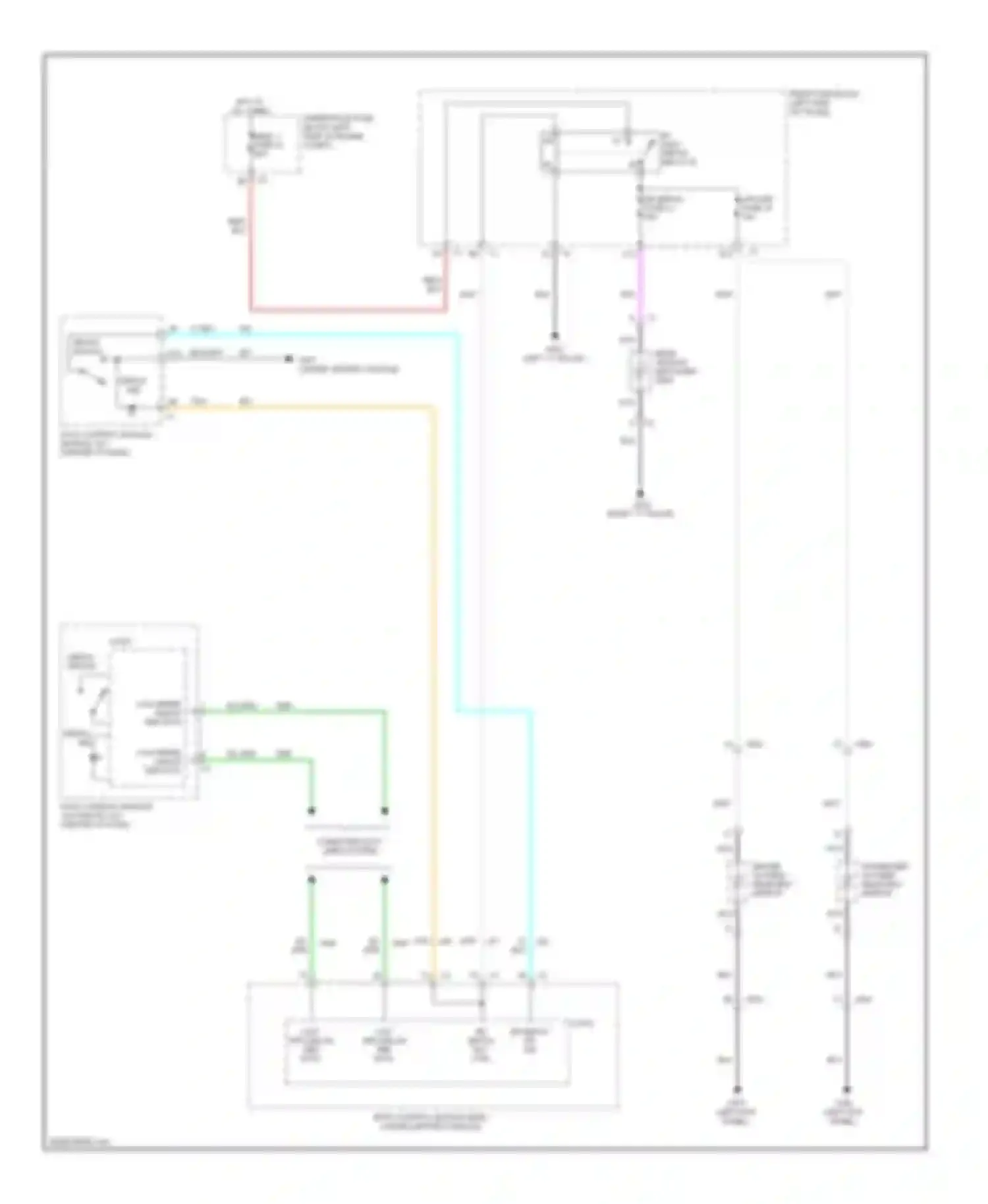

Car Wiring Diagrams for Defoggers circuit for Chevrolet Malibu VII (2008-2012)

BLK WIRE BLK/WHT WIRE BLU WIRE BODY CONTROL MODULE (BCM) (UNDER CENTER CONSOLE) COMPUTER DATA LINES SYSTEM DEFOG IND DEFOG SWITCH DK GRN WIRE DRIVER OUTSIDE REARVIEW MIRROR GRN WIRE HOT AT ALL TIMES HTD MIR FUSE 24 HVAC CONTROL MODULE (AUTOMATIC A/C) (CENTER OF DASH) HVAC CONTROL MODULE (MANUAL A/C) (CENTER OF DASH) LEFT "C" PILLAR) LOGIC LOGIC RR DEFOG SW SIG LOW SPD GMLAN SER DATA LOW SPEED GMLAN SER DATA LT BLU WIRE NCA WIRE PASSENGER OUTSIDE REARVIEW MIRROR PPL R/WDO DEFOG RELAY 26 RBEC 1 FUSE 22 REAR FUSE BLOCK (LEFT SIDE OF TRUNK) REAR WINDOW DEFOGGER GRID RED WIRE RR DEFOG FUSE 23 RR DEFOG RLY CTRL TAN WIRE UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT) WHT WIRE
