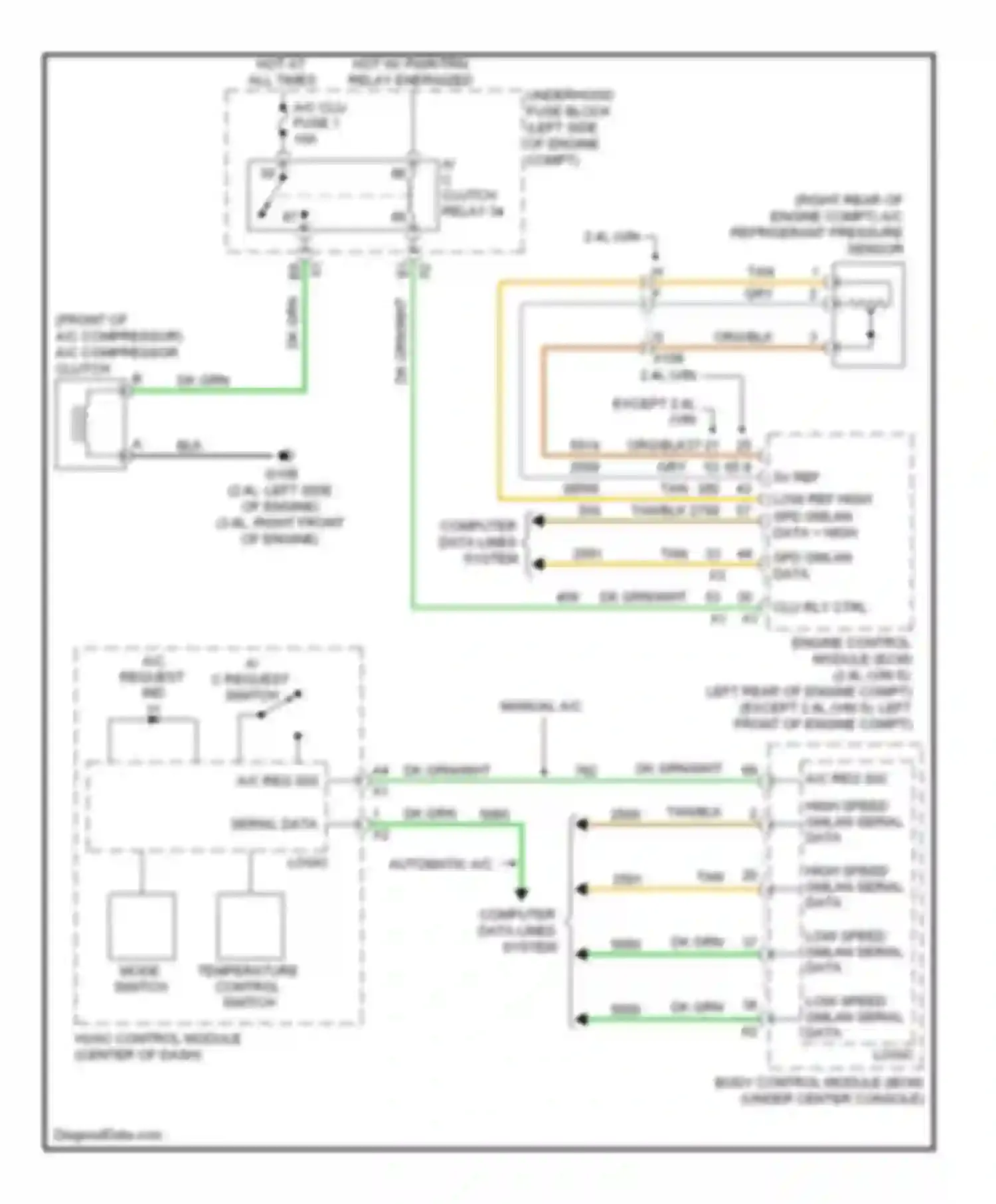

Compressor circuit for Chevrolet Malibu VII (2008-2012)
Compressor circuit
2.4L (VIN B)
25 65 8 43 57 37 21 53 380 2700 5514 2500 SENS SIG
A/C CLU FUSE 1
A/C CLUTCH RELAY 34
A/C REQ SIG
A/C REQUEST IND
A/C REQUEST SWITCH
AUTOMATIC A/C
BLK WIRE
BODY CONTROL MODULE (BCM) (UNDER CENTER CONSOLE)
CLU RLY CTRL
COMPUTER DATA LINES SYSTEM
DATA + HIGH SPD GMLAN DATA -
DK GRN WIRE
DK GRN/WHT WIRE
EXCEPT 2.4L (VIN B)
GRY WIRE
HIGH SPEED GMLAN SERIAL DATA (+)
HOT AT ALL TIMES
HOT W/ PWR/TRN RELAY ENERGIZED
HVAC CONTROL MODULE (CENTER OF DASH)
LOGIC
LOW REF HIGH SPD GMLAN
LOW SPEED GMLAN SERIAL DATA
MANUAL A/C
MODE SWITCH
ORG/BLK WIRE
SERIAL DATA
TAN WIRE
TAN/BLK WIRE
TEMPERATURE CONTROL SWITCH
UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT)
