Car Wiring Diagrams for Power distribution circuit for Chevrolet Malibu VI facelift (2006-2008)

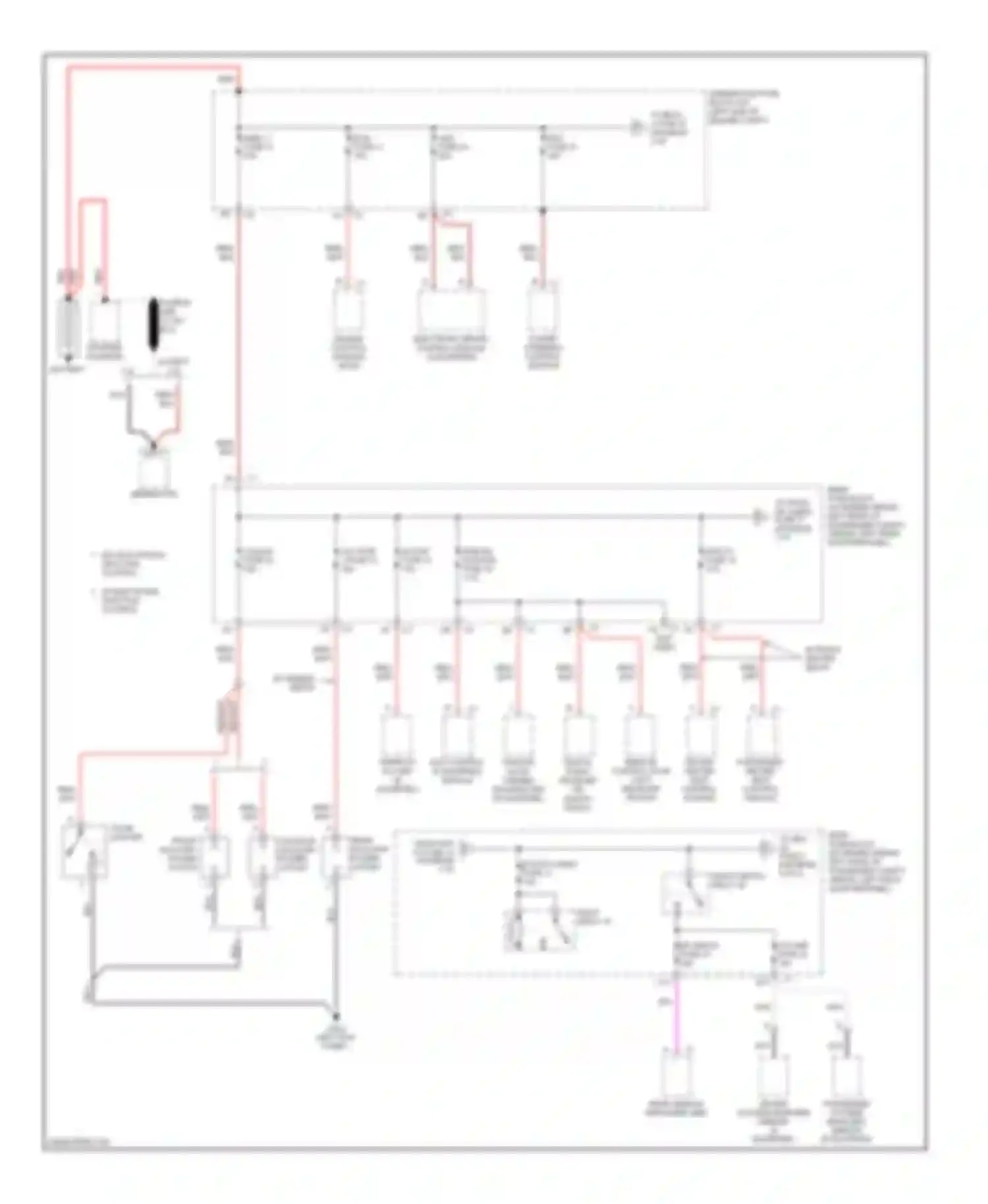

2.2L ABS FUSE 24 AUX PWR 2 FUSE 12 BATTERY BCK/UP LAMPS FUSE 17 BLK WIRE BLU WIRE BU/LP RELAY 33 CIG/AUX FUSE 20 CIGAR LIGHTER CONSOLE AUXILIARY POWER OUTLET DRIVER HEATED SEAT CONTROL MODULE DRIVER OUTSIDE REARVIEW MIRROR (IF EQUIPPED) PASSENGER OUTSIDE REARVIEW MIRROR ECM FUSE 13 ELECTRONIC BRAKE CONTROL MODULE (IF EQUIPPED) ENGINE CONTROL MODULE (ECM) EPS FUSE 41 EXCEPT 2.2L EXTENDED SEDAN FROM HTD ST FUSE 14 (DIAGRAM 1 OF 5) FRONT AUXILIARY POWER OUTLET FUSIBLE LINK (12 GA- GENERATOR HTD MIR FUSE 24 HTD ST FUSE 14 NCA WIRE PASSENGER HEATED SEAT CONTROL MODULE POWER STEERING CONTROL MODULE PPL R/WDO DEFOG RELAY 26 RBEC 1 FUSE 22 REAR AUXILIARY POWER OUTLET REAR WINDOW DEFOGGER GRID RED WIRE RED/WHT WIRE REMOTE CONTROL DOOR LOCK RECEIVER (RCDLR) RR DEFOG FUSE 23 STARTER SOLENOID SUN RF FUSE 10 RKE/XM DVD/UGD FUSE 16 SUNROOF DVD CONTROL PLAYER (IF EQUIPPED) MODULE (IF EQUIPPED) TO BACK/ UP LAMPS FUSE 17 (DIAGRAM 1 OF 5) TO IBCM 2 FUSE 25 (DIAGRAM 2 OF 5) UNDERHOOD FUSE BLOCK (ON LEFT SIDE OF ENGINE COMPT) W/ ELECTRONIC TRACTION CONTROL W/ FRONT HEATED SEATS W/O ELECTRONIC TRACTION CONTROL WHT WIRE

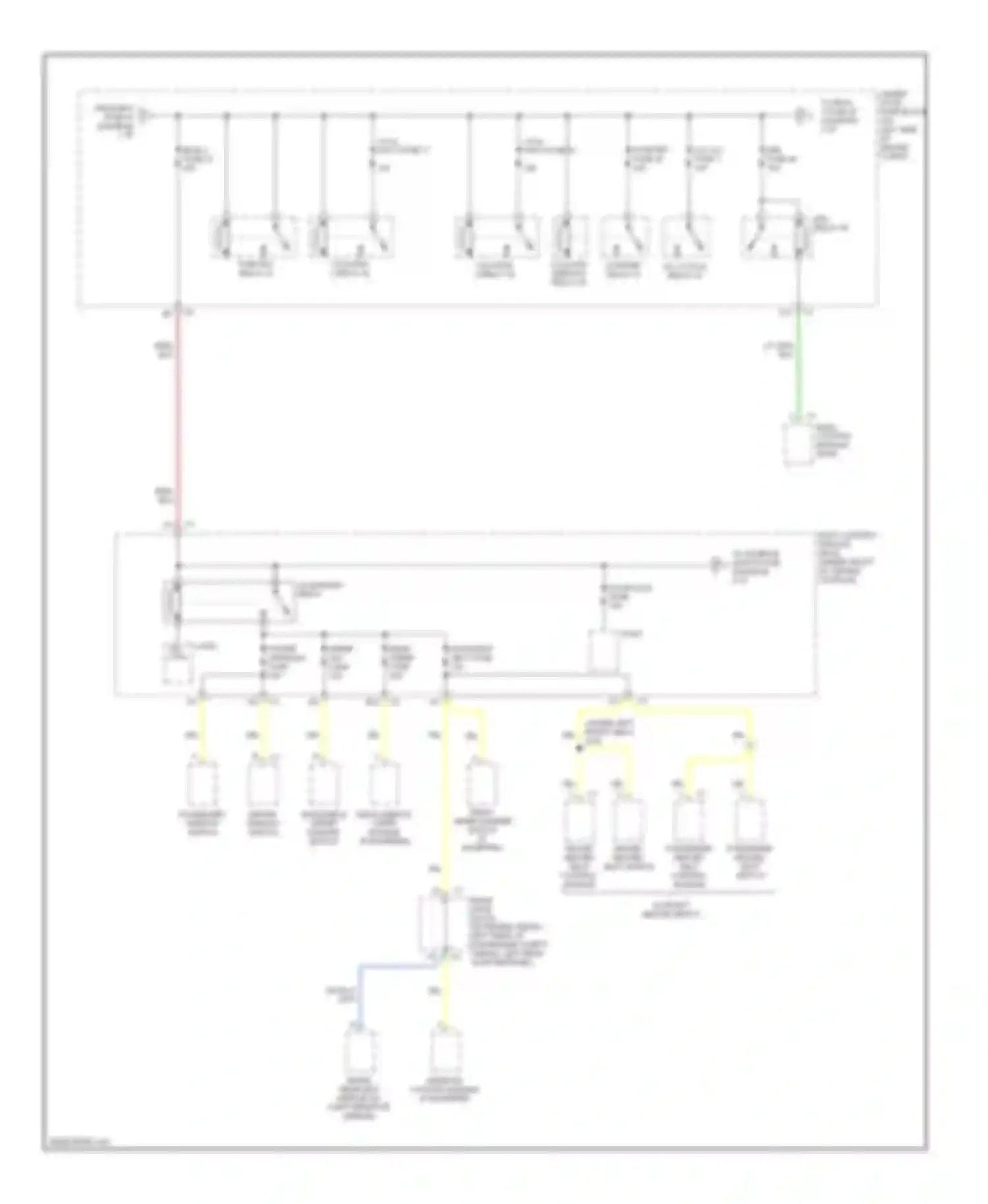

A/C CLU FUSE 1 A/C CLUTCH RELAY 34 ACCESSORY RELAY BLK WIRE BODY CONTROL MODULE (BCM) BODY CONTROL MODULE (BCM) (UNDER FRONT OF CENTER CONSOLE) COOL FAN 1 FUSE 17 COOL FAN 2 FUSE 18 COOL/FAN 1 RELAY 28 COOL/FAN 2 RELAY 30 COOL/FAN SER/PAR RELAY 29 DK BLU WIRE DOOR LOCK FUSE DRIVER HEATED SEAT CONTROL MODULE DRIVER HEATED SEAT SWITCH DRIVER WINDOW SWITCH DRL FUSE 46 DRL RELAY 48 FROM EPS FUSE 41 (DIAGRAM 1 OF 5) IBCM 2 FUSE 25 INSIDE REARVIEW MIRROR (W/ LIGHT SENSITIVE MIRROR) LOGIC LOGIC RLY CTRL LT GRN WIRE PASSENGER HEATED SEAT CONTROL MODULE PASSENGER HEATED SEAT SWITCH PASSENGER WINDOW SWITCH POWER WINDOWS FUSE PWR/TRN RELAY 33 REAR/ WIPER WASHER SWITCH (IF EQUIPPED) RED WIRE ROOF/HEAT SEAT FUSE STARTER FUSE 26 STARTER RELAY 31 SUNROOF CONTROL MODULE (IF EQUIPPED) TO IBCM 1 FUSE 20 (DIAGRAM 3 OF 5) TO INTERIOR LIGHTS FUSE (DIAGRAM 4 OF 5) UNDER- HOOD FUSE BLOCK (ON LEFT SIDE OF ENGINE COMPT) W/ FRONT HEATED SEATS WHT WIRE WINDSHIELD WIPER/ WASHER SWITCH REAR WINDOW WIPER MODULE (IF EQUIPPED) WIPER SW FUSE REAR WIPER FUSE YEL WIRE

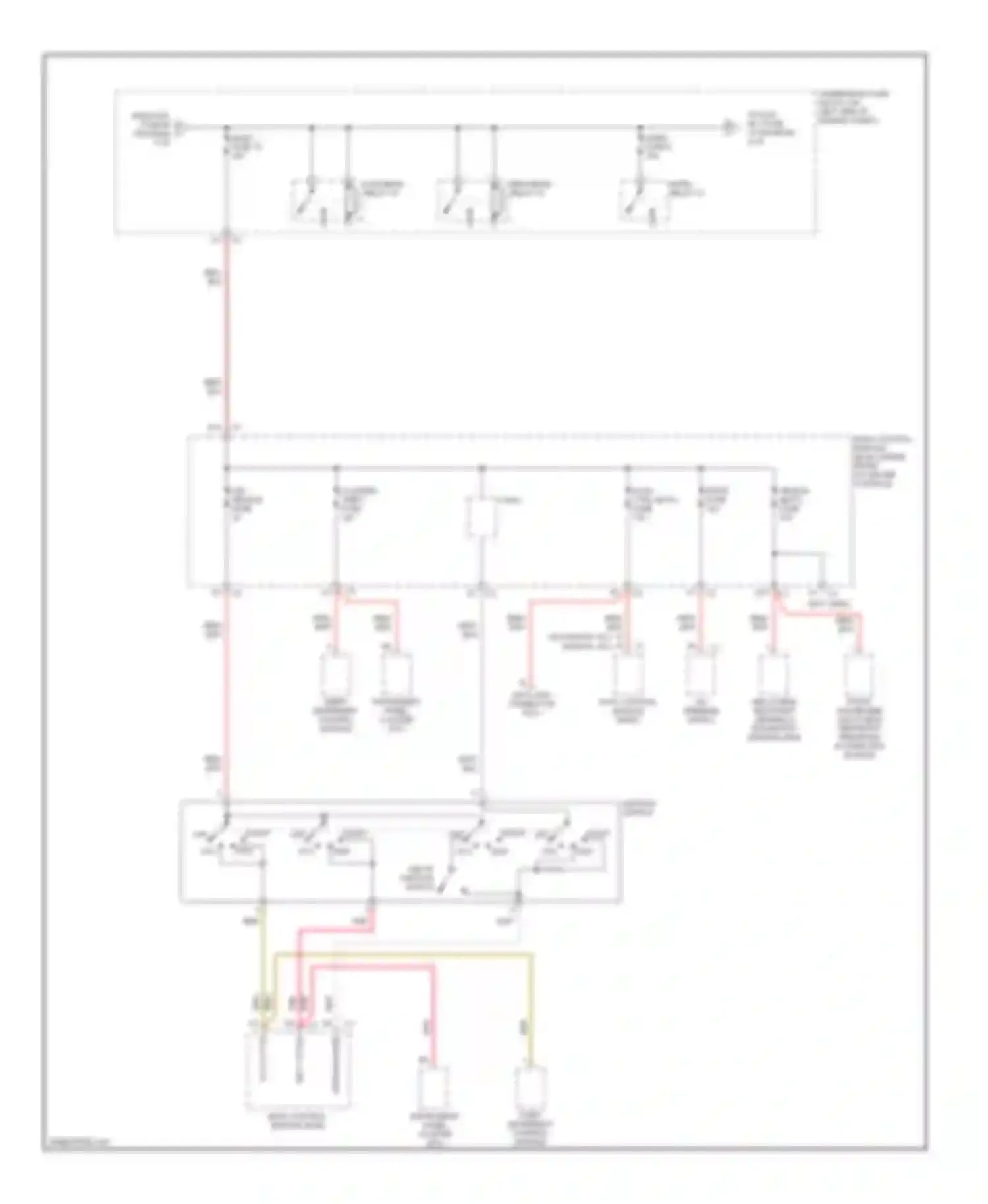

ACC VLT SIG AIR BAG (BATT) FUSE AUTOMATIC A/C MANUAL A/C BLK WIRE BODY CONTROL MODULE (BCM) BODY CONTROL MODULE (BCM) (UNDER FRONT OF CENTER CONSOLE) BRN WIRE CLUSTER/ THEFT FUSE DATA LINK CONNECTOR (DLC) FROM DRL FUSE 46 (DIAGRAM 2 OF 5) HIGH BEAM RELAY 35 HORN FUSE 8 HORN RELAY 37 HVAC CONTROL MODULE RADIO (W/ PREMIUM RADIO) HVAC CTRL (BATT) FUSE RADIO FUSE IBCM 1 FUSE 20 IGN 1 VLT SIG IGN SENSOR FUSE IGNITION SWITCH INSTRUMENT PANEL CLUSTER (IPC) KEY-IN IGNITION SWITCH LOGIC LOW BEAM RELAY 38 OFF OFF/RUN/CRANK PNK WIRE RED WIRE RUN WIRE THEFT DETERRENT CONTROL MODULE THEFT DETERRENT CONTROL MODULE INSTRUMENT PANEL CLUSTER (IPC) TO RUN RLY FUSE 19 (DIAGRAM 4 OF 5) UNDERHOOD FUSE BLOCK (ON LEFT SIDE OF ENGINE COMPT) WHT WIRE

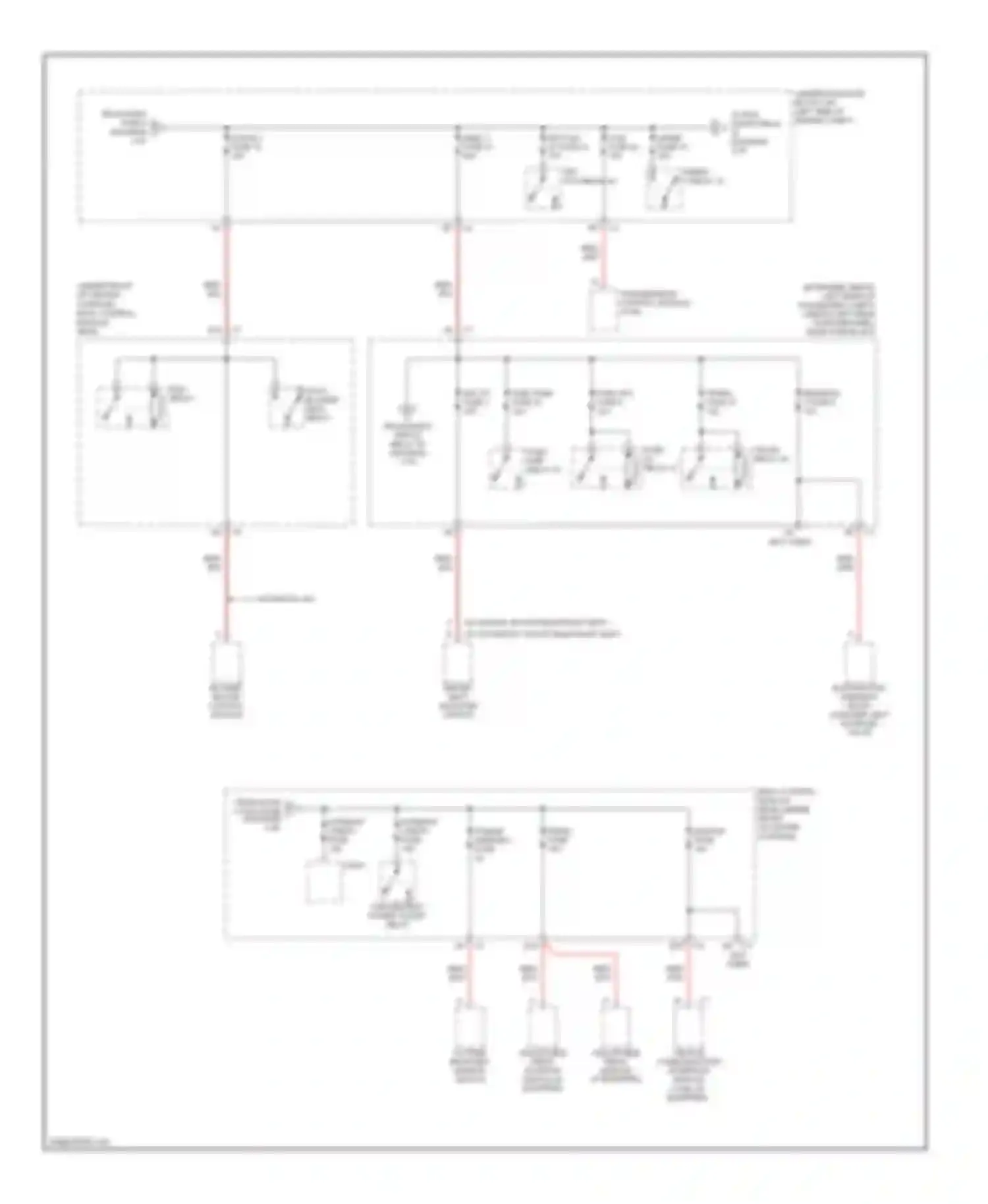

ADJUSTABLE PEDAL POSITION SWITCH (IF EQUIPPED) ADJUSTABLE PEDAL MODULE AUTOMATIC A/C BLK WIRE BLOWER MOTOR CONTROL MODULE BODY CONTROL MODULE (BCM) (UNDER FRONT OF CENTER CONSOLE) DRIVER SEAT ADJUSTER SWITCH DRV ST FUSE 2 EMISSION 2 FUSE 5 EVAPORATIVE EMISSION (EVAP) CANISTER VENT SOLENOID VALVE FROM DOOR LOCKS FUSE (DIAGRAM 2 OF 5) FROM HORN FUSE 8 (DIAGRAM 3 OF 5) FROM R/WDO DEFOG RELAY 26 (DIAGRAM 1 OF 5) FRT FOG LP FUSE 10 FRT FOG RELAY 36 FUEL PUMP FUSE 25 PARK LPS FUSE 6 FUEL/PMP RELAY 37 HVAC BLOWER HIGH RELAY INADVERTENT POWER OUTLET RELAY INTERIOR LIGHTS FUSE LOGIC ONSTAR FUSE OUTSIDE REARVIEW MIRROR SWITCH PARK LP RELAY 27 PEDAL FUSE POWER MIRRORS FUSE RBEC 2 FUSE 23 RED WIRE RELAY RUN RLY FUSE 19 RUN WIRE TCM FUSE 42 TO RUN CRANK RELAY 32 (DIAGRAM 5 OF 5) TRANSMISSION CONTROL MODULE (TCM) TRUNK FUSE 22 TRUNK RELAY 36 UNDERHOOD FUSE BLOCK (ON LEFT SIDE OF ENGINE COMPT) VEHICLE COMMUNICATION INTERFACE MODULE WHT WIRE WIPER 1 RELAY 39 WIPER FUSE 14

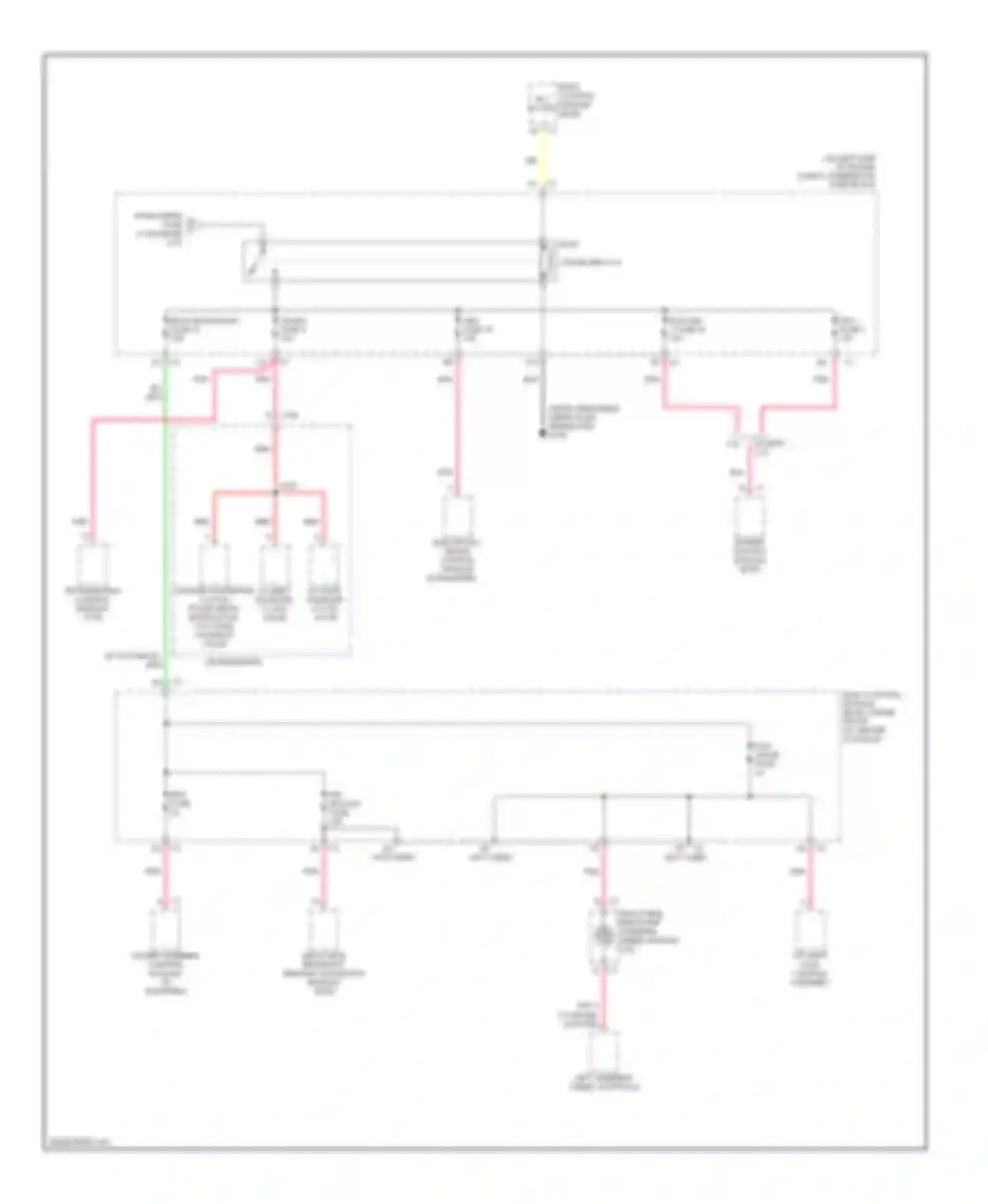

1-2 SHIFT SOLENOID (1-2 SS) VALVE 2-3 SHIFT SOLENOID (2-3 SS) VALVE 2.2L EXCEPT 2.2L A/T SHIFT LOCK CONTROL ASSEMBLY ABS FUSE 15 AIR BAG IGN FUSE BLK WIRE BODY CONTROL MODULE (BCM) (UNDER FRONT OF CENTER CONSOLE) BODY CONTROL MODULE (BCM) RLY HI CTRL CRANK FUSE DK AUTOMATIC TRANSMISSION ECM IGN 1 FUSE 16 ELECTRONIC BRAKE CONTROL MODULE ENGINE CONTROL MODULE (ECM) EPS FUSE FROM WIPER FUSE 14 (DIAGRAM 4 OF 5) GRN WIRE IBCM (RUN/CRANK) FUSE 21 IGN 1 FUSE 3 INFLATABLE RESTRAINT SENSING, DIAGNOSTIC MODULE (SDM) INFLATABLE RESTRAINT STEERING WHEEL MODULE COIL LEFT STEERING WHEEL CONTROLS PNK 4 1 (3-SPOKE) (4-SPOKE) WIRE PNK WIRE PNK/ DK WIRE POWER STEERING CONTROL MODULE (IF EQUIPPED) RED WIRE RUN WIRE RUN/ CRANK RELAY 32 TORQUE CONVERTER CLUTCH PULSE WIDTH MODULATION (TCC PWM) SOLENOID VALVE TRANS FUSE 4 TRANSMISSION CONTROL MODULE (TCM) YEL WIRE
