Cooling fan circuit for Chevrolet Malibu V facelift (2000-2003)

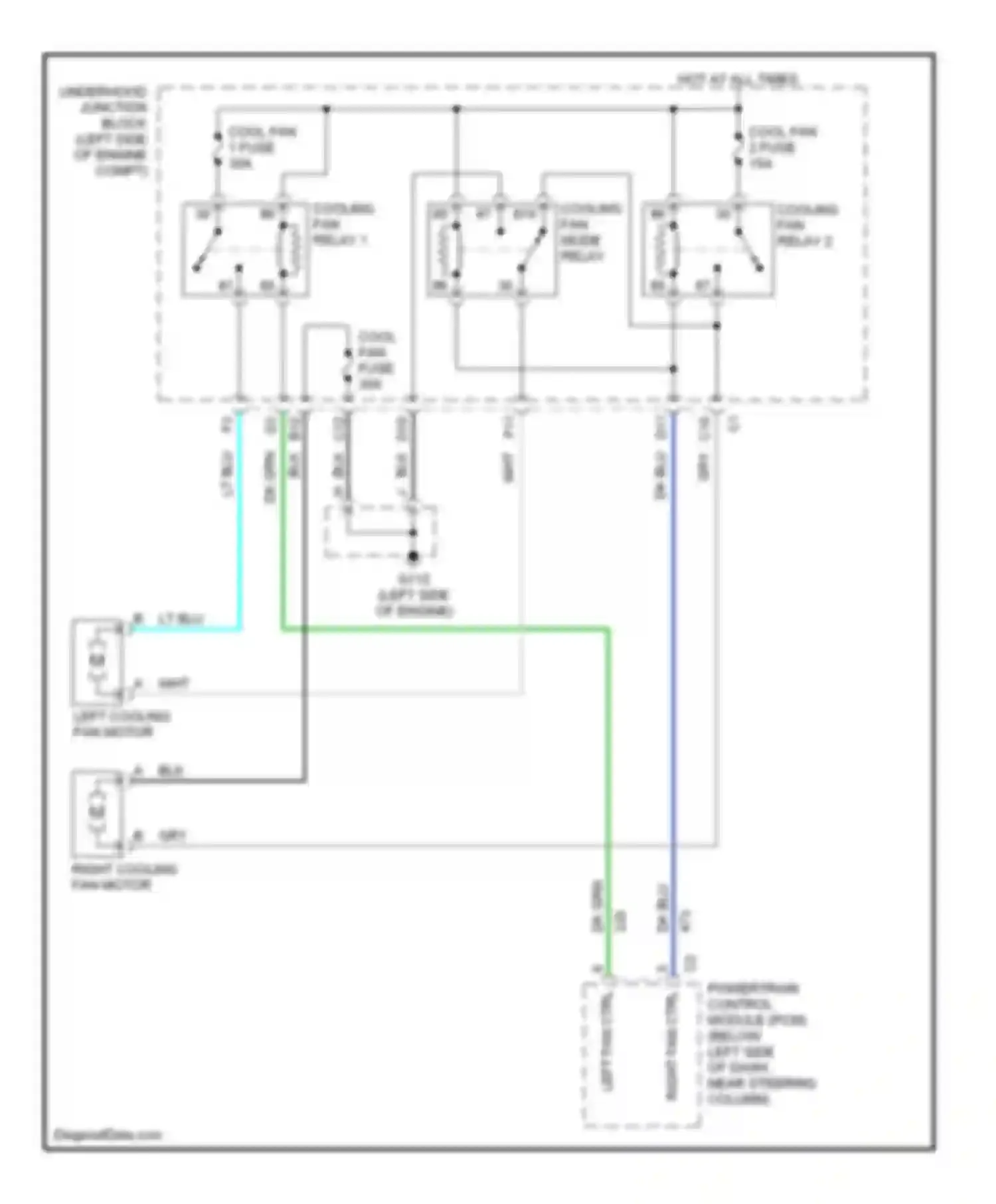

Cooling fan circuit
BLK WIRE
COOL FAN 1 FUSE
COOL FAN 2 FUSE
COOL FAN FUSE
COOLING FAN MODE RELAY
COOLING FAN RELAY 1
COOLING FAN RELAY 2
DK BLU WIRE
DK GRN WIRE
GRY WIRE
HOT AT ALL TIMES
LEFT COOLING FAN MOTOR
LEFT FAN CTRL
LT BLU WIRE
POWERTRAIN CONTROL MODULE (PCM) (BELOW LEFT SIDE OF DASH, NEAR STEERING COLUMN)
RIGHT COOLING FAN MOTOR
RIGHT FAN CTRL
UNDERHOOD JUNCTION BLOCK (LEFT SIDE OF ENGINE COMPT)
WHT WIRE
