Compressor circuit for Chevrolet Malibu V facelift (2000-2003)

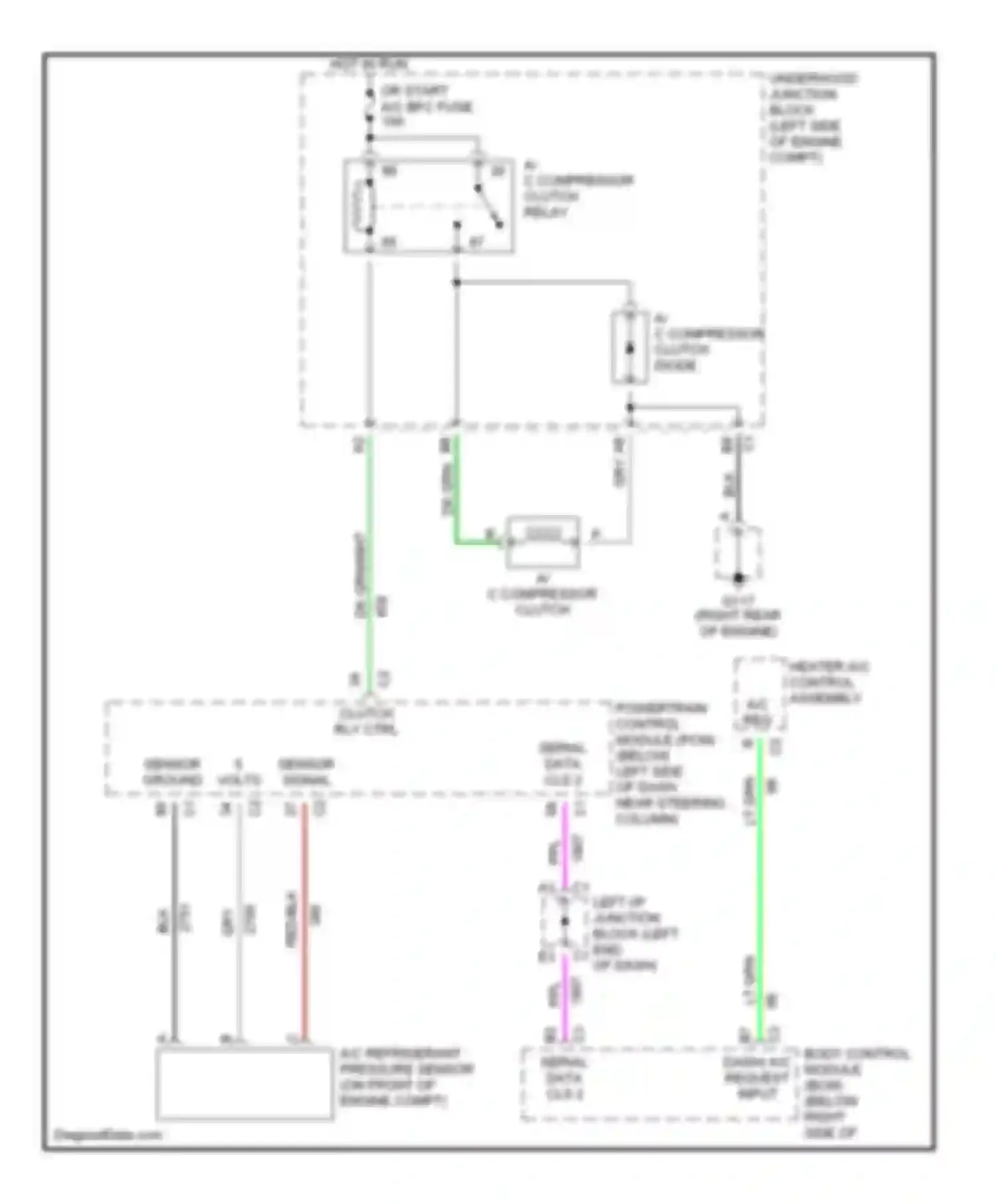

Compressor circuit
5 VOLTS
A/C COMPRESSOR CLUTCH
A/C COMPRESSOR CLUTCH DIODE
A/C COMPRESSOR CLUTCH RELAY
A/C REFRIGERANT PRESSURE SENSOR (ON FRONT OF ENGINE COMPT)
A/C REQ
BLK WIRE
BODY CONTROL MODULE (BCM) (BELOW RIGHT SIDE OF DASH) A/C REQUEST INPUT
CLUTCH RLY CTRL
DK GRN WIRE
DK GRN/WHT WIRE
GRY WIRE
HEATER, A/C CONTROL ASSEMBLY
HOT IN RUN OR START A/C BFC FUSE
LEFT I/P JUNCTION BLOCK (LEFT END OF DASH)
LT GRN WIRE
POWERTRAIN CONTROL MODULE (PCM) (BELOW LEFT SIDE OF DASH, NEAR STEERING COLUMN)
PPL
RED/BLK WIRE
SENSOR GROUND
SENSOR SIGNAL
SERIAL DATA CLS 2
UNDERHOOD JUNCTION BLOCK (LEFT SIDE OF ENGINE COMPT)
