Back-up lamps circuit, with police or emergency vehicle option for Chevrolet Impala VIII (1999-2006)

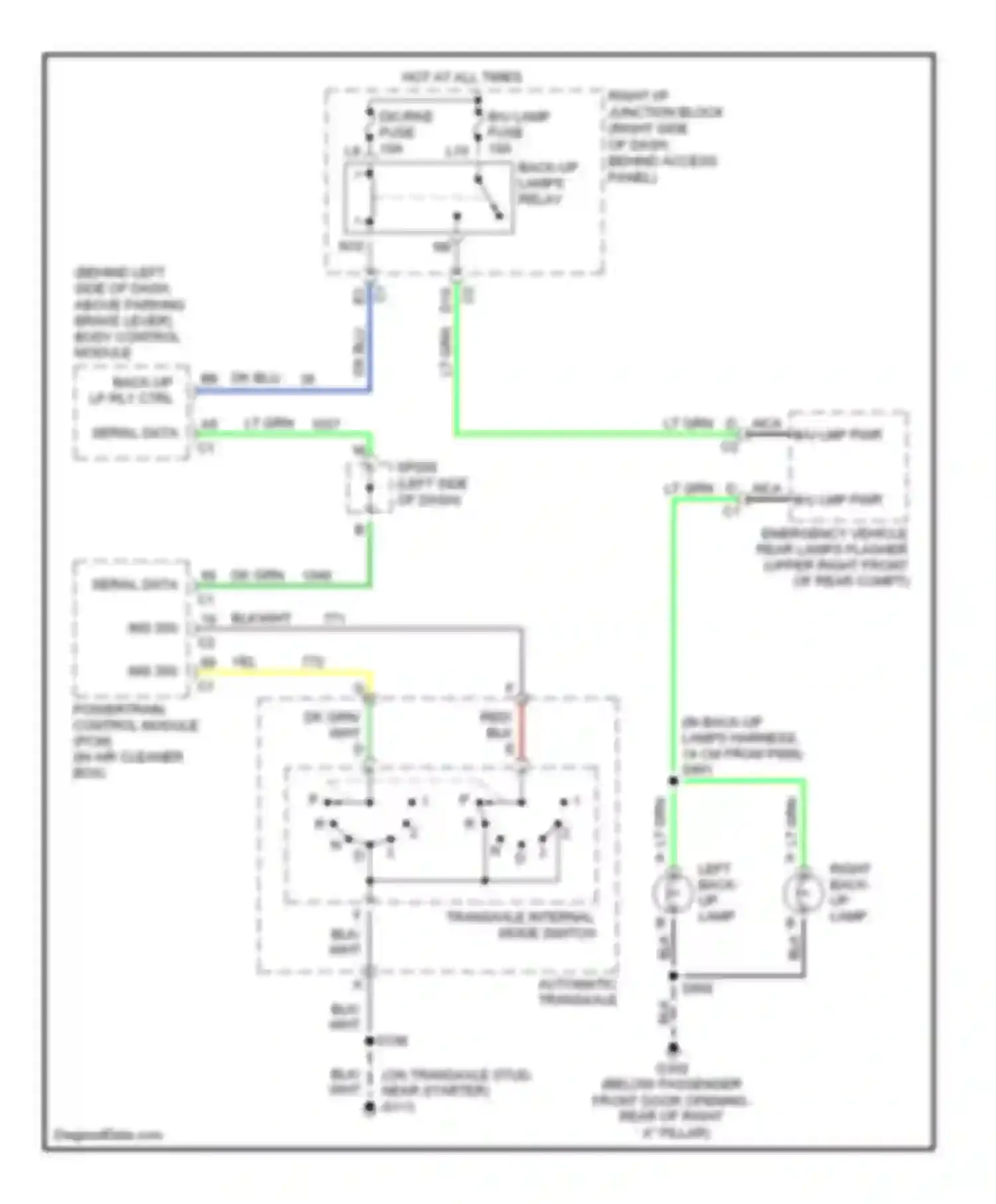

Back-up lamps circuit, with police or emergency vehicle option
AUTOMATIC TRANSAXLE
B/U LAMP FUSE
B/U LMP PWR
BACK-UP LAMPS RELAY
BACK-UP LP RLY CTRL
BLK WIRE
BLK/WHT WIRE
DIC/RKE FUSE
DK BLU WIRE
DK GRN WIRE
EMERGENCY VEHICLE REAR LAMPS FLASHER (UPPER RIGHT FRONT OF REAR COMPT)
HOT AT ALL TIMES
IMS SIG A
IMS SIG B
LEFT BACK-UP LAMP
LT GRN WIRE
NCA WIRE
POWERTRAIN CONTROL MODULE (PCM) (IN AIR CLEANER BOX)
RED WIRE
RIGHT BACK-UP LAMP
RIGHT I/P JUNCTION BLOCK (RIGHT SIDE OF DASH, BEHIND ACCESS PANEL)
SERIAL DATA
TRANSAXLE INTERNAL MODE SWITCH
WHT WIRE
YEL WIRE
