Chevrolet Impala VIII (1999-2006) monte carlo impala Wiring diagram
This page shows the only wiring diagram for the component.monte carlo impala, which is found in the car Chevrolet Impala VIII (1999-2006). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

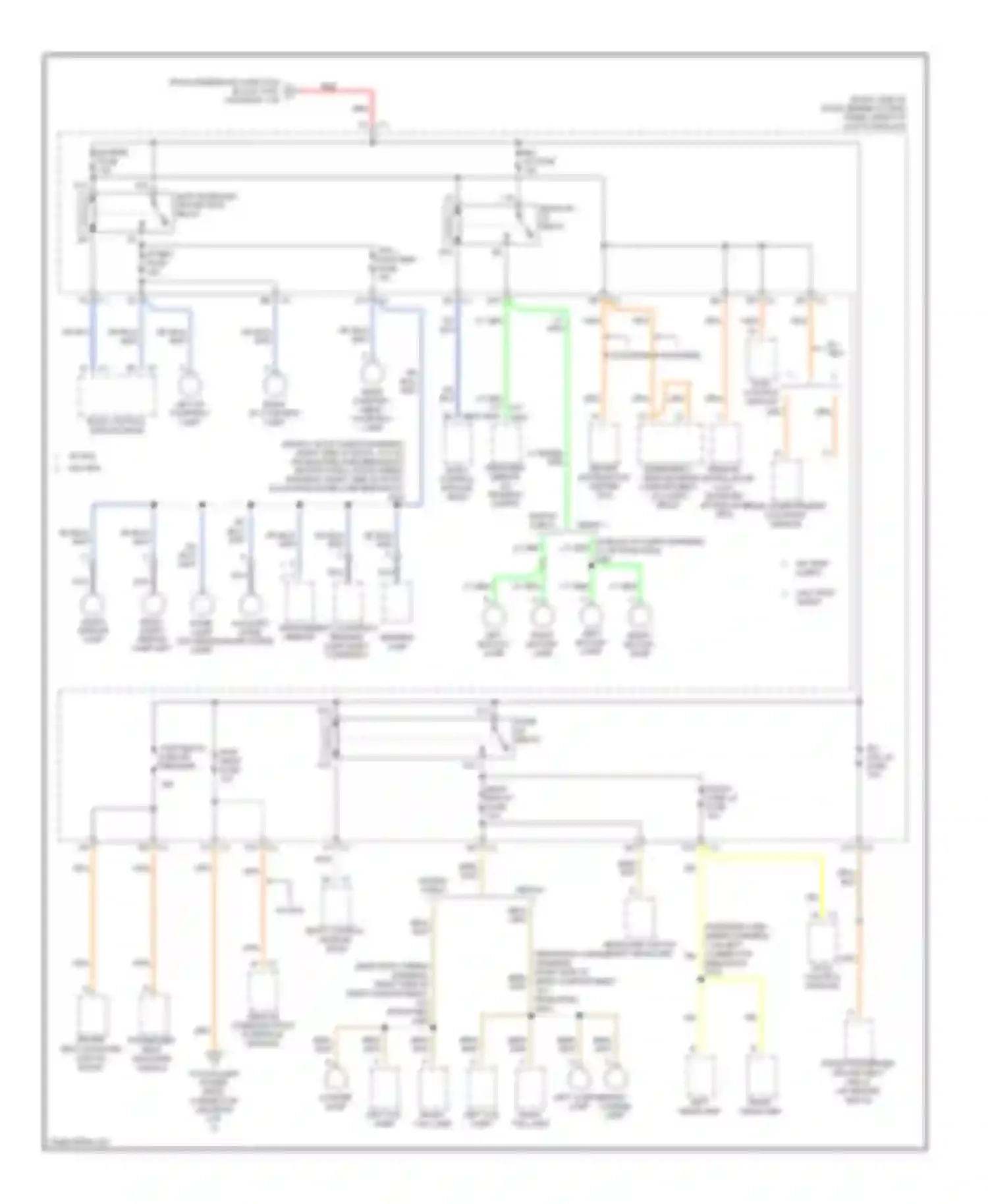

Wiring diagram monte carlo impala (1 of 1)
3 9 (W/O GPS) (W/ GPS)
AUXILIARY DOME LAMP INSIDE REARVIEW MIRROR
B/U LP FUSE
BACK-UP LP RELAY
BATT RUNDOWN PROTECTION RELAY
BLK WIRE
BLU WIRE
BODY CONTROL MODULE (BCM)
BRN WIRE
DIC/RKE FUSE
DK BLU WIRE
DOME LAMP (W/O READING LAMP)
DRIVER INFORMATION CENTER (DIC)
DRIVER SEAT ADJUSTER SWITCH FRONT PASSENGER SEAT ADJUSTER SWITCH
EMERGENCY VEHICLE REAR COMPARTMENT LID LAMPS RELAY
FROM UNDERHOOD JUNCTION BLOCK (TOP) (DIAGRAM 1 OF 5)
FRONT PARK LP FUSE
FRONT PASSENGER HEATED SEAT RELAY (W/ HEATED SEATS)
GRN WIRE
HEADLAMP SWITCH RIGHT HEADLAMP CONNECTOR BREAKOUT)
HVAC CONTROL MODULE
I/P BRP FUSE
IMPALA
LEFT BACKUP LAMP RIGHT BACKUP LAMP LEFT BACKUP LAMP
LEFT COURTESY/ READING LAMP RIGHT COURTESY/ READING LAMP
LEFT HEADLAMP
LEFT I/P COURTESY LAMP
LICENSE LAMP
LT GRN WIRE
LT INSIDE REARVIEW MIRROR (W/ READING LAMPS)
MONTE CARLO
MONTE CARLO IMPALA
NCA WIRE
ORG/ WIRE
PARK LP RELAY
PWR DROP FUSE
PWR SEATS CIRCUIT BREAKER
REAR COMPART- MENT COURTESY LAMP
REAR COMPARTMENT OCCUPANT SENSOR
REAR PRK LP FUSE
RED WIRE
REMOTE CONTROL DOOR LOCK RECEIVER (RCDLR) (W/O SEO)
RH HTD ST FUSE
RIGHT BACKUP LAMP
RIGHT HEADLAMP
RIGHT I/P COURTESY LAMP
RIGHT LICENSE LAMP LEFT LICENSE LAMP
RIGHT TAIL LAMP LEFT TAIL LAMP
RIGHT VANITY MIRROR LAMP LEFT VANITY MIRROR LAMP
TO AUXILIARY POWER DROP CONNECTOR (DIAGRAM 5 OF 5)
TRK/ ROOF BRP FUSE
VEHICLE COMMUNICATION INTERFACE MODULE
W/ GPS
W/ GPS W/O GPS
W/ SEO
WHT WIRE
YEL WIRE
Go to component -> Power distribution circuit (4 of 5) -> MONTE CARLO IMPALA
