Chevrolet Impala VIII (1999-2006) back-up lamps relay Wiring diagrams
This page contains all the electrical diagrams for the component. back-up lamps relay, in which he is found in the car Chevrolet Impala VIII (1999-2006). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

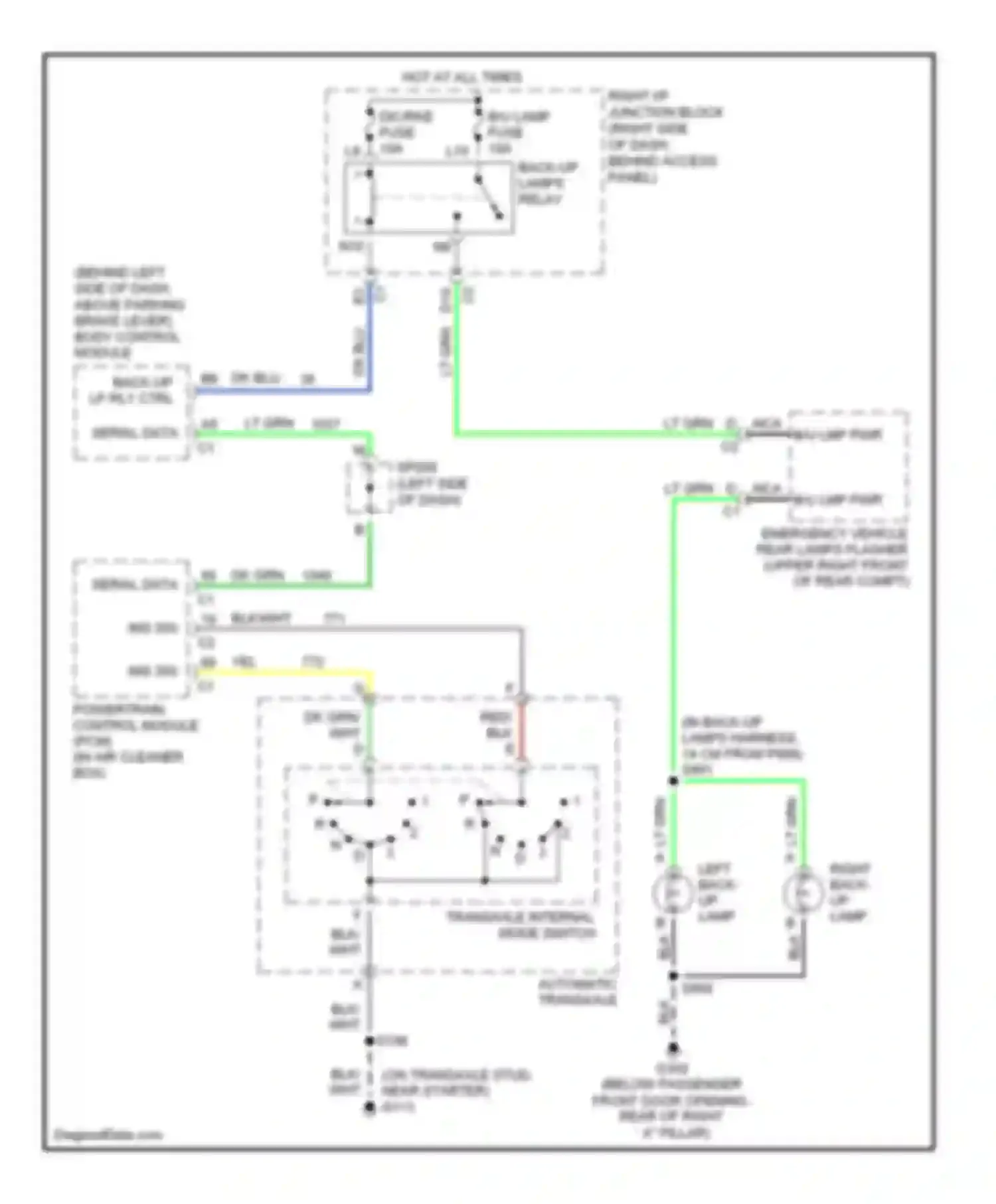

Wiring diagram back-up lamps relay (1 of 2)
AUTOMATIC TRANSAXLE
B/U LAMP FUSE
BACK-UP LAMPS RELAY
BACK-UP LP RLY CTRL
BLK WIRE
BLK/WHT WIRE
DIC/RKE FUSE
DK BLU WIRE
DK GRN WIRE
HOT AT ALL TIMES
IMS SIG A
IMS SIG B
LEFT BACK-UP LAMP
LT GRN WIRE
MIRRORS SYSTEM
POWERTRAIN CONTROL MODULE (PCM) (IN AIR CLEANER BOX)
RED WIRE
RIGHT BACK-UP LAMP
RIGHT I/P JUNCTION BLOCK (RIGHT SIDE OF DASH, BEHIND ACCESS PANEL)
SERIAL DATA
TRANSAXLE INTERNAL MODE SWITCH
WHT WIRE
YEL WIRE
Go to component -> Back-up lamps circuit, without police or emergency vehicle option -> BACK-UP LAMPS RELAY
Wiring diagram back-up lamps relay (2 of 2)
AUTOMATIC TRANSAXLE
B/U LAMP FUSE
B/U LMP PWR
BACK-UP LAMPS RELAY
BACK-UP LP RLY CTRL
BLK WIRE
BLK/WHT WIRE
DIC/RKE FUSE
DK BLU WIRE
DK GRN WIRE
EMERGENCY VEHICLE REAR LAMPS FLASHER (UPPER RIGHT FRONT OF REAR COMPT)
HOT AT ALL TIMES
IMS SIG A
IMS SIG B
LEFT BACK-UP LAMP
LT GRN WIRE
NCA WIRE
POWERTRAIN CONTROL MODULE (PCM) (IN AIR CLEANER BOX)
RED WIRE
RIGHT BACK-UP LAMP
RIGHT I/P JUNCTION BLOCK (RIGHT SIDE OF DASH, BEHIND ACCESS PANEL)
SERIAL DATA
TRANSAXLE INTERNAL MODE SWITCH
WHT WIRE
YEL WIRE
Go to component -> Back-up lamps circuit, with police or emergency vehicle option -> BACK-UP LAMPS RELAY
