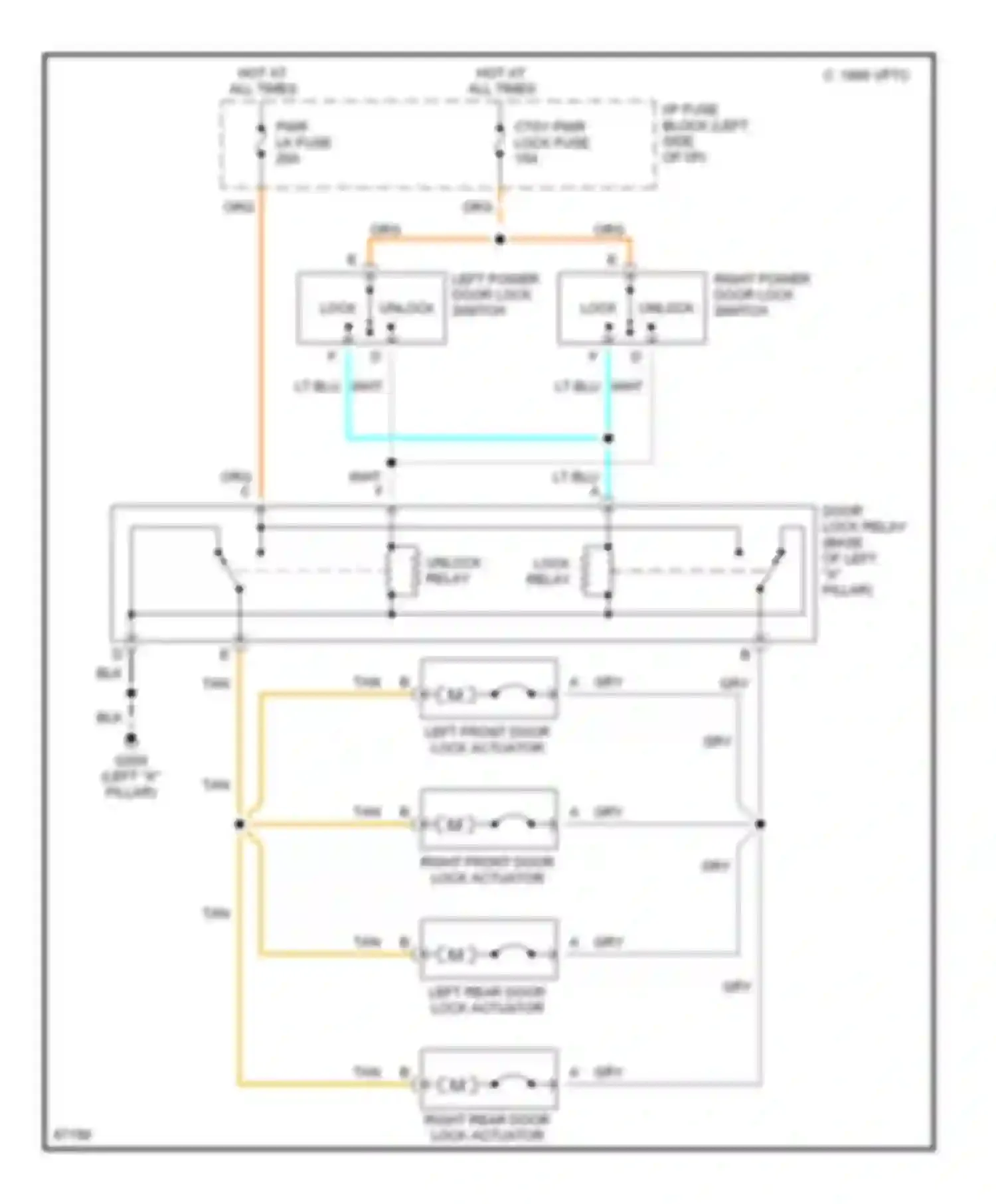

Chevrolet Impala VII (1994-1996) left power door lock switch Wiring diagrams

1995 VFTC BLK WIRE CTSY PWR LOCK FUSE DOOR LOCK RELAY (BASE OF LEFT "A" PILLAR) GRY WIRE HOT AT ALL TIMES I/P FUSE BLOCK (LEFT SIDE OF I/P) LEFT FRONT DOOR LOCK ACTUATOR LEFT POWER DOOR LOCK SWITCH LEFT REAR DOOR LOCK ACTUATOR LOCK UNLOCK LT BLU WIRE ORG/ WIRE PWR LK FUSE RIGHT FRONT DOOR LOCK ACTUATOR RIGHT POWER DOOR LOCK SWITCH RIGHT REAR DOOR LOCK ACTUATOR TAN WIRE UNLOCK LOCK UNLOCK RELAY LOCK RELAY WHT WIRE

1995 VFTC ACT CNTRL B+ SW SIG BLK WIRE BLK/WHT WIRE CHI BODY FUSE CTSY PWR LK FUSE DOOR LOCK RELAY (UNDER LEFT REAR SEAT) EXTERIOR LIGHTS SYSTEM (TURN SIGNAL SWITCH) GROUND GRY WIRE HOT AT ALL TIMES HOT IN RUN OR START I/P FUSE BLOCK (LEFT SIDE OF I/P) IGN IGN LK SIG UNLK SIG BRAKE SIG KEYLESS ENTRY PROGRAMMING CONNECTOR (LEFT SIDE OF REAR COMPT) LEFT FRONT DOOR LOCK ACTUATOR LEFT POWER DOOR LOCK SWITCH LEFT REAR DOOR LOCK ACTUATOR LOCK LOCK RELAY LT BLU WIRE ORG/ WIRE ORG/BLK WIRE PNK WIRE PNK/BLK WIRE PNP SWITCH) POWERTRAIN CONTROL MODULE (LEFT FRONT OF ENGINE COMPT) PARK/ NEUTRAL SIGNAL PROG IN PWR LK FUSE REAR COMPARTMENT LID RELEASE RELAY (IN CONVENIENCE CENTER) REAR COMPARTMENT LID RELEASE SOLENOID REMOTE CONTROL DOOR LOCK RECEIVER (FRONT OF REAR COMPT, ATTACHED TO REAR SHELF) RIGHT FRONT DOOR LOCK ACTUATOR RIGHT POWER DOOR LOCK SWITCH RIGHT REAR DOOR LOCK ACTUATOR RR REL FUSE STOP/HZD FUSE STOPLAMP SWITCH (ATTACHED TO BRAKE PEDAL BRACKET) TAN WIRE TRUNK, TAILGATE, FUEL DOORS SYSTEM UNLOCK UNLOCK RELAY WHT WIRE
