Liftgate release circuit for Chevrolet HHR I (2005-2011)

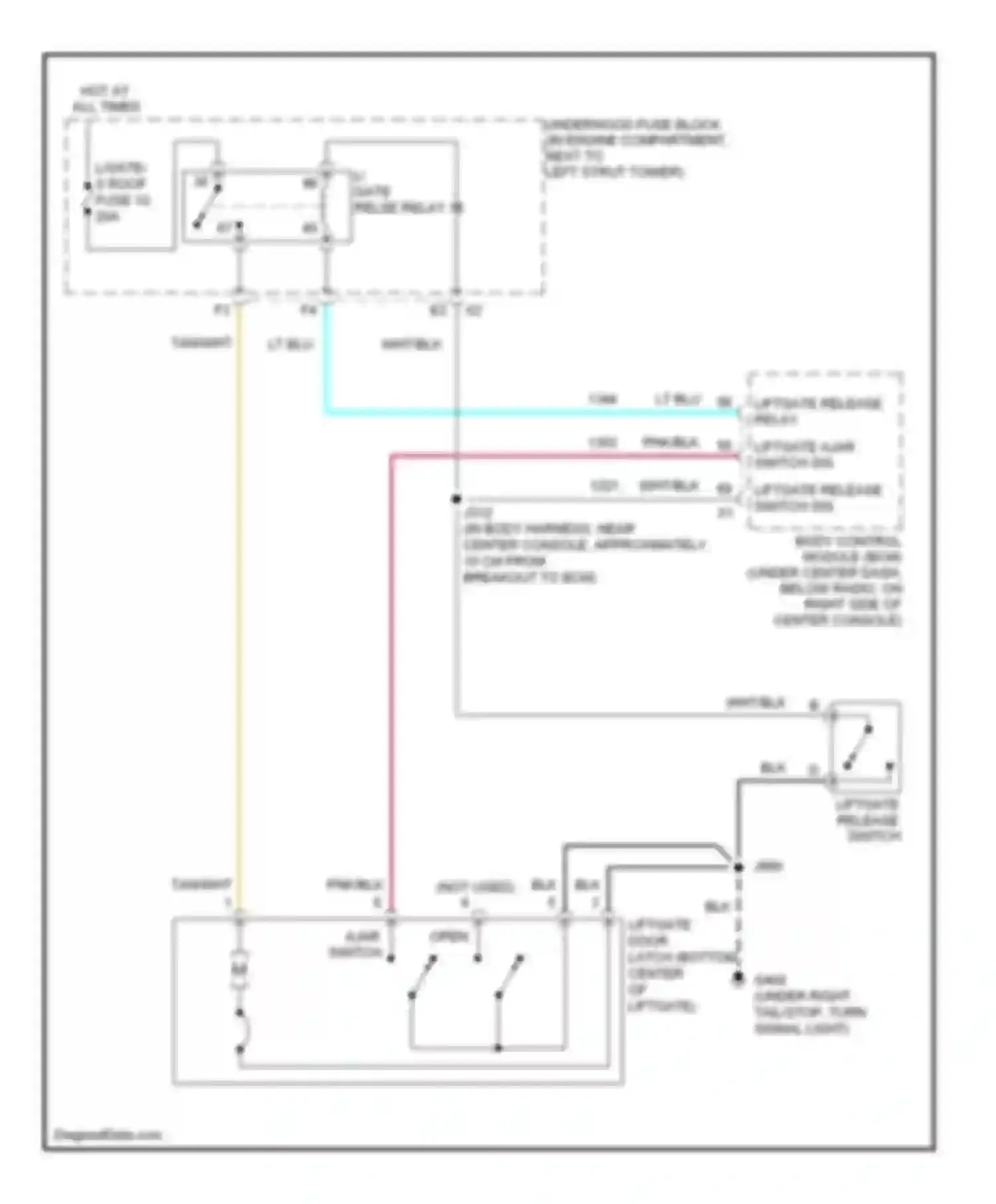

Liftgate release circuit
AJAR SWITCH
BLK WIRE
HOT AT ALL TIMES
L/GATE RELSE RELAY 18
L/GATE/ S ROOF FUSE 10
LIFTGATE AJAR SWITCH SIG
LIFTGATE DOOR LATCH (BOTTOM CENTER OF LIFTGATE)
LIFTGATE RELEASE RELAY
LIFTGATE RELEASE SWITCH
LIFTGATE RELEASE SWITCH SIG
LT BLU WIRE
PNK/BLK WIRE
TAN/WHT WIRE
UNDERHOOD FUSE BLOCK (IN ENGINE COMPARTMENT, NEXT TO LEFT STRUT TOWER)
WHT/BLK WIRE
