Chevrolet Equinox II (2009-2015) right/left select switch Wiring diagram
This page shows the only wiring diagram for the component.right/left select switch, which is found in the car Chevrolet Equinox II (2009-2015). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

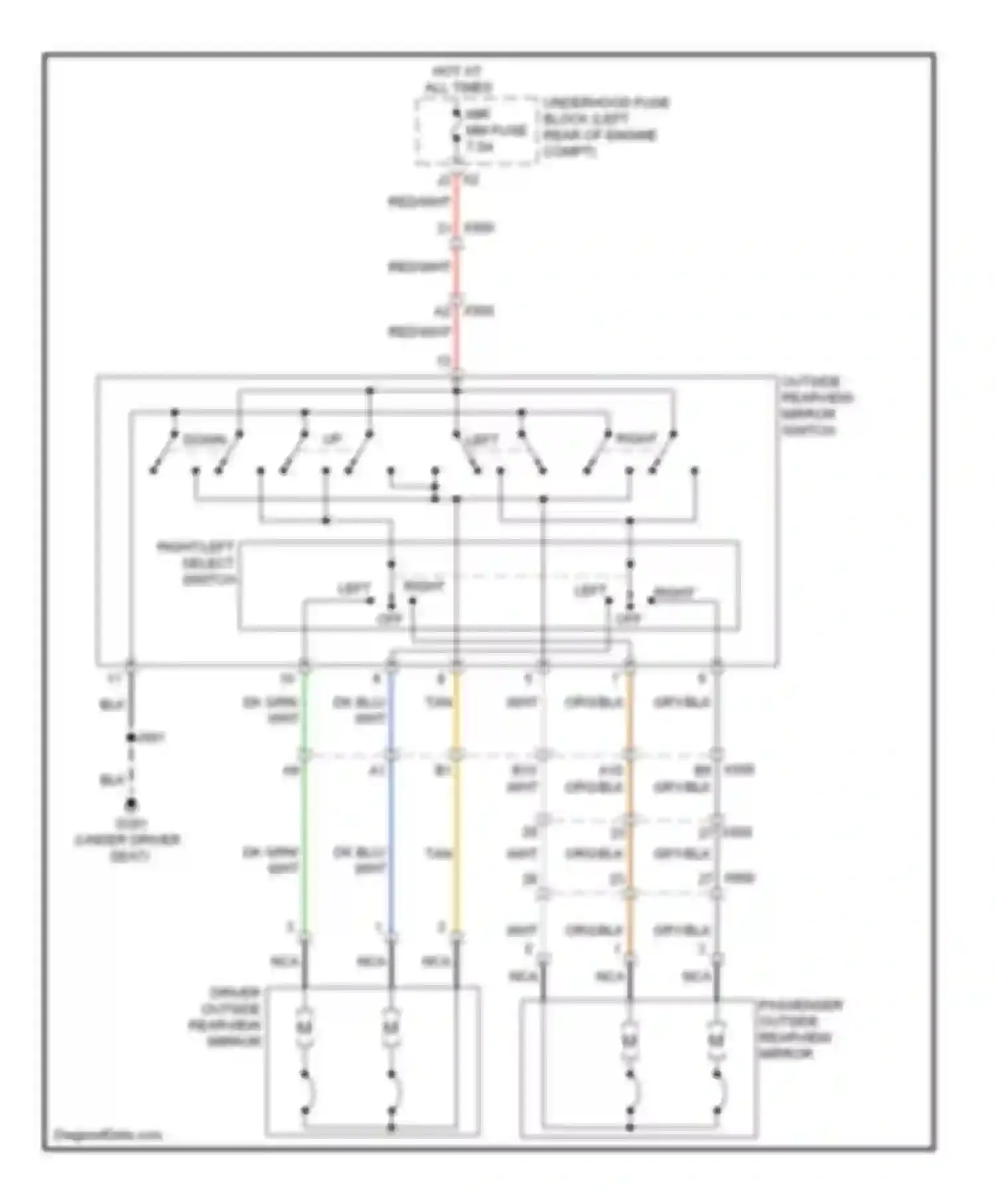

Wiring diagram right/left select switch (1 of 1)
BLK WIRE
DK BLU WIRE
DK GRN WIRE
DOWN
DRIVER OUTSIDE REARVIEW MIRROR
GRY/BLK WIRE
HOT AT ALL TIMES
LEFT
LEFT RIGHT OFF
MIR MM FUSE
NCA WIRE
OFF
ORG/BLK WIRE
OUTSIDE REARVIEW MIRROR SWITCH
PASSENGER OUTSIDE REARVIEW MIRROR
RED/WHT WIRE
RIGHT
RIGHT LEFT
RIGHT/LEFT SELECT SWITCH
TAN WIRE
UNDERHOOD FUSE BLOCK (LEFT REAR OF ENGINE COMPT)
WHT WIRE
Go to component -> Power mirrors circuit -> RIGHT/LEFT SELECT SWITCH
