Chevrolet Equinox I (2004-2009) magnetic field sensor logic Wiring diagram
This page shows the only wiring diagram for the component.magnetic field sensor logic, which is found in the car Chevrolet Equinox I (2004-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

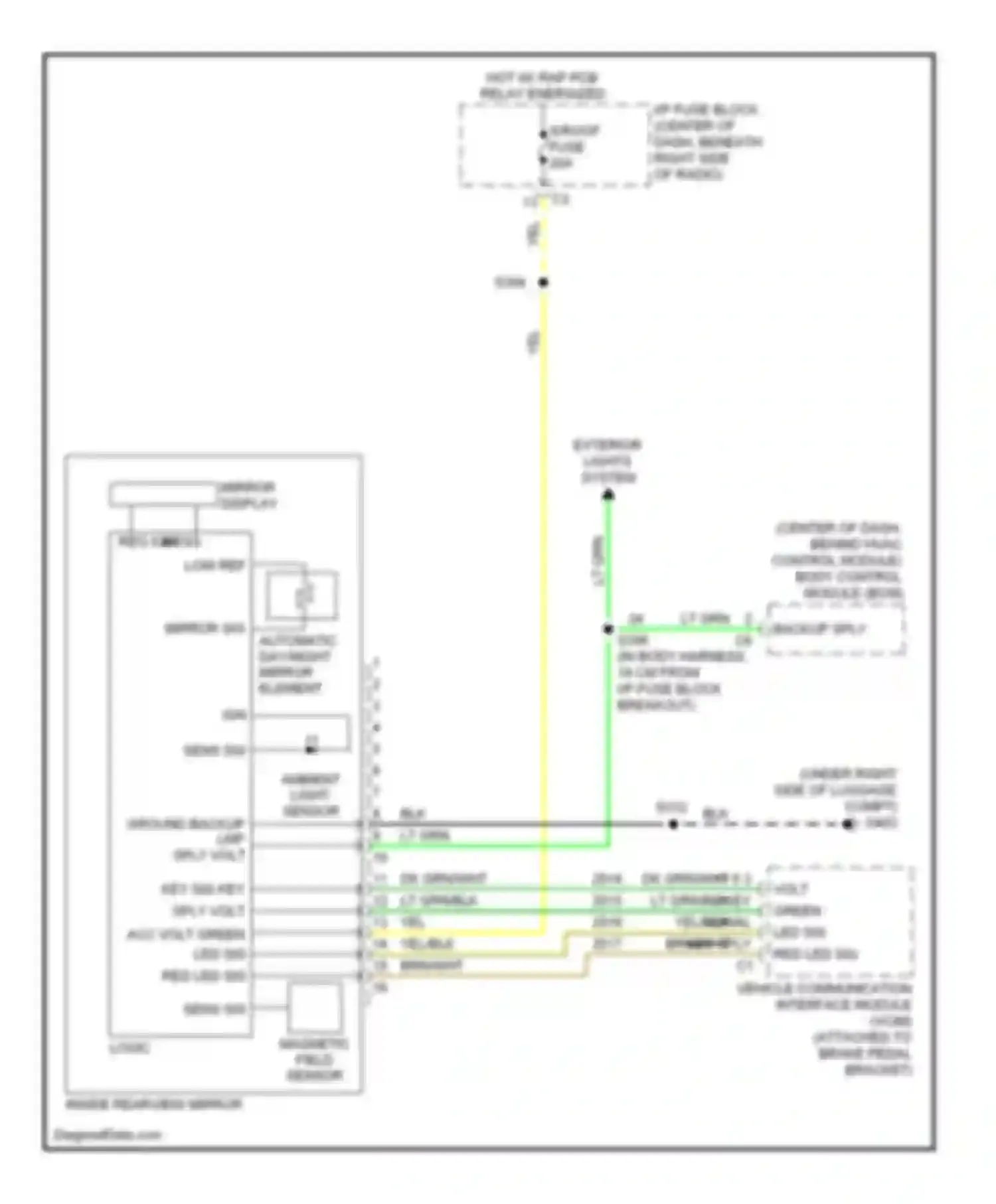

Wiring diagram magnetic field sensor logic (1 of 1)
11 6 3 2 KEY SIGNAL KEY SPLY VOLT GREEN LED SIG
AMBIENT LIGHT SENSOR
BACKUP SPLY
BLK WIRE
BRN/WHT WIRE
DK GRN/WHT WIRE
GROUND BACKUP LMP SPLY VOLT
HOT W/ RAP PCB RELAY ENERGIZED
I/P FUSE BLOCK (CENTER OF DASH, BENEATH RIGHT SIDE OF RADIO)
IGN
INSIDE REARVIEW MIRROR
KEY SIG KEY SPLY VOLT ACC VOLT GREEN LED SIG
LT GRN WIRE
LT GRN/BLK WIRE
MAGNETIC FIELD SENSOR LOGIC
MESS REQ IGN LOW REF
MIRROR DISPLAY
MIRROR SIG AUTOMATIC DAY/NIGHT MIRROR ELEMENT
RED LED SIG WIRE
S/ROOF FUSE
SENS SIG
VEHICLE COMMUNICATION INTERFACE MODULE (VCIM) (ATTACHED TO BRAKE PEDAL BRACKET)
YEL WIRE
YEL/BLK WIRE
Go to component -> Electrochromic mirror circuit -> MAGNETIC FIELD SENSOR LOGIC
