Chevrolet Equinox I (2004-2009) hi spd fan rly ctrl wiring diagram
This page shows the only wiring diagram for the component.hi spd fan rly ctrl, which is found in the car Chevrolet Equinox I (2004-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

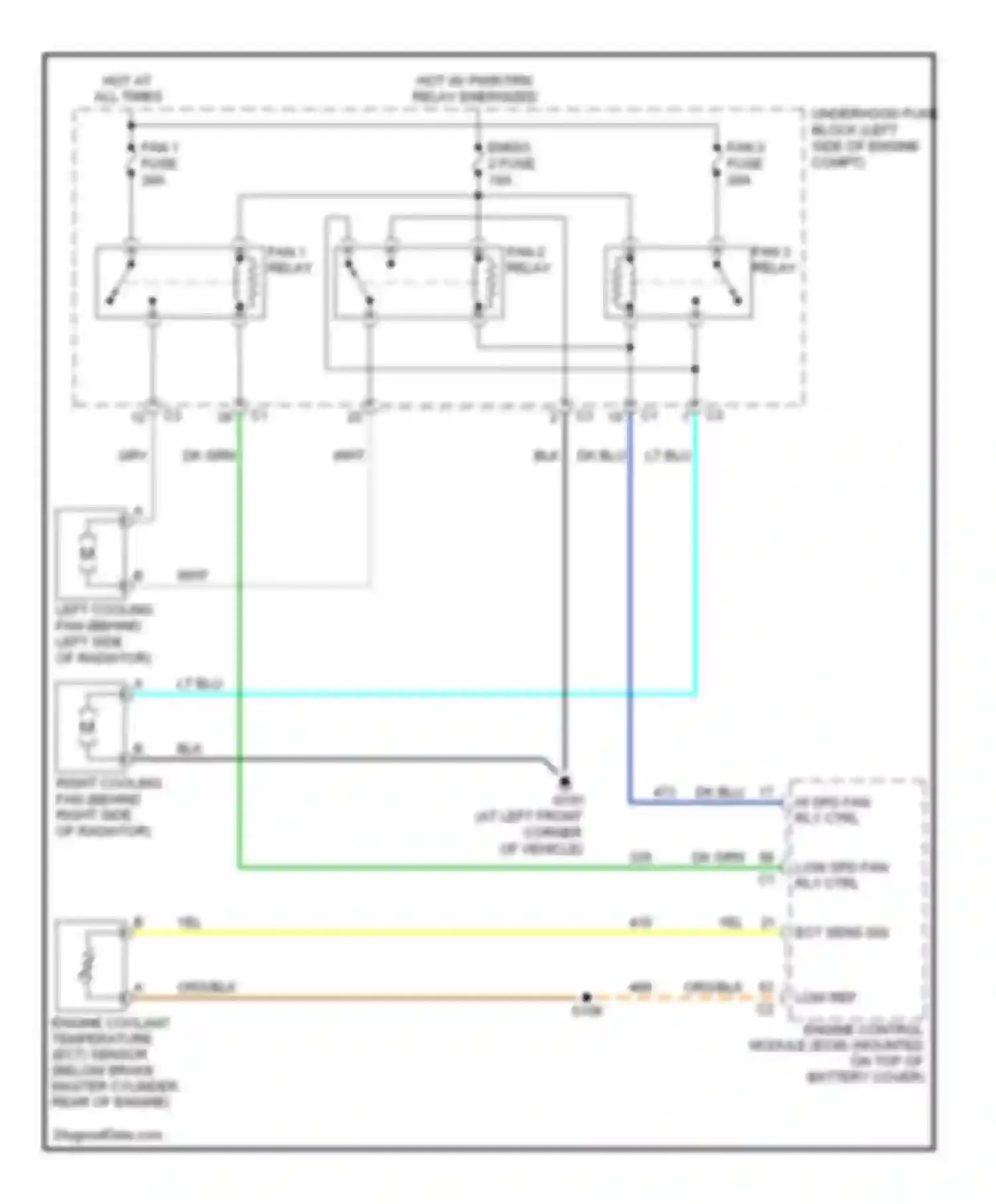

hi spd fan rly ctrl wiring diagram (1 of 1)
BLK WIRE
DK BLU WIRE
DK GRN WIRE
ECT SENS SIG
EMISO 2 FUSE
ENGINE CONTROL MODULE (ECM) (MOUNTED ON TOP OF BATTERY COVER)
FAN 1 FUSE
FAN 1 RELAY
FAN 2 RELAY
FAN 3 RELAY
FAN-2 FUSE
GRY WIRE
HI SPD FAN RLY CTRL
HOT AT ALL TIMES
HOT W/ PWR/TRN RELAY ENERGIZED
LEFT COOLING FAN (BEHIND LEFT SIDE OF RADIATOR)
LOW REF
LOW SPD FAN RLY CTRL
LT BLU WIRE
ORG/BLK WIRE
RIGHT COOLING FAN (BEHIND RIGHT SIDE OF RADIATOR)
UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT)
WHT WIRE
YEL WIRE
