Car Wiring Diagrams for Transmission circuit for Chevrolet Corvette C8 (2020-2024)

ACTUATION VLV CTRL AUTOMATIC TRANSMISSION BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/VIO WIRE BLU WIRE BLU/GRY WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE CLUTCH COOLING VLV CTRL CLUTCH PRESS CTRL EVEN CLUTCH PRESS CTRL ODD CLUTCH PRESS SENS SIG EVEN CLUTCH PRESS SENS SIG ODD ELECT ACTUATION PRESS CTRL ELECT CLUTCH PRESS CTRL GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/RED WIRE GRN/WHT WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/RED WIRE GRY/VIO WIRE IN LOW SPD SIG IN SPD SENS CTRL LOW REF 9 NCA WIRE ORG/ WIRE OUT SPD SENS CTRL OUT SPD SENS GND OUT SPD SIG (PINS: 16 TO 18 NOT USED) 19 POS SIG 1 POS SIG 2 (PINS: 33 TO 37 NOT USED) 38 POS SIG 3 SENS LOW REF 3 POS SIG 4 PRESS SENS SIG PRESS VLV CTRL 1 PRESS VLV CTRL 2 PRESS VLV CTRL 3 PRESS VLV CTRL 4 PRESS VLV CTRL 5 PRIMARY PRK LK MTR DTRL HIGH PRIMARY PRK LK MTR DTRL LOW PRK LK ENGAGE VLV CTRL PRK LK HOLD CTRL PRK LK POS SENS SIG SECONDARY PRK LK MTR DTRL HIGH SECONDARY PRK LK MTR DTRL LOW SENS 12 VOLT REF 1 SENS 12 VOLT REF 2 (PINS: 50 TO 51 NOT USED) 52 SENS 12 VOLT REF 3 SENS 12 VOLT REF 4 (PINS: 53 TO 68 NOT USED) 69 SENS 12 VOLT REF 5 SENS 12 VOLT REF 6 SENS 5 VOLT REF 1 SENS 5 VOLT REF 2 SENS 5 VOLT REF 3 SENS 5 VOLT REF 4 SENS LOW REF (2) SENS LOW REF 1 SENS LOW REF 4 POS SIG 5 SPD IN HIGH SIG (PINS: 44 TO 45 NOT USED) 46 TEMP SENS SIG TEMP SENS SIG 2 (PINS: 12 TO 14 NOT USED) 15 TRANS PRESS SENS SIG TRANSMISSION CONTROL MODULE (FORWARD OF RIGHT WHEEL LINER) TRANSMISSION CONTROL SOLENOID VALVE 10 TRANSMISSION CONTROL SOLENOID VALVE 12 TRANSMISSION CONTROL SOLENOID VALVE 13 TRANSMISSION CONTROL SOLENOID VALVE 14 TRANSMISSION CONTROL SOLENOID VALVE 15 TRANSMISSION CONTROL SOLENOID VALVE 16 VIO WIRE VIO/BLU WIRE VIO/RED WIRE VIO/WHT WIRE WHT WIRE WHT/BLK WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/RED WIRE WHT/VIO WIRE YEL WIRE YEL/BLK WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/RED WIRE YEL/VIO WIRE

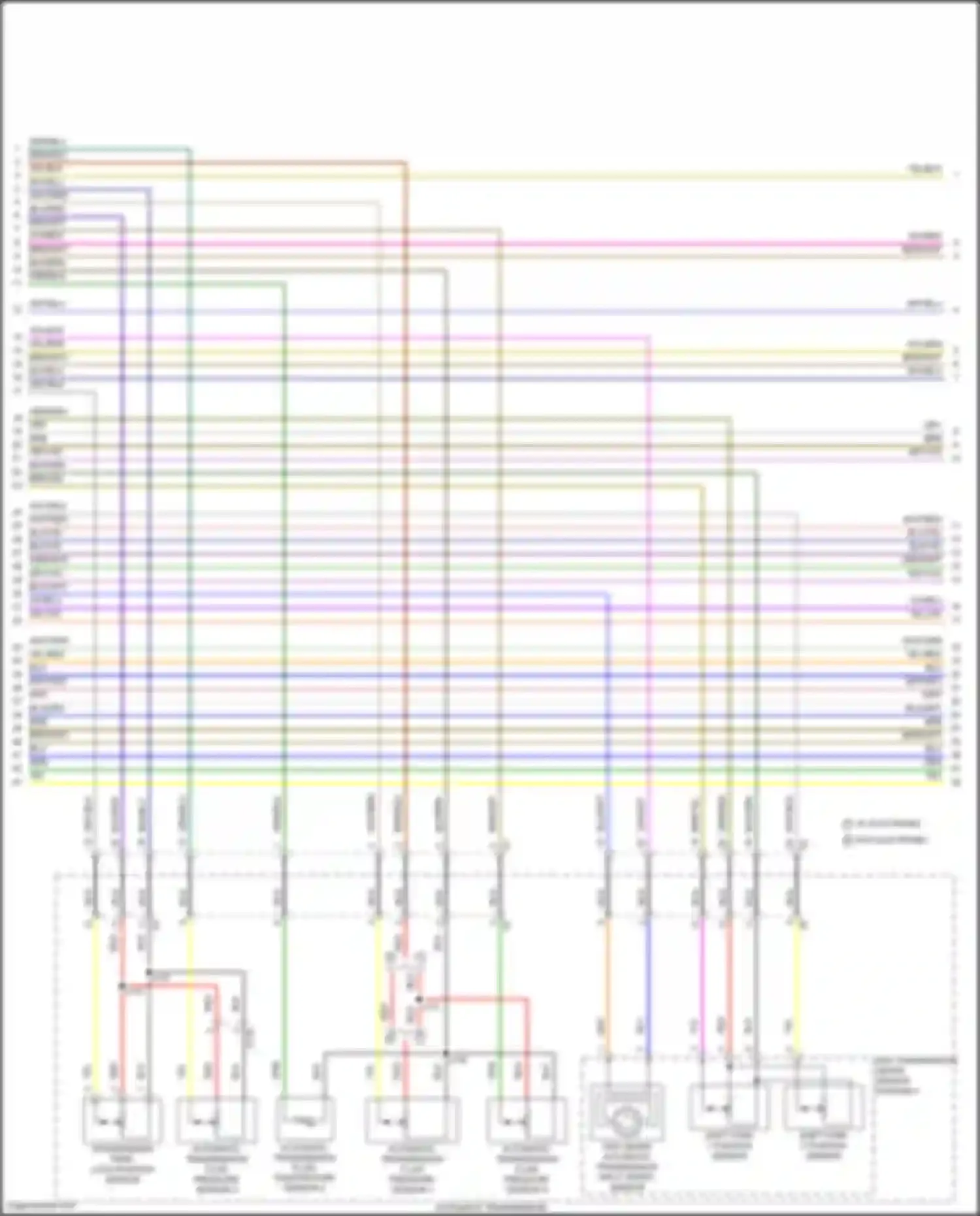

AUTOMATIC TRANSMISSION AUTOMATIC TRANSMISSION FLUID PRESSURE SENSOR 1 AUTOMATIC TRANSMISSION FLUID PRESSURE SENSOR 2 AUTOMATIC TRANSMISSION FLUID PRESSURE SENSOR 4 AUTOMATIC TRANSMISSION FLUID TEMPERATURE SENSOR 2 BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/VIO WIRE BLU WIRE BLU/GRY WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/RED WIRE GRN/WHT WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/RED WIRE GRY/VIO WIRE NCA WIRE ODD GEARS AUTOMATIC TRANSMISSION INPUT SPEED SENSOR ODD TRANSMISSION GEARS SENSOR ASSEMBLY ORG/ WIRE RED WIRE SHIFT FORK 1 POSITION SENSOR SHIFT FORK 2 POSITION SENSOR TRANSMISSION PARK LOCK POSITION SENSOR VIO WIRE VIO/BLU WIRE VIO/RED WIRE VIO/WHT WIRE W/ ELECTRONIC W/O ELECTRONIC WHT WIRE WHT/BLK WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE YEL/BRN WIRE YEL/RED WIRE YEL/VIO WIRE

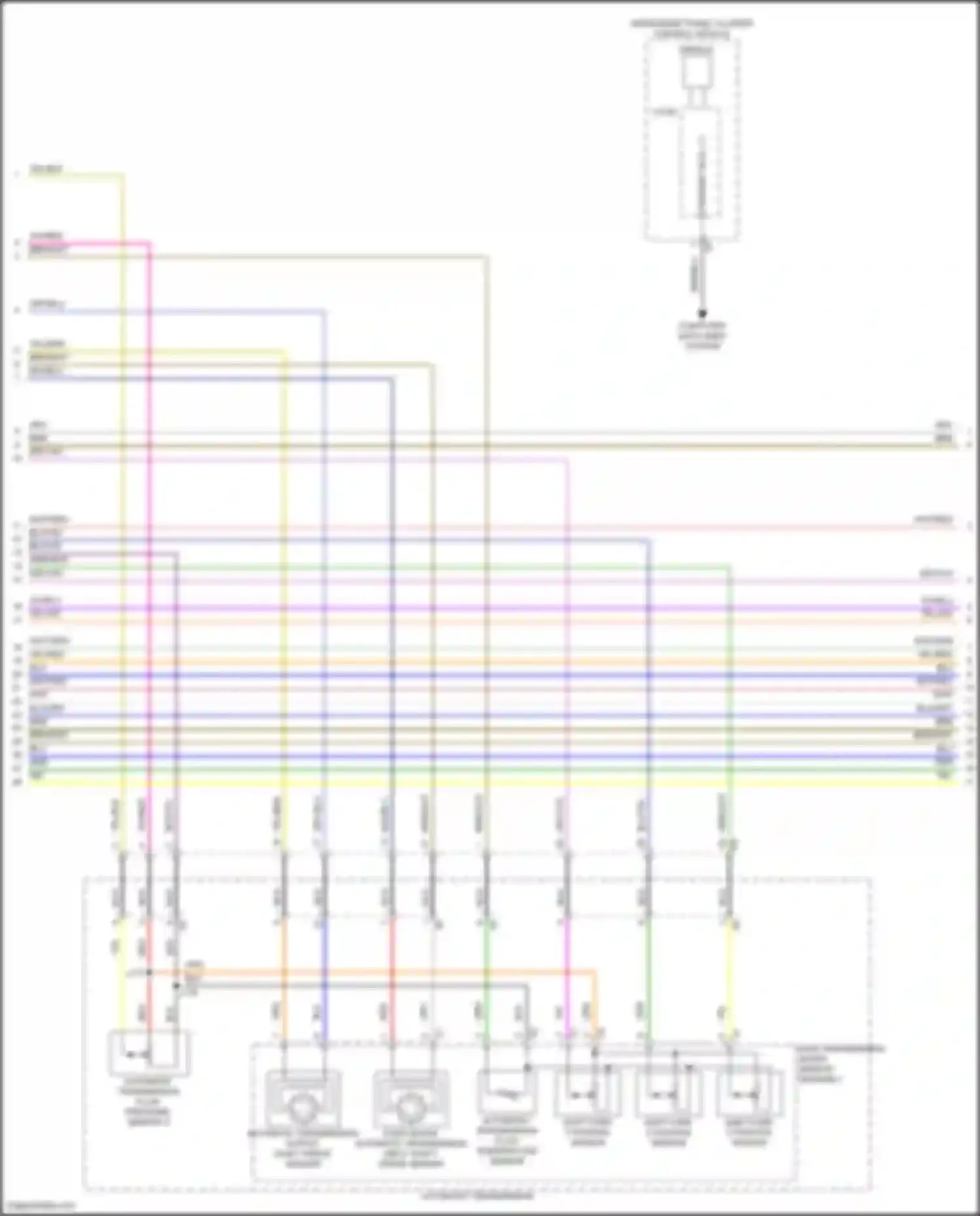

AUTOMATIC TRANSMISSION AUTOMATIC TRANSMISSION FLUID PRESSURE SENSOR 3 AUTOMATIC TRANSMISSION FLUID TEMPERATURE SENSOR AUTOMATIC TRANSMISSION OUTPUT SHAFT SPEED SENSOR BLK WIRE BLK/BLU WIRE BLK/VIO WIRE BLU WIRE BLU/GRY WIRE BLU/YEL WIRE BRN WIRE BRN/BLU WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM DISPLAY ETHERNET BUS 7 (-) EVEN GEARS AUTOMATIC TRANSMISSION INPUT SHAFT SPEED SENSOR EVEN TRANSMISSION GEARS SENSOR ASSEMBLY GRN WIRE GRN/WHT WIRE GRY WIRE GRY/BLU WIRE GRY/RED WIRE GRY/VIO WIRE INSTRUMENT PANEL CLUSTER CONTROL MODULE LOGIC NCA WIRE ORG/ WIRE RED WIRE SHIFT FORK 3 POSITION SENSOR SHIFT FORK 4 POSITION SENSOR SHIFT FORK 5 POSITION SENSOR VIO WIRE VIO/BLU WIRE VIO/RED WIRE WHT WIRE WHT/GRN WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE YEL/BRN WIRE YEL/RED WIRE YEL/VIO WIRE

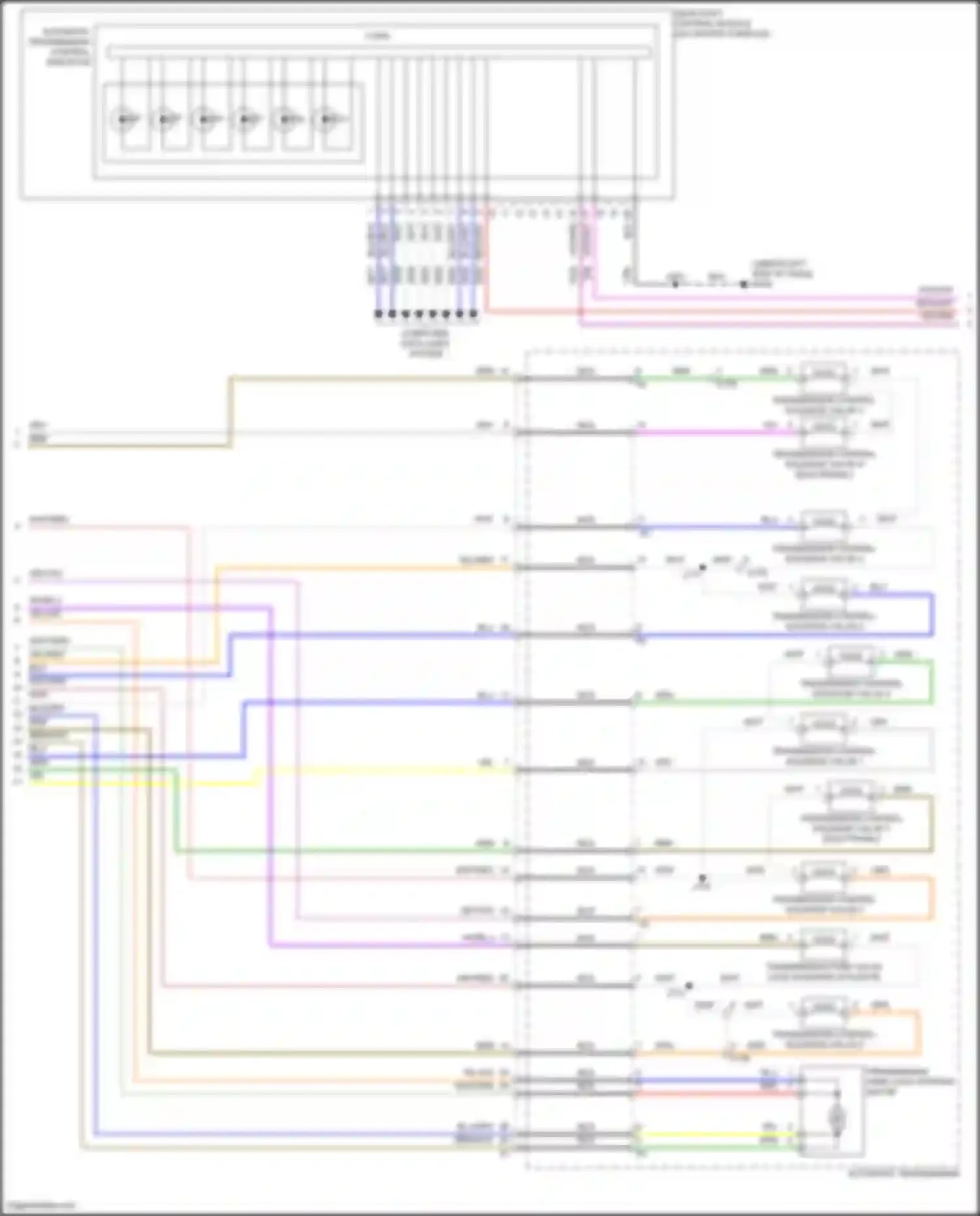

AUTOMATIC TRANSMISSION AUTOMATIC TRANSMISSION CONTROL INDICATOR BLK WIRE BLU WIRE BLU/BLK WIRE BLU/GRY WIRE BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM ELECTRONIC GEAR SHIFT CONTROL MODULE GRN WIRE GRY WIRE GRY/RED WIRE GRY/VIO WIRE ILL LOGIC NCA WIRE ORG/ WIRE RED WIRE RED/GRY WIRE TRANSMISSION CONTROL SOLENOID VALVE 1 TRANSMISSION CONTROL SOLENOID VALVE 2 TRANSMISSION CONTROL SOLENOID VALVE 3 TRANSMISSION CONTROL SOLENOID VALVE 4 TRANSMISSION CONTROL SOLENOID VALVE 5 TRANSMISSION CONTROL SOLENOID VALVE 6 TRANSMISSION CONTROL SOLENOID VALVE 7 TRANSMISSION CONTROL SOLENOID VALVE 8 TRANSMISSION CONTROL SOLENOID VALVE 9 TRANSMISSION PARK LOCK STEPPER MOTOR TRANSMISSION PARK VALVE LOCK SOLENOID ACTUATOR VIO WIRE VIO/BLU WIRE VIO/GRN WIRE VIO/WHT WIRE WHT WIRE WHT/GRN WIRE WHT/RED WIRE YEL WIRE YEL/RED WIRE YEL/VIO WIRE

5.5L 6.2L BLK/BLU WIRE BLK/GRY WIRE BLK/WHT WIRE BLU/GRY WIRE BLU/YEL WIRE BUS (+2) SER DATA BUS (-) SER DATA CAMSHAFT W 2 LOW REF COMPUTER DATA LINES SYSTEM CRANKSHAFT POS SENS REPLICATED SIG ENGINE CONTROL MODULE ENGINE CONTROLS SYSTEM GRN/VIO WIRE HOT AT ALL TIMES HOT W/ IGNITION MAIN RELAY ENERGIZED INSTRUMENT PANEL WIRING HARNESS JUNCTION BLOCK LEFT AUTOMATIC TRANSMISSION MANUAL SHIFT AUXILIARY POSITION SWITCH LIN BUS 1 POS SENS SIG PWR MODULE WAKEUP SIG REAR BODY WIRING HARNESS JUNCTION BLOCK RED/GRY WIRE RIGHT AUTOMATIC TRANSMISSION MANUAL SHIFT AUXILIARY POSITION SWITCH RUN/CRANK IGN 1 VOLT 2 SIG GROUND STEERING WHEEL AIR BAG COIL TRANS TAP DOWN SW SIG TRANS TAP UP SW LOW REF TRANS TAP UP SW SIG TRANSMISSION CONTROL MODULE (FORWARD OF RIGHT WHEEL LINER) VIO/BLU WIRE VIO/GRN WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE YEL/BLU WIRE
