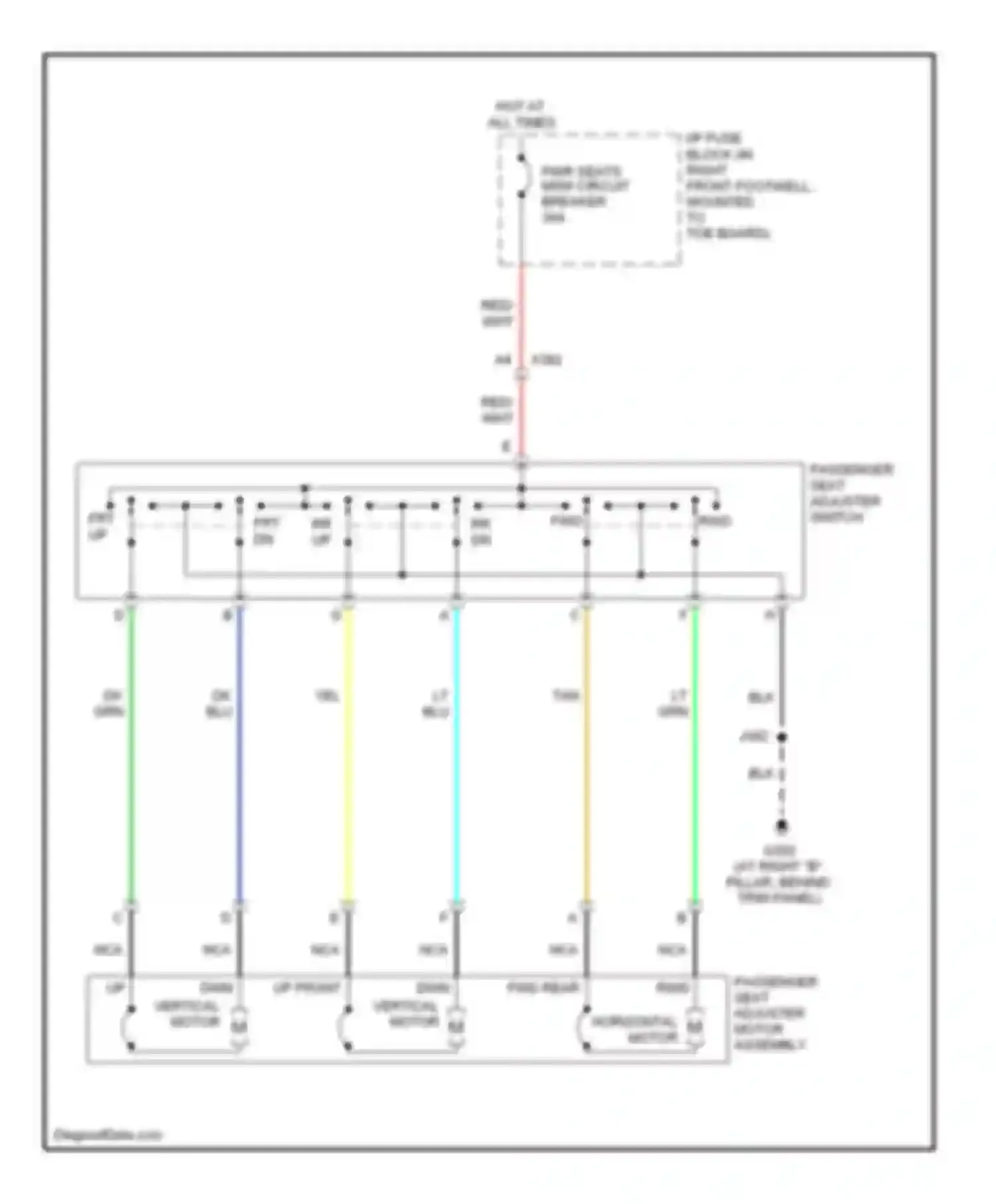

Car Wiring Diagrams for Passenger power seat circuit for Chevrolet Corvette C6 (2004-2014)

BLK WIRE BLU WIRE DWN FWD REAR VERTICAL MOTOR DWN UP FRONT VERTICAL MOTOR FRT DN RR UP FRT UP FWD RR DN GRN WIRE HORIZONTAL MOTOR HOT AT ALL TIMES I/P FUSE BLOCK (IN RIGHT FRONT FOOTWELL, MOUNTED TO TOE BOARD) NCA WIRE PASSENGER SEAT ADJUSTER MOTOR ASSEMBLY RWD PASSENGER SEAT ADJUSTER SWITCH PWR SEATS MSM CIRCUIT BREAKER RED WIRE RWD TAN WIRE WHT WIRE YEL WIRE
