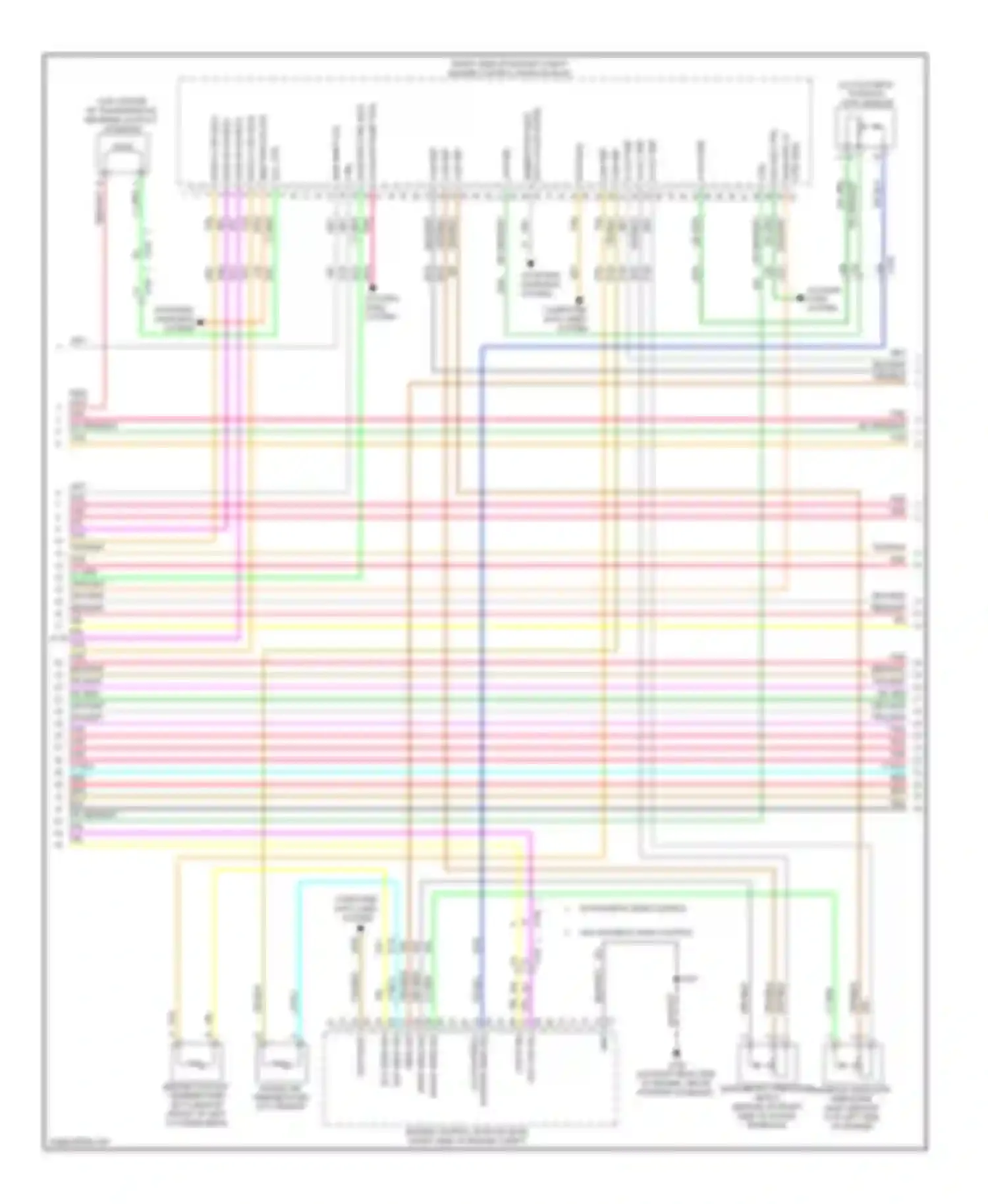

Chevrolet Corvette C6 (2004-2014) boost sens sig Wiring diagram

5 VOLT REF BARO SENS SIG BAROMETRIC PRESSURE (BARO) SENSOR (ON RIGHT SIDE OF INTAKE MANIFOLD) BLK WIRE BLK/WHT WIRE BOOST SENS SIG BRN WIRE BRN/WHT WIRE CLUTCH PEDAL CLUTCH PEDAL POSITION (CPP) SENSOR COMPUTER DATA LINES SYSTEM COOLANT PUMP CTRL COOLING FANS SYSTEM CTRL DATA BUS - DK BLU WIRE DK GRN WIRE DK GRN/WHT WIRE DUTY CYCLE SIGNAL ECT SENS SIG ENGINE CONTROL MODULE (ECM) (RIGHT SIDE OF ENGINE COMPT) ENGINE COOLANT TEMPERATURE (ECT) SENSOR (FRONT OF LEFT CYLINDER HEAD) FAN SPD CTRL GEN TURN ON SIG GENERATOR FIELD GRY WIRE GRY/BLK WIRE GRY/WHT WIRE INTAKE AIR TEMPERATURE (IAT) SENSOR LOW REF LT BLU WIRE LT GRN WIRE MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR (TOP LEFT SIDE OF ENGINE) MAT SENS SIG ORG/ WIRE ORG/BLK WIRE ORG/WHT WIRE PNK PNK PNK WIRE PNK PNK PPL WIRE PNK PNK WIRE PNK WIRE POSITION SENS SIG PPL PPL 18 19 PPL/WHT WIRE RED WIRE RED/WHT WIRE SENS SIG SKIP SHIFT SOL SOL CTRL STARTING/ CHARGING SYSTEM TAN WIRE TAN/BLK WIRE TAN/WHT WIRE VSS HI SIG VSS LOW SIG W/ MAGNETIC RIDE CONTROL W/O MAGNETIC RIDE CONTROL WHT WIRE WHT/BLK WIRE YEL WIRE YEL/BLK WIRE
