Chevrolet Corvette C5 (1997-2004) rtd fuse 51 Wiring diagrams
This page contains all the electrical diagrams for the component. rtd fuse 51, in which he is found in the car Chevrolet Corvette C5 (1997-2004). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

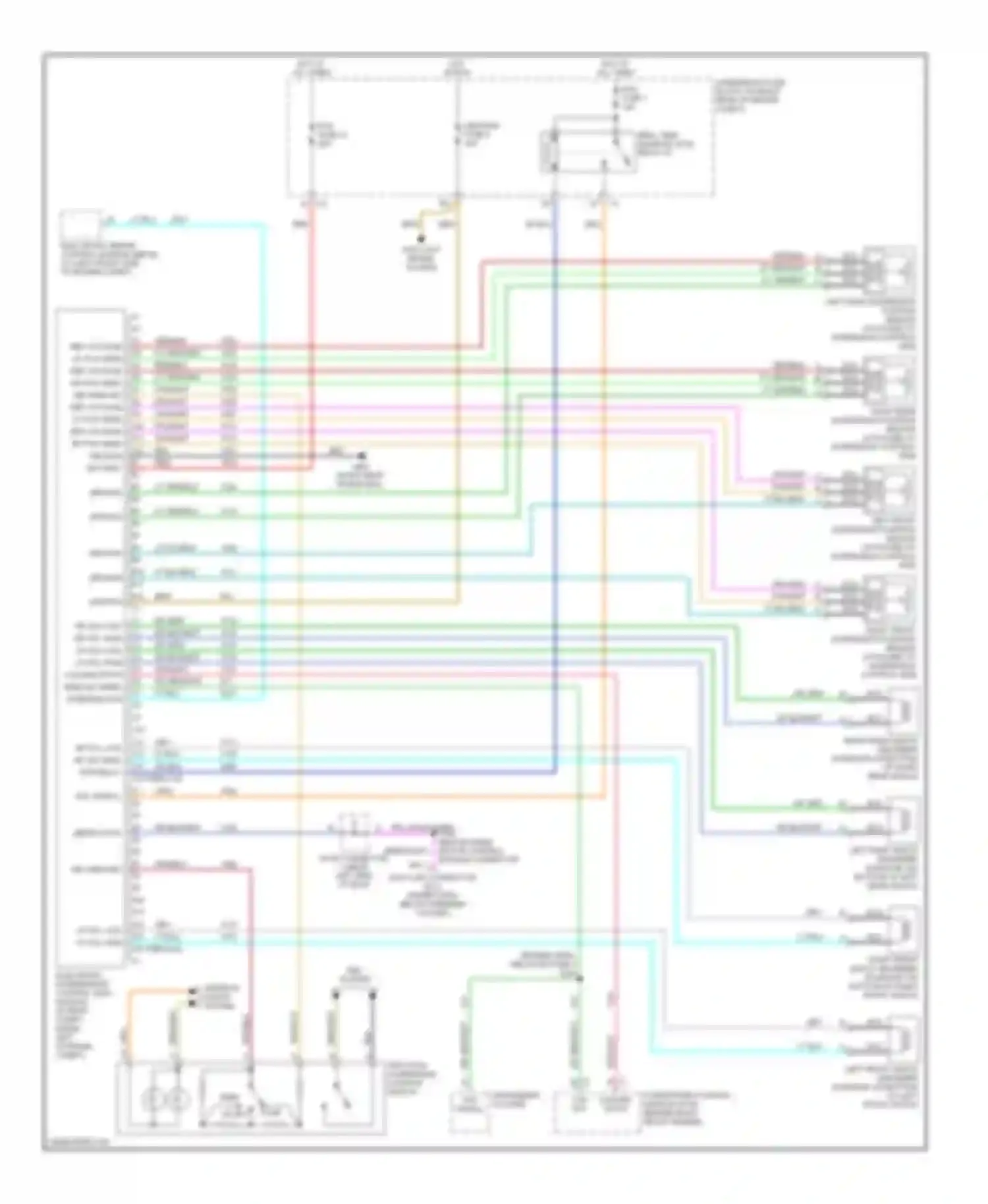

rtd fuse 51 wiring diagram (1 of 2)
ABS SYSTEM
ABSTRNS FUSE 5
ANTI-LOCK BRAKE SYSTEM
BLK WIRE
BRN WIRE
BRN/WHT WIRE
DATA LINK CONNECTOR (DLC) (UNDER DASH, BELOW STEERING COLUMN)
DK BLU WIRE
DK BLU/WHT WIRE
DK GRN WIRE
DK GRN/WHT WIRE
ELECTRONIC BRAKE CONTROL MODULE (EBCM) (AT LEFT FRONT SIDE OF ENGINE COMPT)
GROUND
GRY WIRE
HOT AT ALL TIMES
HOT IN RUN
IGNITION
INSTRUMENT CLUSTER VSS SIGNAL
LEFT FRONT SHOCK ABSORBER SOLENOID (ON BOTTOM OF LEFT FRONT SHOCK)
LEFT FRONT SUSPENSION POSITION SENSOR (ATTACHED TO SUSPENSION CONTROL ARM)
LEFT REAR SHOCK ABSORBER SOLENOID (ON BOTTOM OF LEFT REAR SHOCK)
LEFT REAR SUSPENSION POSITION SENSOR (ATTACHED TO SUSPENSION CONTROL ARM)
LF SOL LOW LF SOL HIGH
LT BLU WIRE
LT BLU/BLK WIRE
LT GRN/BLK WIRE
LT GRN/WHT WIRE
NCA WIRE
ORG/ WIRE
PERF
PNK/BLK WIRE
PNK/WHT WIRE
PPL (DASH HARN, NEAR BLOWER MOTOR CONTROL MODULE CONNECTOR BREAKOUT) PPL 2
PPL/WHT WIRE
REAL TIME DAMPING (RTD) RELAY 41
RED WIRE
RED/BLK WIRE
RF SOL LOW RF SOL HIGH RTD RELAY
RIGHT FRONT SHOCK ABSORBER SOLENOID (ON BOTTOM OF RIGHT FRONT SHOCK)
RIGHT FRONT SUSPENSION POSITION SENSOR (ATTACHED TO SUSPENSION CONTROL ARM)
RIGHT REAR SHOCK ABSORBER SOLENOID (ON BOTTOM OF RIGHT REAR SHOCK)
RIGHT REAR SUSPENSION POSITION SENSOR (ATTACHED TO SUSPENSION CONTROL ARM)
RTD FUSE 51
RTD FUSE 7
SEL RIDE REF
SERIAL DATA
SOL SUPPLY
SOLID
SPORT
STAR CONNECTOR 1 (NEAR LEFT SIDE OF BCM)
STATE
TAN/WHT WIRE
TOUR
TRACTION/ SUSPENSION CONTROL SWITCH
UNDERHOOD FUSE BLOCK (ON RIGHT REAR OF ENGINE COMPT)
Go to component -> Electronic suspension circuit -> RTD FUSE 51

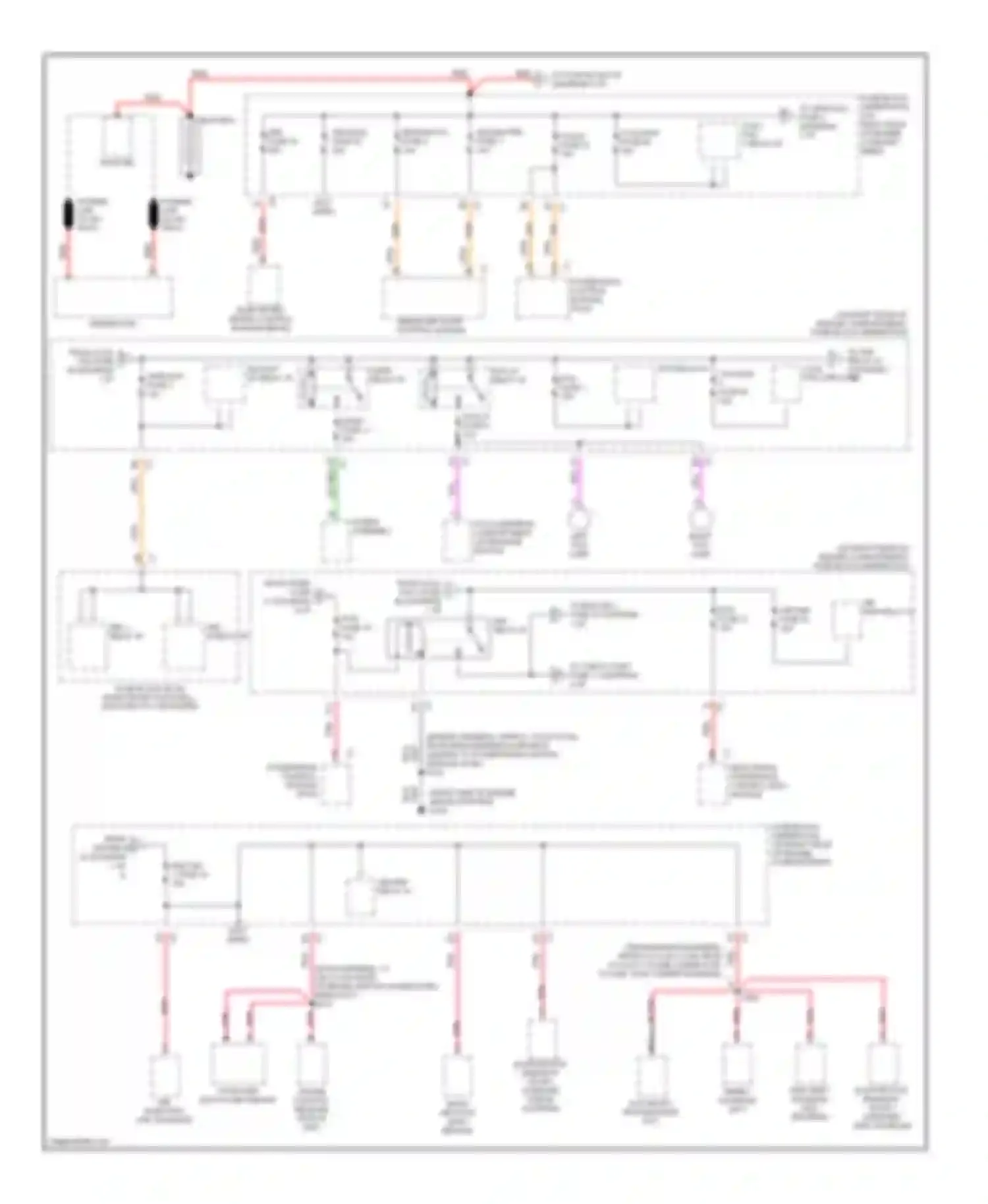

rtd fuse 51 wiring diagram (2 of 2)
ABS ELEC FUSE 53
ABS FUSE 52
AIR PMP FUSE 50
AIR PMP RELAY 33
APROACH FUSE 2
AUTOMATIC TRANSMISSION (A/T)
BACKUP LP RELAY 38
BATTERY
BLK/ WHT WIRE
COOL FAN 1 RELAY 45
COOL FAN 2 RELAY 43
COOLFAN 2 FUSE 46
CRUISE CONTROL RELEASE SWITCH (M/T)
DK GRN WIRE
DRL L RELAY 40
DRL R RELAY 38
ELECTRONIC BRAKE CONTROL MODULE (EBCM)
ELECTRONIC SUSPENSION CONTROL (ESC) MODULE
ENG IGN 1 FUSE 19
EVAPORATIVE EMISSION (EVAP) CANISTER PURGE SOLENOID
EVAPORATIVE EMISSION (EVAP) CANISTER VENT SOLENOID
FOG LAMP/REAR COMPARTMENT LID RELEASE SWITCH
FOG LP FUSE 6
FOG LP RELAY 39
FROM COOL FAN 2 FUSE 46 (DIAGRAM 1 OF 4)
FROM COOL FAN FUSE 49 (DIAGRAM 1 OF 4)
FROM F/PMP FUSE 13 (DIAGRAM 4 OF 4)
FROM IGN RELAY 42 (DIAGRAM 1 OF 4)
FUSE 49
FUSE BLOCK- UNDERHOOD (ON RIGHT REAR OF ENGINE COMPART- MENT)
FUSE BLOCK- UNDERHOOD (ON RIGHT REAR OF ENGINE COMPARTMENT)
FUSE BLOCK-I/P (IN RIGHT FRONT FOOTWELL, MOUNTED TO TOE BOARD)
FUSIBLE LINK (10 GA-RUST)
FUSIBLE LINK (20 GA-GRAY)
GENERATOR
HDLPMOTLH FUSE 4
HDLPMOTRH FUSE 3
HEADLAMP DOOR CONTROL MODULE
HORN FUSE 11
HORN RELAY 36
HORNS ASSEMBLY
IGN RELAY 42
LEFT FOG LAMP
MASS AIR FLOW (MAF SENSOR)
NCA WIRE
ORG/ WIRE
PCM B FUSE 23
PCM FUSE 16
PNK WIRE
POWERTRAIN CONTROL MODULE (PCM)
PPL
RED WIRE
RIGHT FOG LAMP
RTD FUSE 51
RTD FUSE 7
RTD RELAY 41
SKIP SHIFT SOLENOID (M/T) REVERSE INHIBIT SOLENOID (M/T)
STARTER
STOPLAMP SWITCH SECONDARY AIR INJECTION (AIR) SOLENOID
TO APROACH FUSE 2 (DIAGRAM 1 OF 4)
TO ENG IGN 1 FUSE 19 (DIAGRAM 1 OF 4)
TO FUSE BLOCK-I/P (DIAGRAM 2 OF 4)
TO IGN RELAY 42 (DIAGRAM 1 OF 4)
TO THROT-CONT FUSE 17 (DIAGRAM 4 OF 4)
WHT/ BLK WIRE
Go to component -> Power distribution circuit (1 of 4) -> RTD FUSE 51
