Chevrolet Corvette C5 (1997-2004) radio radio on output Wiring diagram
This page shows the only wiring diagram for the component.radio radio on output, which is found in the car Chevrolet Corvette C5 (1997-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

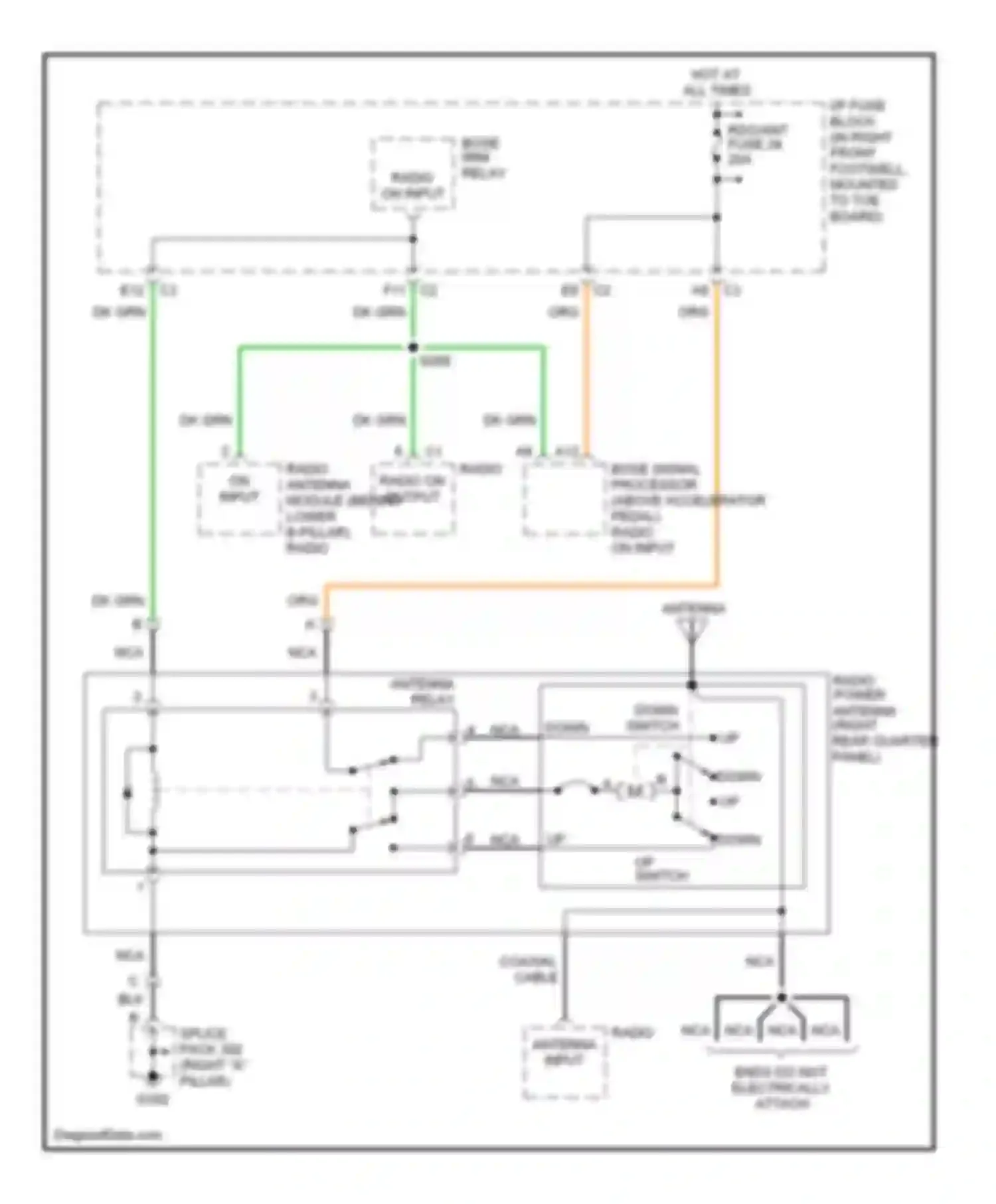

Wiring diagram radio radio on output (1 of 1)
ANTENNA
ANTENNA RELAY
BLK WIRE
BOSE MINI RELAY
BOSE SIGNAL PROCESSOR (ABOVE ACCELERATOR PEDAL) RADIO ON INPUT
COAXIAL CABLE
DK GRN WIRE
DOWN
DOWN SWITCH
DOWN UP
DOWN UP SWITCH
ENDS DO NOT ELECTRICALLY ATTACH
HOT AT ALL TIMES
I/P FUSE BLOCK (IN RIGHT FRONT FOOTWELL, MOUNTED TO TOE BOARD)
NCA WIRE
ORG/ WIRE
RADIO ANTENNA INPUT
RADIO ANTENNA MODULE (BEHIND LOWER B-PILLAR) RADIO ON INPUT
RADIO ON INPUT
RADIO POWER ANTENNA (RIGHT REAR QUARTER PANEL)
RADIO RADIO ON OUTPUT
RDO/ANT FUSE 24
SPLICE PACK 302 (RIGHT "A" PILLAR)
Go to component -> Power antenna circuit -> RADIO RADIO ON OUTPUT
