Chevrolet Corvette C5 (1997-2004) headlamps on input Wiring diagram
This page shows the only wiring diagram for the component.headlamps on input, which is found in the car Chevrolet Corvette C5 (1997-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

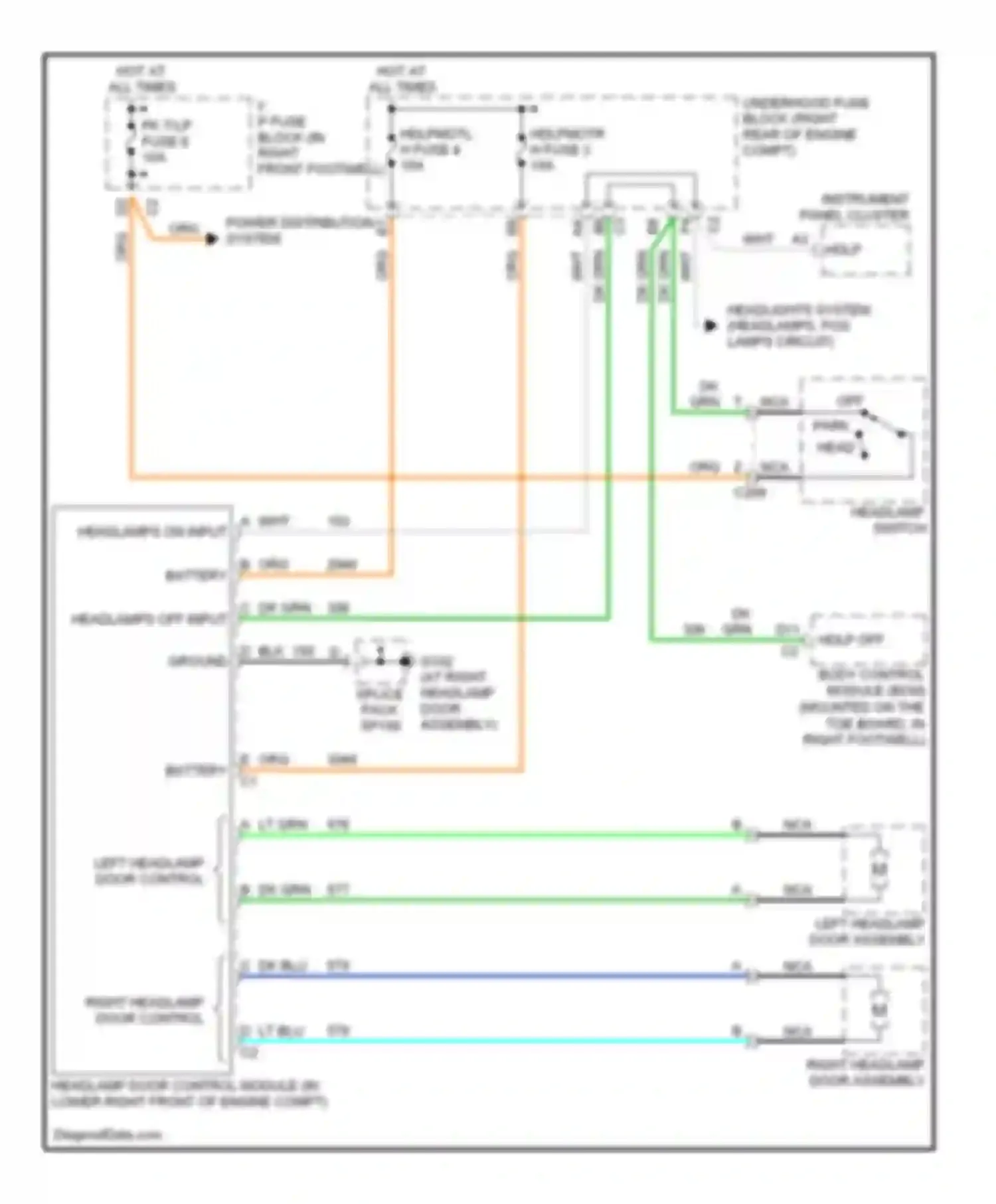

Wiring diagram headlamps on input (1 of 1)
BATTERY
BLK WIRE
BODY CONTROL MODULE (BCM)
DK BLU WIRE
DK GRN WIRE
GRN WIRE
GROUND
HDLP OFF IN
HDLP ON
HDLPMOTL H FUSE 4
HDLPMOTR H FUSE 3
HEADLAMP DOOR CONTROL MODULE (IN LOWER RIGHT FRONT OF ENGINE COMPT)
HEADLAMP SWITCH
HEADLAMPS OFF INPUT
HEADLAMPS ON INPUT
HEADLIGHTS SYSTEM (HEADLAMPS, FOG LAMPS CIRCUIT)
HOT AT ALL TIMES
I/P FUSE BLOCK (IN RIGHT FRONT FOOTWELL,
INSTRUMENT PANEL CLUSTER
LEFT HEADLAMP DOOR ASSEMBLY
LEFT HEADLAMP DOOR CONTROL
LT BLU WIRE
LT GRN WIRE
NCA WIRE
OFF PARK HEAD
ORG/ WIRE
PK T/LP FUSE 6
POWER DISTRIBUTION SYSTEM
RIGHT HEADLAMP DOOR ASSEMBLY
RIGHT HEADLAMP DOOR CONTROL
UNDERHOOD FUSE BLOCK (RIGHT REAR OF ENGINE COMPT)
WHT WIRE
Go to component -> Headlamp doors circuit -> HEADLAMPS ON INPUT
