Chevrolet Corvette C4 (1984-1998) hatch ajar input Wiring diagram
This page shows the only wiring diagram for the component.hatch ajar input, which is found in the car Chevrolet Corvette C4 (1984-1998). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

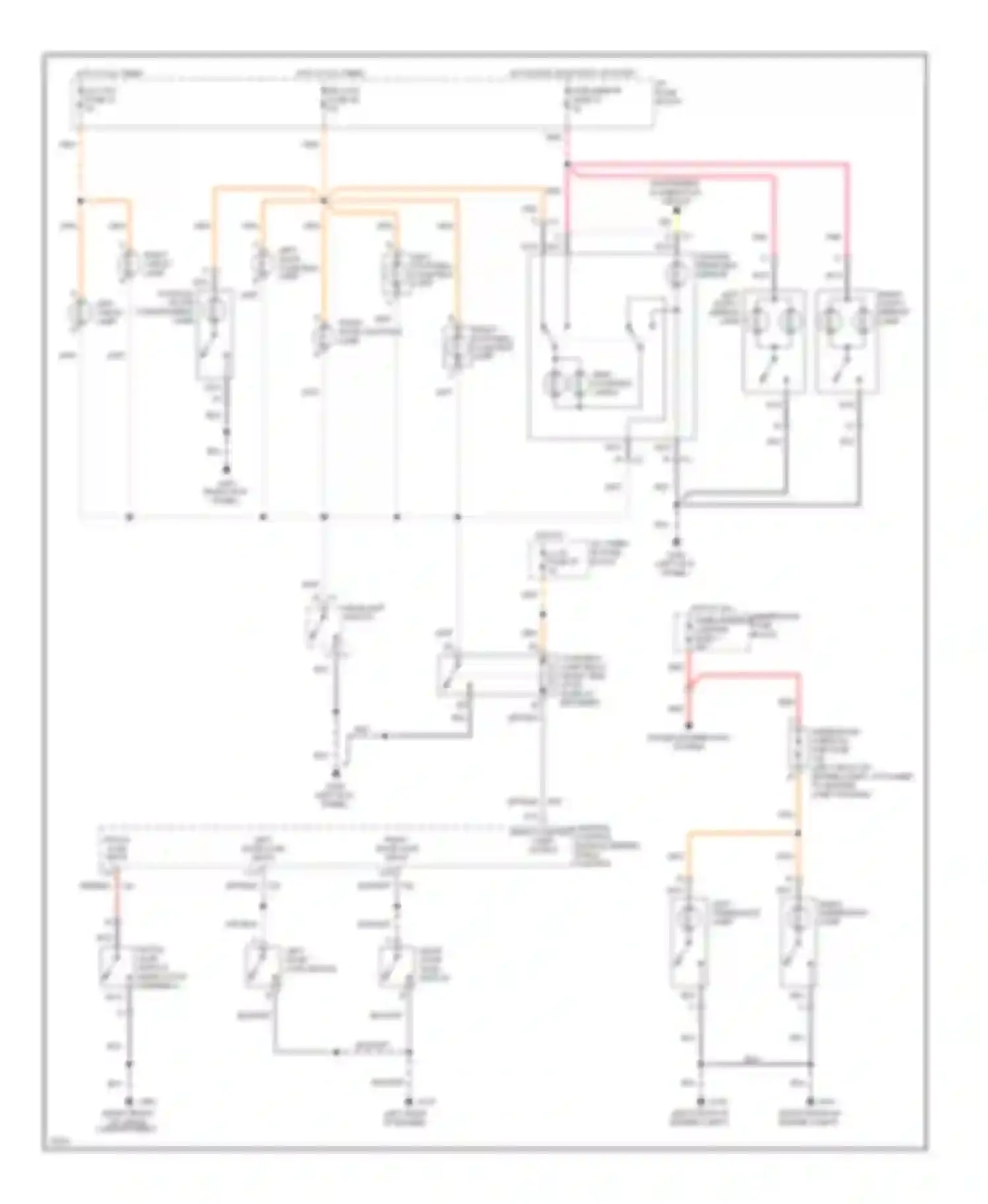

Wiring diagram hatch ajar input (1 of 1)
BLK WIRE
BLK/WHT WIRE
CENTRAL CONTROL MODULE (BEHIND RADIO CONTROL HEAD) COURTESY LAMP OUTPUT
CONSOLE GLOVE COMPARTMENT LAMP
COURTESY LAMP RELAY (RIGHT SIDE OF I/P, IN RELAY RETAINER)
ENGINE COMPT)
GRY/BLK WIRE
HATCH AJAR INPUT
HATCH AJAR SWITCH
HEADLAMP SWITCH
HOT AT ALL TIMES
HOT AT ALL TIMES I/P FUSE BLOCK L.C.D. FUSE 38
HOT AT ALL TIMES INTERIOR LIGHTING FUSE 1
HOT IN RUN, BULB TEST OR START
I/P FUSE BLOCK
INSTRUMENT ILLUMINATION CIRCUIT
LEFT CARGO LAMP
LEFT DOOR AJAR INPUT
LEFT DOOR AJAR SWITCH
LEFT DOOR COURTESY LAMP
LEFT FOOTWELL COURTESY LAMP
LEFT UNDERHOOD LAMP
LEFT VANITY MIRROR LAMP
LH CTSY FUSE 37
LIGHTED REARVIEW MIRROR
MAP/ COURTESY LAMPS
NCA WIRE
ORG/ WIRE
PNK WIRE
POWER DISTRIBUTION SYSTEM
PWR MIRROR FUSE 31
RED WIRE
RED/BLK WIRE
RH CTSY FUSE 36
RIGHT CARGO LAMP
RIGHT DOOR AJAR INPUT
RIGHT DOOR AJAR SWITCH
RIGHT DOOR COURTESY LAMP
RIGHT FOOTWELL COURTESY LAMP
RIGHT UNDERHOOD LAMP
RIGHT VANITY MIRROR LAMP
UNDERHOOD FUSE BLOCK 2
UNDERHOOD LAMPS IN- LINE FUSE
WHT WIRE
YEL WIRE
Go to component -> Courtesy lamps circuit -> HATCH AJAR INPUT
